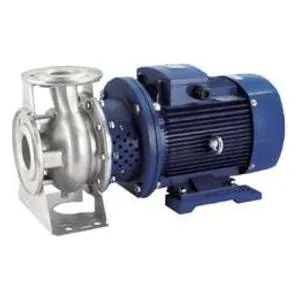

DZA(S) 80-65-125 5.5 kW stainless steel end-suction pump set with three-phase motor, 114 m³/h

DZA(S) 80-65-125 5.5 kW Stainless Steel End-Suction Pump Set, 114 m³/h

SKU KMN-PUMP-0067

A 5.5 kW stainless steel end-suction pump set for irrigation and bulk water transfer, up to 114 m³/h, delivered across South Africa.

R22 808,00

Complete set: stainless steel pump end fitted to a 5.5 kW motor
22.5 m at 36 m³/h, up to 114 m³/h
380 V or 525 V three-phase, by option
Continuous duty on clean or slightly aggressive water

Configuration

Clear

Request Bulk Quote Ask on WhatsApp

Delivered by our own trucks in 1 to 3 days. R550 / R950 / R1,450 by order weight. FREE on orders of R20,000 or more with code KH027. Delivery details

Specifications

Duty point	22.5 m at 36 m³/h (600 L/min)
Flow range	36 to 114 m³/h (600 to 1900 L/min)
Max head / pressure	22.5 m at 36 m³/h, down to 7 m at 114 m³/h
Best operating point	60 m³/h at 18.5 m
Performance points	36 m³/h (600 L/min) at 22.5 m; 39 m³/h (650 L/min) at 22 m; 42 m³/h (700 L/min) at 21.5 m; 48 m³/h (800 L/min) at 20.5 m; 60 m³/h (1000 L/min) at 18.5 m; 72 m³/h (1200 L/min) at 16 m; 90 m³/h (1500 L/min) at 12.5 m; 108 m³/h (1800 L/min) at 8.5 m; 114 m³/h (1900 L/min) at 7 m
Power	5.5 kW (7.5 HP), 2-pole, about 2900 rpm
Voltage / phase	380 V or 525 V three-phase, by option
Inlet / outlet	80 mm suction flange / 65 mm delivery flange
Impeller	125 mm nominal
Material	304 stainless steel casing and impeller
Self-priming	No (end-suction centrifugal, flood the suction)
Duty cycle	Continuous
Fluid compatibility	Clean or slightly aggressive water
Net weight	62 kg
Shipping weight	67 kg
Dimensions	840 x 300 x 400 mm

Description

Overview

The DZA(S) 80-65-125 5.5 kW end-suction pump set delivers 22.5 m of head at 36 m³/h and up to about 114 m³/h at 7 m. It is a flanged centrifugal pump with a 304 stainless steel casing and impeller, supplied fitted to a 5.5 kW (7.5 HP) two-pole electric motor and ready for your pipework. It is built for continuous duty on clean or slightly aggressive water, and Kamano delivers it from Polokwane.

Size 80-65-125 means an 80 mm suction flange, a 65 mm delivery flange and a 125 mm nominal impeller. Add your lift to about 1 m per 10 m of pipe and fittings, then read your flow in the specs table: it works best around 60 m³/h at 18.5 m. Send us your flow, lift and pipe length and we will size it for you.

Key features

Casing and impeller in 304 stainless steel
5.5 kW (7.5 HP) two-pole motor, about 2900 rpm
22.5 m at 36 m³/h, 7 m at 114 m³/h
80 mm suction and 65 mm delivery flanges
Continuous duty, supplied as one set

Options

380 V three-phase motor (code 15070093): R 22,808 VAT incl. For a standard three-phase supply.
525 V three-phase motor (code 15070094): R 22,808 VAT incl. For sites on a 525 V supply, as on many mines.

Either motor needs a three-phase supply and a starter with overload protection.

Where it works

The 5.5 kW set is a good fit for centre-pivot booster duty on Free State and North West farms, and for lifting water from a dam to a storage reservoir on a Karoo or Northern Cape farm. It is also used for dam and reservoir transfer, building water supply, HVAC and cooling-water circulation.

See the wider pump range, or compare the 5.5 kW DZA(S) 80-65-125 bareshaft pump and the 4 kW DZA(S) 80-65-125 pump set.

What’s in the box

DZA(S) 80-65-125 pump end fitted to a 5.5 kW three-phase motor, in the voltage option you choose

Delivery and warranty

Kamano delivers with its own trucks from Polokwane to all nine provinces in 1 to 3 days, with regular runs to Cape Town, George, Kimberley, Upington, Gqeberha and Bloemfontein. At 67 kg it falls in the 60 to 100 kg delivery band, currently R1,450 for the order. Delivery is free on orders of R20,000 or more (VAT incl.). Ask us for the warranty terms on this model.

Questions about this product

Does the 5.5 kW DZA(S) pump set run on single-phase power?

No. Both motor options are three-phase, 380 V or 525 V, so you need a three-phase supply and a starter with overload protection. If your farm or yard only has single-phase, tell us your supply and the flow you need and we will advise on what will work before you order.

What flow does the 5.5 kW DZA(S) 80-65-125 give at my head?

At 42 m³/h it gives 21.5 m of head, and at 108 m³/h it gives 8.5 m. Add about 1 m for every 10 m of pipe and fittings to your lift to get total head, then read your flow off the specs table. Send us your numbers and we will confirm the match.

Do you deliver this pump set to Cape Town?

Yes. Kamano delivers with its own trucks from Polokwane to all nine provinces in 1 to 3 days, including Cape Town and Upington. At 67 kg it falls in the 60 to 100 kg delivery band, currently R1,450 for the order. Orders of R20,000 or more (VAT incl.) ship free.

What is the difference between the 380 V and 525 V options?

Only the motor supply voltage. The pump end, 5.5 kW rating and price are identical at R 22,808 VAT incl. Pick the one that matches your site supply; 525 V is common on mines, while 380 V is the usual choice on farms and in commercial buildings.

Is this pump self-priming?

No. It is an end-suction centrifugal pump, so the suction line and casing must be flooded before starting. Mount it at or below the water level where you can, keep the suction pipe short and airtight, and fit a foot valve if it sits above the water.
