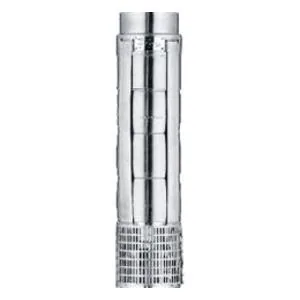

10SP135/4 10-Inch Borehole Pump, 45 kW, 125 m Max Head

Description

Overview

The 10SP135/4 is a 10-inch stainless steel submersible borehole pump rated at 45 kW, delivering about 90 m3/h (90 000 litres per hour) at 101 m head and 125 m at shut-off. It is the choice for deep, high-yield boreholes feeding large irrigation, municipal supply and mine dewatering. Buy a complete set with a 45 kW 8-inch motor, or the pump end alone.

Key features

• Stainless steel pump construction
• Head of 125 m at shut-off, 101 m at 90 m3/h and 53 m at 180 m3/h
• Three-phase, 380 V or 525 V, with a 45 kW water-filled 8-inch motor in the sets
• 10-inch diameter, for boreholes of at least 250 mm internal diameter
• Water-filled motors can normally be rewound if they burn out

Options

• 380 V set: pump end plus 45 kW 380 V three-phase water-filled 8-inch motor, no starter panel: R 67,872
• 525 V set: pump end plus 45 kW 525 V three-phase water-filled 8-inch motor, no starter panel or VSD: R 74,488
• Pump end only: to replace a worn pump end on an existing 45 kW 8-inch motor: R 15,160

Where it works

Typical sites are deep Karoo boreholes, large irrigation schemes in the Free State and dewatering on Mpumalanga coal and Limpopo mines. The motor needs a soft starter, star-delta panel or VSD sized by your electrician, which is not included, and we can quote the complete installation. Add pumping water level, height to the tank and about 10% for friction to get total head, and check the borehole yield first. Compare the 10SP135/4A at 37 kW or the 10SP135/10 pump end for extreme head. See all borehole pumps.

What’s in the box

• Pump end, with the motor if you choose a set

Not included: submersible cable, rope, delivery pipe, base plate and starter. Large borehole pumps are supplied to order, so ask us to confirm lead time.

Delivery and warranty

Kamano delivers with its own trucks from Polokwane to all nine provinces in 1 to 3 days, including eMalahleni, Mbombela, Klerksdorp, Welkom, Bloemfontein and Kimberley. A set is well over 100 kg, so delivery is on quotation. Orders of R20,000 or more are delivered free. Ask us for the warranty terms on this model.
