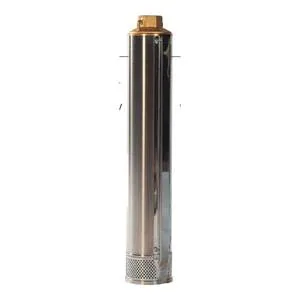

4SD10/15 4″ borehole pump 3 kW, 101 m head, side view

4SD10/15 4″ Borehole Pump, 3 kW, 101 m Max Head

SKU KMN-BORE-0177

A 4″ stainless steel multistage borehole pump for a 3 kW motor, up to 101 m head, as a set or pump end only, delivered across South Africa.

Price range: R1 416,00 through R18 024,00

Up to 101 m head and 14.4 m³/h flow
4″ stainless steel multistage pump for boreholes of 100 mm or more
Buy as a complete set (380 V three-phase, 525 V three-phase) or pump end only
From R 1,416 VAT incl., delivered from Polokwane

Configuration

Clear

Request Bulk Quote Ask on WhatsApp

Delivered by our own trucks in 1 to 3 days. R550 / R950 / R1,450 by order weight. FREE on orders of R20,000 or more with code KH027. Delivery details

Specifications

Model	4SD10/15 4″ multistage submersible borehole pump
Range	Vega 4SD10, nominal flow about 10 m³/h
Pump construction	Stainless steel pump body and shaft
Pump diameter	4″, fits boreholes of 100 mm internal diameter or more
Motor power	3 kW, oil-filled in complete sets
Voltage / phase	380 V three-phase, 525 V three-phase, by option
Controller	Analogue box, 20Y, Y1 or VSD, by option
Max head	101 m at zero flow
Max flow	14.4 m³/h (240 L/min)
Duty points	0 L/min at 101 m; 30 L/min at 99 m; 60 L/min at 91 m; 90 L/min at 86 m; 120 L/min at 82 m; 150 L/min at 74 m; 180 L/min at 62 m; 210 L/min at 45 m; 240 L/min at 22 m
Self-priming	N/A (submersible)
Fluid compatibility	Clean borehole water
Net weight	33.3 kg
Shipping weight	39 kg
Dimensions	On request

Description

Overview

The 4SD10/15 is a 4″ stainless steel multistage submersible borehole pump for a 3 kW motor, giving 101 m of head at zero flow and up to 14.4 m³/h at the open end of its curve. It comes from the Vega 4SD10 range, with a nominal flow around 10 m³/h, and fits boreholes with an internal diameter of 100 mm or more. Buy this 4sd10/15 borehole pump as a complete set for your power supply, or as the pump end only to replace a worn wet end on an existing 3 kW motor.

Key features

Stainless steel pump body and shaft
101 m maximum head, 14.4 m³/h maximum flow
Rated for a 3 kW motor
4″ diameter for boreholes of 100 mm or more
3 ways to buy, from a full set to a pump end only

Options

380V 3-phase set + Y1 controller, R 7,464: pump end, 3 kW 380 V three-phase oil-filled motor and Y1 digital protection controller.
525V 3-phase set + VSD, R 18,024: pump end, 3 kW 525 V three-phase oil-filled motor and variable speed drive (VSD).
Pump end only (no motor), R 1,416: wet end only, to replace a worn pump end on an existing 3 kW motor.

Where it works

At 101 m of head it lifts from deep farm boreholes into a reservoir for pivot or drip lines in Limpopo and Mpumalanga, and it suits rural community water supply. Add the depth to your water level, the height up to your tank and about 10% for pipe friction, then pick a pump whose head at your flow is above that total. Compare the 4SD10/17 4″ Borehole Pump 3kW, 115m Max Head or the 4SD10/13 4″ Borehole Pump 2.2kW, 88m Max Head, or browse our borehole pump range.

What’s in the box

Sets: 4SD10/15 pump end, 3 kW motor and controller for your option
Pump end only: the 4SD10/15 wet end
Not included: cable, rope, delivery pipe, base plate

Delivery and warranty

Kamano delivers with its own trucks from Polokwane to all nine provinces in 1 to 3 days, including Upington, Mahikeng, Klerksdorp, Cape Town, Bloemfontein and Rustenburg. Your 4sd10/15 borehole pump ships at 39 kg, in the 30 to 60 kg delivery band at R950 (VAT incl.); orders of R20,000 or more are delivered free. Ask us for the warranty terms on this model.

Questions about this product

Which 4SD10/15 option should I choose?

Choose by supply and by what you already own. Three-phase sets come with the Y1 protection controller, and the 525 V set comes with a variable speed drive. If you already have a 3 kW motor and only need to replace a worn wet end, take the pump end only. Tell us your supply and borehole yield and we will point you to the right one.

What size borehole does the 4SD10/15 fit?

The 4SD10/15 is a 4″ pump and fits boreholes with an internal diameter of 100 mm or more. Check your casing size before ordering, because bent or silted casing reduces the usable bore. Send us the borehole details if you are unsure and we will confirm it will pass down the hole.

What is not included with the 4SD10/15?

Submersible cable, rope, delivery pipe and base plate are not included with any option. We can quote the cable and rigging items with the pump if you tell us your borehole depth, so you can have everything delivered together and avoid a second trip to the supplier.

Is 101 m of head enough for my borehole?

Add your depth to water level, the height up to your tank and roughly 10% for friction. If the total sits below the pump head at the flow you need, it will work. Example points: 90 L/min at 86 m and 150 L/min at 74 m. Send your figures and we will check the match.

Do you deliver the 4SD10/15 to Mahikeng?

Yes. Kamano delivers with its own trucks from Polokwane to all nine provinces in 1 to 3 days, and Mahikeng is covered. At 39 kg shipping weight, the 4SD10/15 falls in the 30 to 60 kg delivery band at R950 (VAT incl.), and orders of R20,000 or more ship free. Give us the delivery address when you order and we will confirm the date.
