DC-40 12V Diesel Transfer Pump, 40 L/min, 155 W

Description

Overview

This dc-40 12v fuel pump is a compact rotary-vane transfer pump for diesel. It runs on a 12V DC supply at 155 W, moves 40 L/min and lifts fuel from 3 m below the pump to a delivery head of up to 10 m.

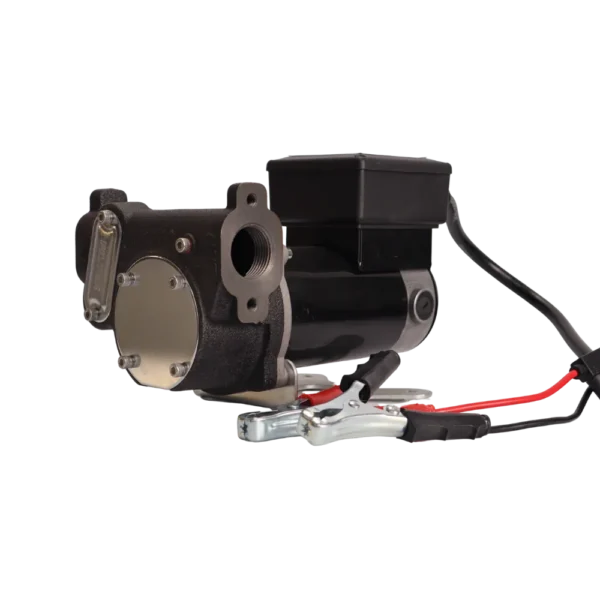

The cast-iron body and IP55, class B motor handle dusty farm and workshop conditions. At 4.6 kg it is light enough to mount on a bakkie tank, a drum stand or a small bowser. For trucks and plant on 24V, choose the DC-40 24V fuel transfer pump; for more flow, step up to the DC-60 12V fuel transfer pump. The wider fuel transfer pumps range covers hoses and accessories.

Key features

• 12V DC, 155 W rotary-vane pump
• 40 L/min flow, 10 m head, 3 m suction lift
• 3/4″ (19.5 mm) ports, per the supplier table
• Cast iron body, IP55 and class B motor
• 30 minute duty cycle
• Only 4.6 kg net

Where it works

Farmers in the Free State and Limpopo use the DC-40 to fuel tractors from a drum or small tank, and contractors in Gauteng and KZN mount it on a bakkie tank. Mine service teams in Mpumalanga use 12V pumps like this on lube trucks, and the battery supply keeps it working through load-shedding. A dc-40 12v fuel pump is simple to wire and quick to fit, which is why bakkie-mounted tanks use it. Run a fused feed from the battery with a switch, keep the hose runs short and use a strainer on the suction side to protect the vanes.

What’s in the box

• DC-40 12V transfer pump

Delivery and warranty

Kamano delivers with its own trucks from Polokwane to all nine provinces in 1 to 3 days. Orders of R20,000 or more (VAT incl.) ship free. This item ships at 5 kg. That puts it in the R550 delivery band (up to 30 kg). Tell us your town and site access when you order, and we will confirm the delivery day and offloading arrangements with you. Ask us for the warranty terms on this model.
