Compression Male Elbow 90 Degree for HDPE Pipe, PN16

Description

Overview

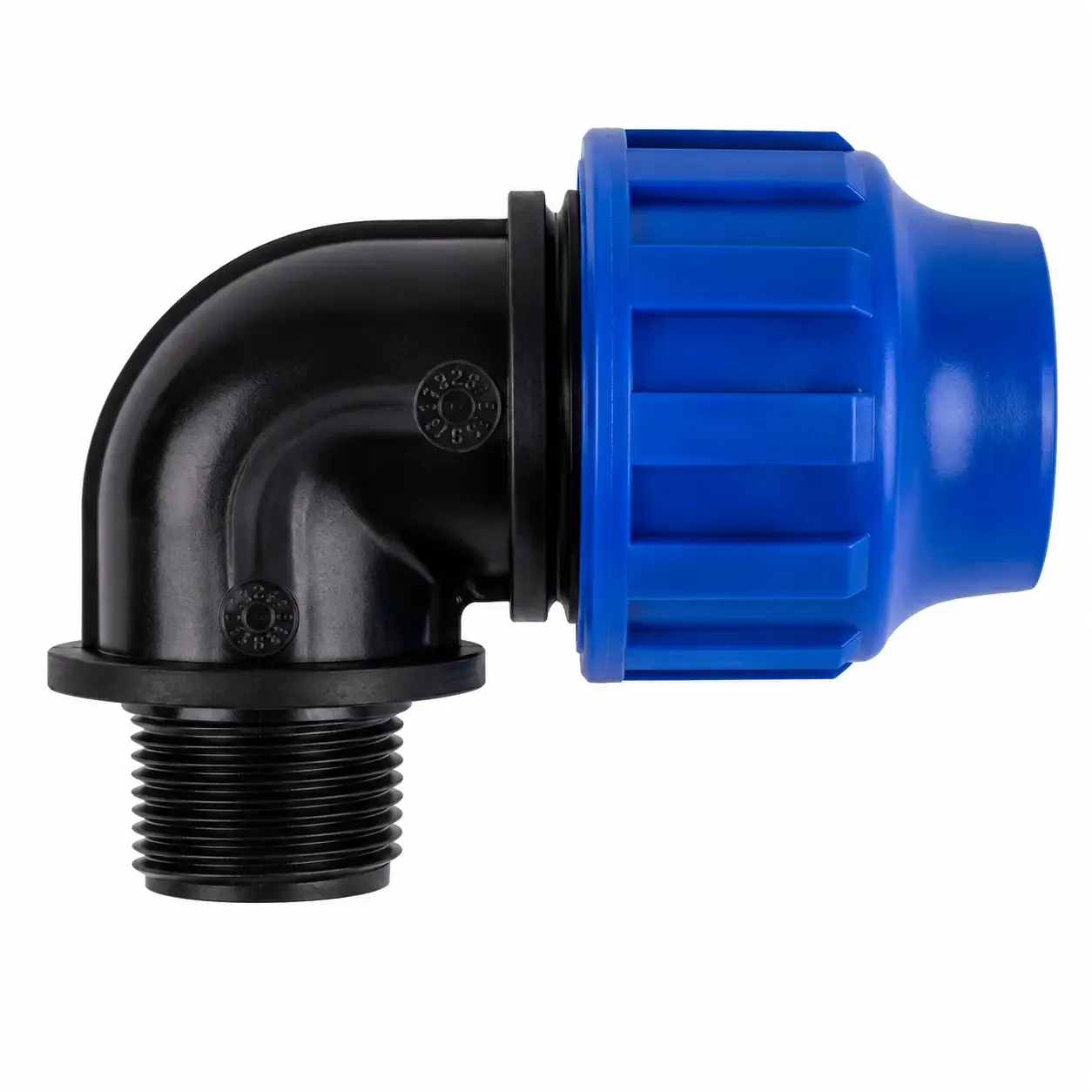

A compression male elbow connects HD polyethylene (HDPE) pipe to a female threaded fitting at a 90 degree angle. The pipe goes into the compression end and the male thread screws into the connection.

The 90 degree design lets the line change direction neatly without extra fittings, and the rubber O-ring forms the seal. It is polypropylene, rated PN16, with ISO 14236 / SANS 14236 stated by the maker. Related parts sit in our pipe fittings range.

Key features

• 90 degree elbow configuration
• Compression connection x male thread
• Designed for HDPE pipe
• Strong polypropylene construction
• Rubber O-ring helps provide a watertight seal
• High- and low-pressure use, PN16 up to 16 bar
• Compact design for changing pipeline direction
• Many pipe and thread combinations

Options

Choose the pipe size and thread size you need. Pipe size comes first, then thread size. Prices are per fitting, VAT incl.

• 20 mm x 1/2″: R 25
• 20 mm x 3/4″: R 22
• 25 mm x 1/2″: R 26
• 25 mm x 3/4″: R 29
• 25 mm x 1″: R 29
• 32 mm x 1/2″: R 19
• 32 mm x 3/4″: R 37
• 32 mm x 1″: R 34
• 32 mm x 1 1/4″: R 37
• 40 mm x 1″: R 55
• 40 mm x 1 1/4″: R 61
• 40 mm x 1 1/2″: R 63
• 50 mm x 1 1/4″: R 59
• 50 mm x 1 1/2″: R 71
• 50 mm x 2″: R 64

Where it works

Reach for it where a pipe must turn and then thread into something, such as the side of a tank, a pump inlet, a filter or a valve. Water tank installations, irrigation, agricultural water lines and HDPE distribution networks use it. Eastern Cape and North West farmers fit them at tank outlets and pump bases. Use the right thread seal and do not overtighten. Pair with a compression male adaptor and a compression elbow.

What’s in the box

• 1 x compression male elbow in the size you select

Delivery and warranty

Kamano delivers with its own trucks from Polokwane to all nine provinces in 1 to 3 days, including Durban, Pietermaritzburg, Richards Bay, East London, Gqeberha and Bloemfontein. Delivery is charged by total order weight and this item ships at 0.45 kg, so it sits in the up to 30 kg band at R550. That makes it worth adding to a wider fittings order, and delivery is free from R20,000 (VAT incl.). Ask us for the warranty terms on this model.
