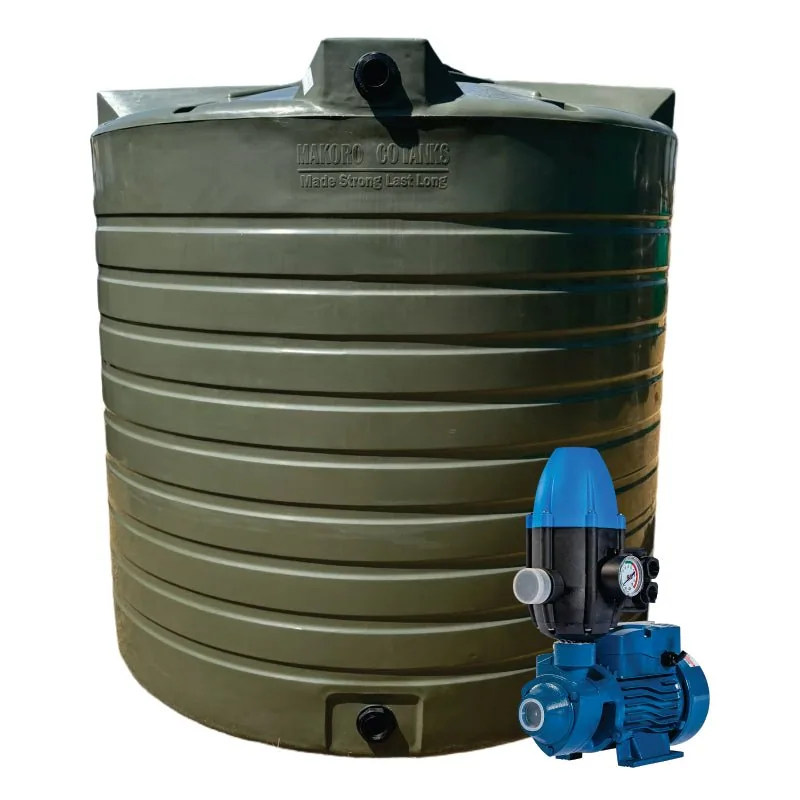

10 000 L Water Tank with 0.75 kW Peripheral Pump and Controller

Name: 10 000 L Water Tank with 0.75 kW Peripheral Pump and Controller
SKU: KMN-WATR-0125
Price: 13508.59 ZAR
Availability: InStock

SKU KMN-WATR-0125

A 10 000 L water tank with a 0.75 kW peripheral pump built for high head, up to 60 m, for hillside farms and gardens across South Africa.

R13 508,59

10 000 L tank with 0.75 kW peripheral pump
60 L/min flow with up to 60 m head, 1″ ports
Flow-control switch starts the pump on demand
230 V single-phase
Quote on delivery, shipping weight 193 kg

Delivered by our own trucks in 1 to 3 days. R550 / R950 / R1,450 by order weight. FREE on orders of R20,000 or more with code KH027. Delivery details

Specifications

Tank capacity	10 000 L (10 300 L maximum)
Tank material	100% virgin LLDPE, double-layer, rotomoulded, black inner liner
Tank dimensions	approx. Ø 2200 × 3000 to 3150 H mm
Manhole	45 cm
Pump type	Peripheral pump with flow-control switch
Power	0.75 kW
Voltage / phase	230 V, 50 Hz, single-phase
Flow rate	Up to 60 L/min (3.6 m³/h)
Max head	60 m
Inlet / outlet	1" ports
Self-priming	On request
Duty cycle	On request
Fluid compatibility	Clean water, max 40 °C (controller rated to 60 °C)
Pump materials	Cast-iron body, brass peripheral impeller, AISI 304 shaft, NBR/graphite/ceramic seal
Motor protection	Thermal overload protector in winding
Speed	2850 rpm
Warranty	Tank: 1 to 2 years, depending on the model
Net weight	192 kg
Shipping weight	193 kg
Dimensions	Tank approx. Ø 2200 × 3000 to 3150 H mm

Description

Overview

This kit pairs a 10 000 L water tank with a 0.75 kW peripheral pump that trades flow for pressure. A peripheral pump gives up to 60 m of head from a small motor, compared with about 32 m from a monoblock of the same power, so it is the right pump when water must climb or travel far.

A flow-control switch starts the pump when a tap opens. Maximum flow is 60 L/min (3.6 m³/h).

A peripheral pump with 10000l tank is the right answer when the water has to climb.

Key features

10 000 L vertical LLDPE tank, 10 300 L at maximum fill
Double-layer rotomoulded wall, BPA-free, with black inner liner to limit algae
Screw-on lid with handles and a 45 cm manhole
0.75 kW peripheral pump, 230 V single-phase, 1″ ports
Up to 60 m head from a compact motor
Brass peripheral impeller, AISI 304 shaft, NBR/graphite/ceramic seal
Thermal overload protection in the motor

Where it works

The peripheral pump suits hillside homesteads in Limpopo and Mpumalanga, lodges where the tank sits low and the house sits high, and drip irrigation on orchards and vineyards that need pressure more than volume. It also works for spray lines and garden sprinklers.

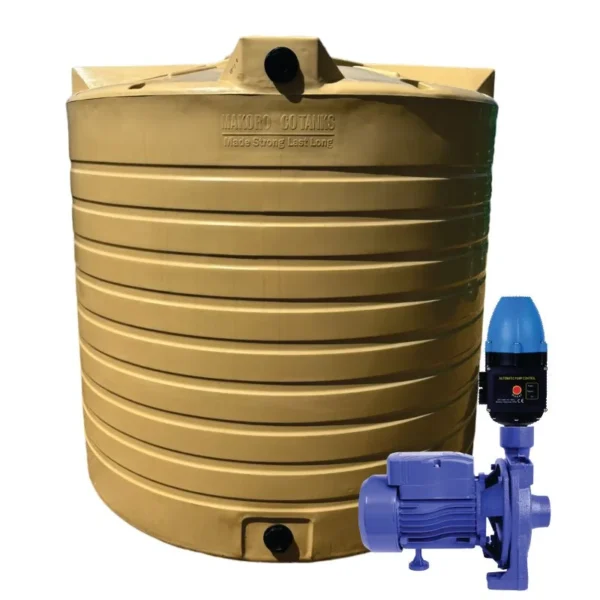

If you want more flow instead of more head, choose the 10 000 L tank with 0.75 kW monoblock pump. For the smallest budget see the 10 000 L tank with 0.55 kW monoblock pump. All options sit in our tank and pump combo kits range.

Clean water only, up to 40 degrees Celsius (the controller handles up to 60 degrees).

Owners who choose a peripheral pump with 10000l tank are usually dealing with a slope, not a volume problem.

What’s in the box

10 000 L vertical water tank with lid
0.75 kW peripheral pump
Flow-control switch

Delivery and warranty

Kamano delivers with its own trucks from Polokwane to all nine provinces in 1 to 3 days. Delivery is free on orders of R20,000 or more (VAT incl.). Shipping weight is 193 kg. Orders over 100 kg are delivered on quotation, so ask us for a price to your town or farm. Kits over 100 kg are delivered on quotation, so tell us your town and we will price it. The tank carries a warranty of 1 to 2 years, depending on the model, confirmed on your quote. Ask us for the pump warranty terms.

Questions about this product

When should I pick a peripheral pump over a monoblock?

Pick the peripheral when you need head: it reaches up to 60 m at 60 L/min. A monoblock of the same power gives about 100 L/min but only 32 m head. So choose peripheral for hills and long runs, monoblock for volume. The two pumps suit different jobs.

Will it run a sprinkler line?

A peripheral pump suits garden sprinklers and drip lines that need pressure rather than volume. At up to 60 L/min it supports a modest zone. For several zones at once, ask us about a higher-flow kit. Ask us about zone size if you plan to run more than one line.

Do you deliver this kit to KZN?

Yes, we deliver to all nine provinces with our own trucks. At 193 kg shipping weight it is over 100 kg, so delivery is quoted. Tell us your town and we will price it, usually 1 to 3 days from Polokwane.
