Compression Equal Tee for HDPE Pipe, PN16, 20 to 50 mm

Description

Overview

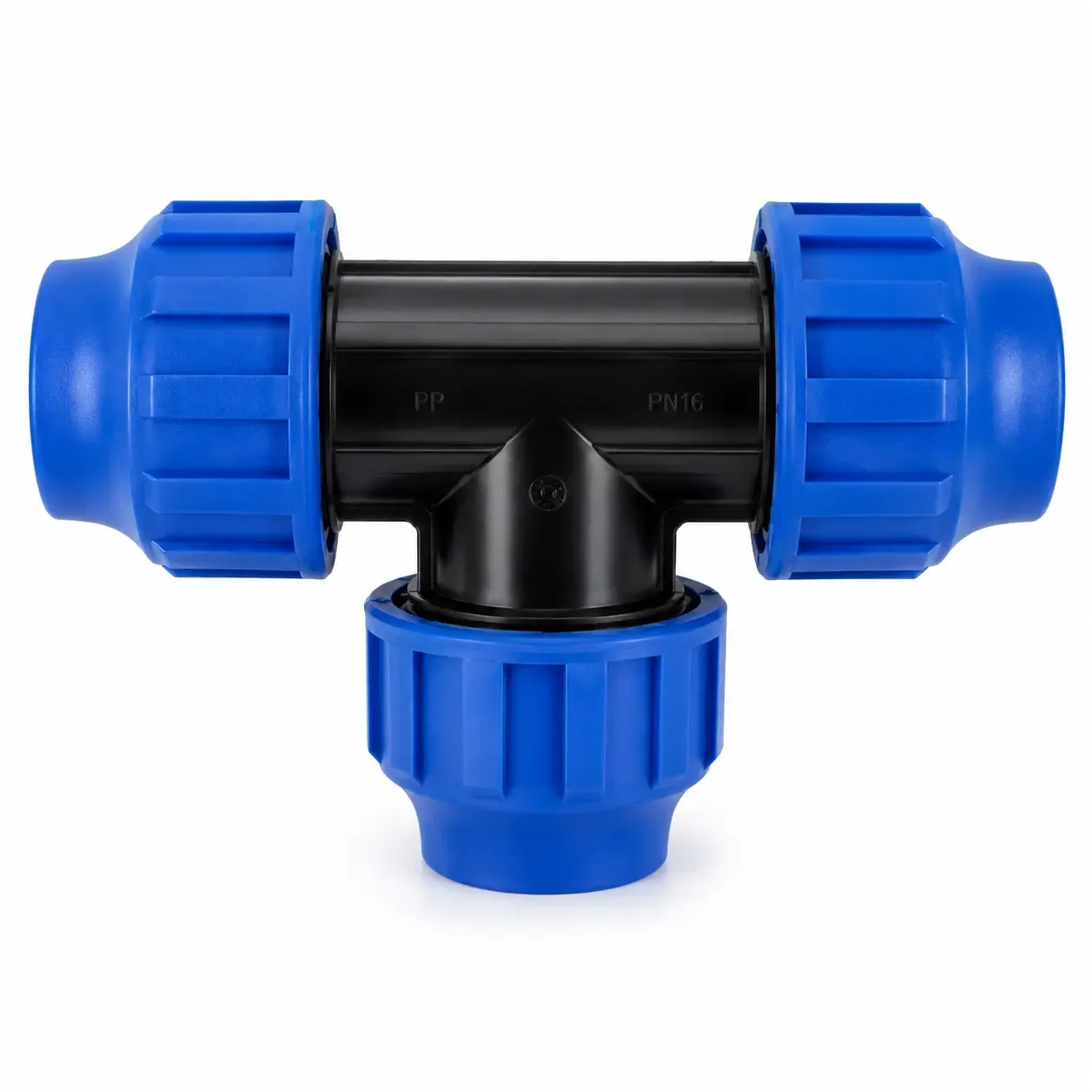

A compression equal tee makes a three-way connection in HD polyethylene (HDPE) pipe. All three ends are the same size, so you can branch a water line and keep the pipe diameter the same throughout.

The compression system seals with internal rubber O-rings, with no heat, soldering or specialised equipment. It is polypropylene, PN16 rated, and the maker states ISO 14236 / SANS 14236. See the whole pipe fittings range for the rest of the fittings.

Key features

• Three equal-size compression connections
• Creates a 90 degree branch off a main pipeline
• Strong polypropylene construction
• PN16 pressure rated, up to 16 bar
• Rubber O-ring sealing system
• Suits high- and low-pressure water applications
• Easy to install, remove and maintain
• Agricultural, domestic and commercial use

Options

Pick the size that matches your pipe. Prices are per tee, VAT incl.

• 20 mm: R 47
• 25 mm: R 55
• 32 mm: R 58
• 40 mm: R 74
• 50 mm: R 125

Where it works

Whenever one main water line has to divide into two directions, this is the fitting. It creates branch lines in water supply systems, irrigation networks, agricultural water systems, tank installations, pump and filtration systems and garden irrigation. Farmers in the Eastern Cape and KZN use them on stock-water reticulation. Run the straight sections with the compression coupler and make corners with the compression elbow.

What’s in the box

• 1 x compression equal tee in the size you select

Delivery and warranty

Kamano delivers with its own trucks from Polokwane to all nine provinces in 1 to 3 days, including Cape Town, George, Upington, Kimberley, Bloemfontein and Welkom. Delivery is charged by total order weight and this item ships at 0.6 kg, so it sits in the up to 30 kg band at R550. That makes it worth adding to a wider fittings order, and delivery is free from R20,000 (VAT incl.). Ask us for the warranty terms on this model.
