Compression Coupler for HDPE Pipe, PN16, 20 to 50 mm

Description

Overview

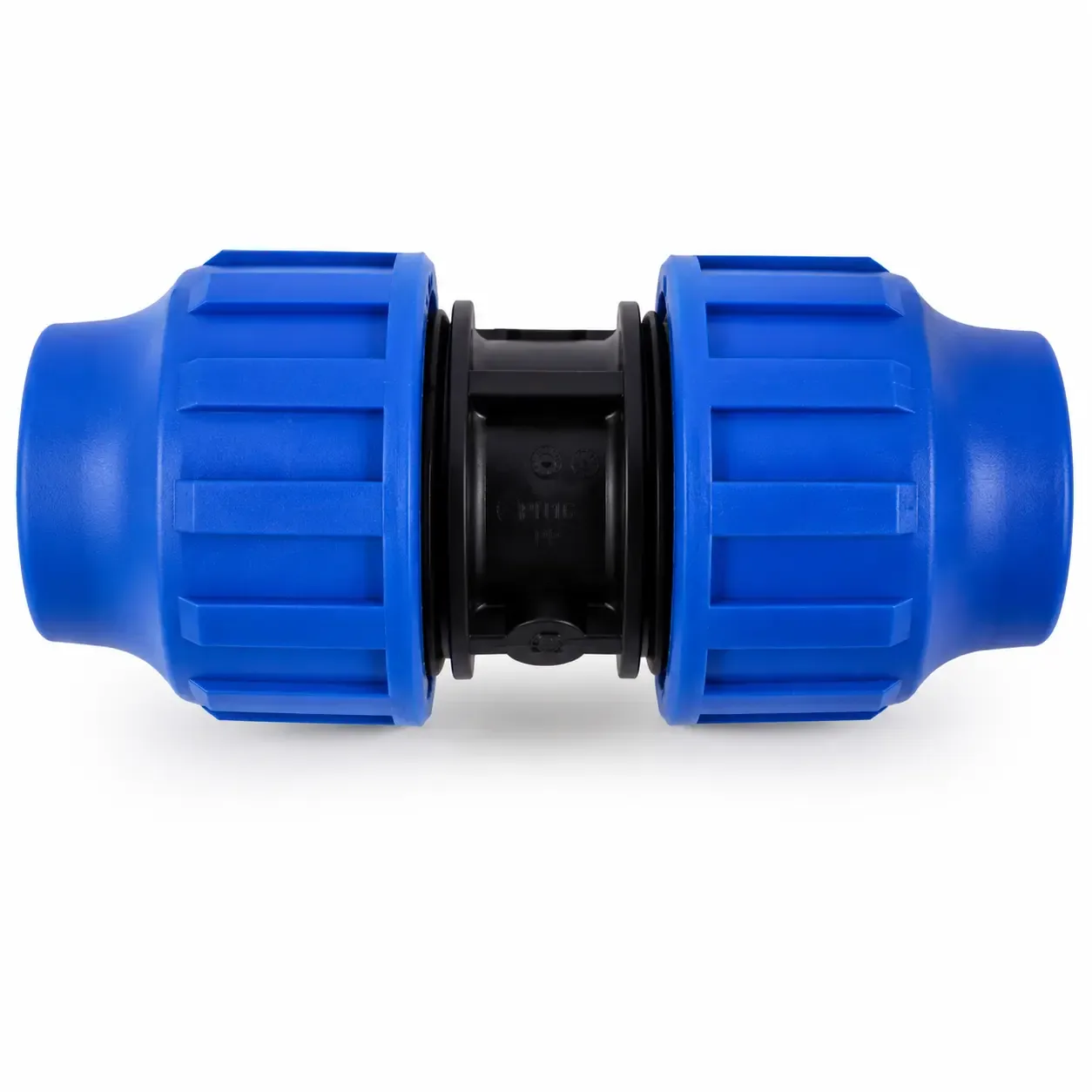

A compression coupler joins two lengths of HD polyethylene (HDPE) pipe in a straight line. There is no heat, soldering or special equipment: the pipe slides in, the nut is tightened and the rubber O-ring seals.

It is made from polypropylene and rated PN16, which is 16 bar. The maker states it is made to ISO 14236 / SANS 14236. Water supply, irrigation and plumbing jobs all use it, and more HDPE fittings sit in our pipe fittings range.

Key features

• Connects two HDPE pipes of the same diameter
• Strong polypropylene construction
• PN16 pressure rated, up to 16 bar
• Rubber O-ring gives a watertight seal
• Works in high- and low-pressure systems
• No heat or soldering needed
• Suits above-ground and underground water installations
• Excellent resistance to pipe pull-out

Options

Select the size to match your pipe. Prices are per coupler, VAT incl.

• 20 mm: R 35
• 25 mm: R 40
• 32 mm: R 56
• 40 mm: R 90
• 50 mm: R 82

Where it works

Use this coupler to join a new run of HDPE to an existing line, or to repair a damaged section. Farmers in Limpopo and the Free State use it on borehole delivery lines, municipal crews on reticulation, and contractors on tank connections and pump installations. Cut the pipe square, remove burrs, loosen the nut and push the pipe fully in before tightening. Do not overtighten. Add a compression elbow for a corner and a compression equal tee for a branch.

What’s in the box

• 1 x compression coupler in the size you select

Delivery and warranty

Kamano delivers with its own trucks from Polokwane to all nine provinces in 1 to 3 days, including Rustenburg, Klerksdorp, Mahikeng, Johannesburg, Upington and Kimberley. Delivery is charged by total order weight and this item ships at 0.35 kg, so it sits in the up to 30 kg band at R550. That makes it worth adding to a wider fittings order, and delivery is free from R20,000 (VAT incl.). Ask us for the warranty terms on this model.
