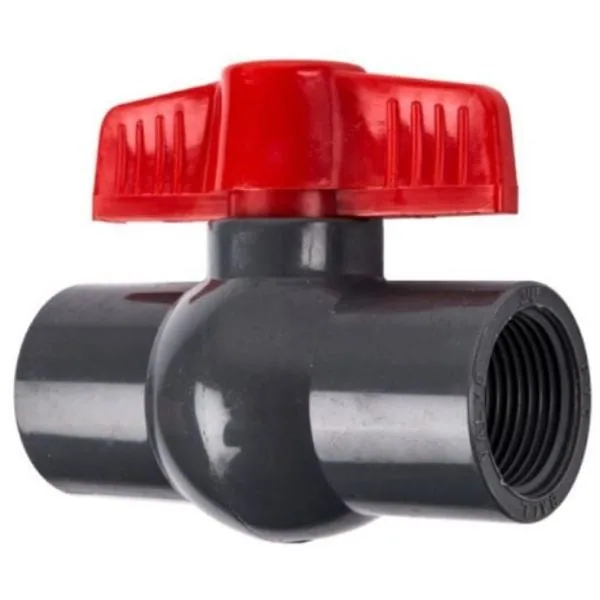

32 mm Compact PVC Ball Valve, BSP Female Threaded, 16 bar, CBV32MMT

Description

Overview

The 32 mm compact ball valve is a durable PVC shut-off valve that controls or isolates water flow in irrigation, plumbing, pool and reticulation systems. It has 32 mm female BSP threaded connections, a smooth-operating ball and a secure seal. The red handle turns a quarter turn between open and closed.

It is rated to a maximum working pressure of 16 bar (PN16). The PVC body resists corrosion, chemicals and UV, so it is suited to domestic, commercial, agricultural and industrial installations, indoors or out.

Key features

• 32 mm BSP female threaded connections
• Compact PVC ball valve
• Quarter-turn operation with ergonomic red handle
• Smooth shut-off and flow control
• Maximum working pressure 16 bar (PN16)
• Corrosion, chemical and UV resistant
• Easy to install
• Suits high-pressure and low-pressure water systems

Where it works

Typical uses are irrigation systems, water reticulation, swimming pool installations, water tanks, agricultural water systems, domestic and commercial plumbing, and pump installations. On a Limpopo or KwaZulu-Natal farm it is the isolation valve on a pump outlet or the start of a lateral. Its female threads take a male-threaded adaptor, so you will normally use a running nipple or male adaptor, and PTFE tape from the thread seal tape pack on the male thread. Neighbouring sizes are the 25 mm and 40 mm compact ball valves. The full range is in pipe fittings.

What’s in the box

• 1 x 32 mm compact PVC ball valve, BSP female threaded

Delivery and warranty

Kamano delivers with its own trucks from Polokwane to all nine provinces in 1 to 3 days, including Johannesburg, Pretoria, Mbombela, Richards Bay, Bloemfontein and Cape Town. A valve ships at about 0.16 kg, so it sits in the lowest delivery band (R550 for orders up to 30 kg). Delivery is free on orders of R20,000 or more (VAT incl.). Ask us for the warranty terms on this model.
