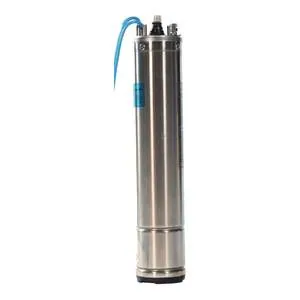

4 Inch Borehole Motor 2.2 kW 380 V Three Phase, Oil Filled
SKU KMN-BORE-0278
A 2.2kW 380 V three-phase oil-filled 4 inch borehole motor for replacement and rebuild jobs, delivered across South Africa from Polokwane.
R3 112,00
- Oil-filled 4 inch submersible borehole motor, 2.2kW
- Supply: 380 to 415 V three phase
- Rated for 20 bar
- Pairs with a Y1 digital protection controller
Delivered by our own trucks in 1 to 3 days. R550 / R950 / R1,450 by order weight. FREE on orders of R20,000 or more with code KH027. Delivery details
Specifications
| Motor type | Oil-filled submersible, 4 inch |
|---|---|
| Power | 2.2kW |
| Supply | 380 to 415 V three phase |
| Rated pressure | 20 bar |
| Lead-out cable | 2 m |
| Suitable borehole | 100 mm and larger |
| Fits | 4 inch pump ends, including Vega 4SD and 4ST of the same kW |
| Control gear | Y1 digital protection controller recommended |
| Model code | 10060012 |
| Net weight | 16 kg |
| Shipping weight | 18 kg |
| Dimensions | 560 × 100 × 100 mm |
Description
Overview
This 2.2kW 4 inch borehole motor is an oil-filled submersible motor for 380 V three-phase supply, built to drive a matching Vega 4SD or 4ST pump end of the same power rating and rated for 20 bar.
A 2.2 kW motor is for deeper boreholes or higher-head duty where the smaller motors run out of push. Protect the motor with a Y1 digital protection controller from our borehole controllers range.
It comes with a 2 m lead-out cable, so measure the run from the borehole head to your isolator before you order. The motor is sold without a pump end, so it suits a replacement job or a rebuild of an existing borehole set. Model code 10060012. Browse the full borehole pumps and motors range for matching pump ends.
Key features
- Oil-filled 4 inch submersible motor, 2.2kW
- Supply: 380 to 415 V three phase
- Rated for 20 bar
- 2 m lead-out cable
- Fits boreholes of 100 mm and larger
- Matches Vega 4SD and 4ST pump ends of the same power rating
- Pairs with a Y1 digital protection controller
Where it works
A 2.2kW 4 inch borehole motor is the part farmers in the Free State and installers around the country fit when a set burns out or a pump end is being rebuilt, and a spare in the bakkie saves a second trip. Three-phase suits farms and smallholdings that already have a three-phase line, and it avoids the capacitor and start gear that single-phase motors depend on. Compare it with the 1.1 kW 380 V three-phase motor or the 1.5 kW 220 V single-phase motor.
What’s in the box
- 4 inch oil-filled submersible borehole motor, 2.2kW
- 2 m lead-out cable
- Motor only: pump end and control gear sold separately
Delivery and warranty
Kamano delivers with its own trucks from Polokwane to all nine provinces in 1 to 3 days, including Pietermaritzburg, eMalahleni, Richards Bay, Johannesburg, Durban and Polokwane. This 2.2kW 4 inch borehole motor ships at about 18 kg, so it falls in the up to 30 kg band at R550. Fees are by total order weight: up to 30 kg R550, 30 to 60 kg R950, 60 to 100 kg R1,450, over 100 kg on quotation, and orders of R20,000 or more (VAT incl.) ship free. Ask us for the warranty terms on this model.
Questions about this product
Does this motor need a three-phase supply?
Yes. It is wound for 380 to 415 V three phase, so it needs a three-phase supply. We recommend a Y1 digital protection controller to look after the motor. If you only have single phase on site, look at the 220 V three-phase motors that run from a VSD or solar inverter, or the single-phase motors with a control box.
Which pump end will this motor fit?
It suits 4 inch pump ends, including the Vega 4SD and 4ST ends of the same power rating. Always match the motor kW to the pump end rating, and check the borehole is 100 mm or larger. Send us your pump end details and we will confirm the fit before you order.
Do you deliver to eMalahleni?
Yes. Kamano delivers from Polokwane to eMalahleni in 1 to 3 days with its own trucks. At about 18 kg this motor falls in the up to 30 kg band, so delivery is R550, and orders of R20,000 or more (VAT incl.) ship free. Add a pump end or controller to the same order to reach free delivery sooner.
How deep can I set this motor?
The motor is rated for 20 bar, which is the pressure rating of its housing and equals roughly 200 m of water head. Your real setting depth also depends on the pump end and the cable, so tell us your borehole depth and yield and we will size the set with you.
Nationwide delivery from Polokwane
Delivered to all nine provinces in 1 to 3 days
We deliver the 4 Inch Borehole Motor 2.2 kW 380 V Three Phase, Oil Filled with our own trucks to Johannesburg, Pretoria, Cape Town, Durban, Gqeberha, Bloemfontein, Polokwane, Mbombela, Secunda, Thohoyandou, Upington, Richards Bay, Tzaneen and East London, and to farms, mines and sites in between. This item ships in the R550 delivery band (up to 30 kg). Orders of R20,000 or more deliver free with code KH027.
Pairs well with
-
KMN-SUBM-0026
2.2 kW Submersible Pump, 380 V Three-Phase, 50 mm Outlet
- 2.2 kW
- 380 V
- 22 m head
-
KMN-WATR-0129
1000 L Slim Tank with 0.37 kW Econo Booster Pump Kit
- 1000 L tank
- 0.37 kW
- 23 L/min
-
KMN-PUMP-0234
DL16-20 Vertical Multistage Pump Wet End, 2.2kW, 26 m Head
- 2.2 kW
- 23 m³/h
- 26 m head
-
KMN-WATR-0131
1000 L Slim Tank with 0.55 kW Monoblock Pump with Controller
- 1000 L tank
- 0.55 kW
- 92 L/min
-
KMN-SUBM-0027
2.2 kW Submersible Pump, 220 V Single-Phase, 50 mm Outlet, Float Switch
- 2.2 kW
- 220 V
- 22 m head
-
KMN-PUMP-0277
Vega DL5-110 Multistage Pump Wet End, 2.2 kW, 8 m³/h, 70 m
- 2.2 kW
- 8 m³/h
- 70 m head
-
KMN-SOLR-0044
4SD2/37 Hybrid Solar Borehole Pump Kit, 2.2 kW, 240 m Head
- 2.2 kW hybrid
- 240 m head
- 3 m³/h
-
KMN-SUBM-0046

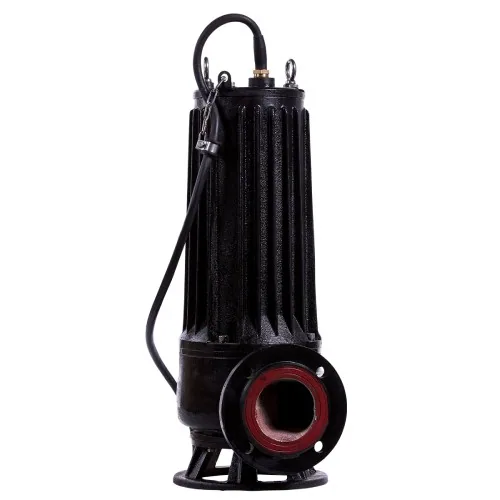

2.2 kW Raw Sewage Pump, 380 V Three-Phase, 50 mm Outlet, 40 mm Solids
- 2.2 kW
- 380 V
- 35 m3/h
Recently viewed
-
KMN-BORE-0048

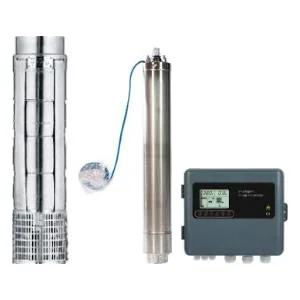

SP60-05 6″ Borehole Pump, 9.2 kW, 70 m Max Head
