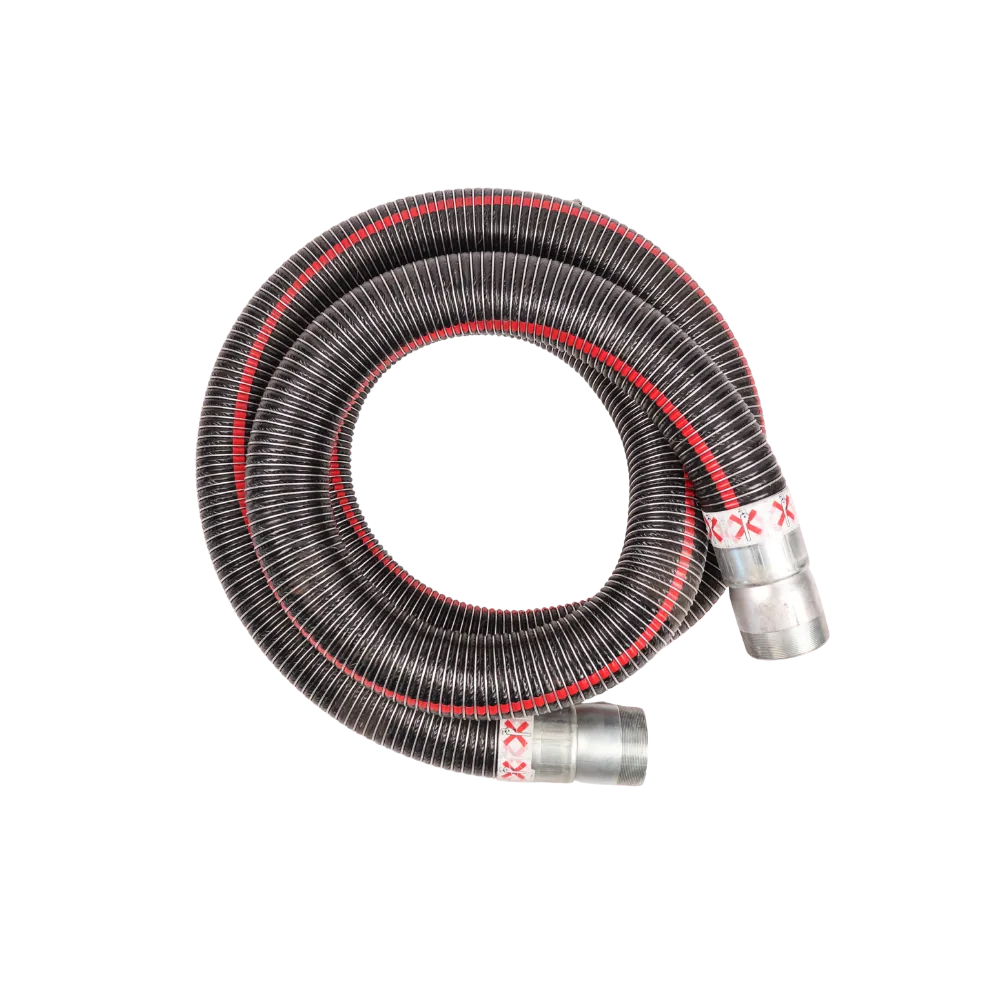

80 mm (3″) Composite Fuel Hose, 4.5 m, Male Swage Nipple Ends

Description

Overview

This 3 inch composite hose is a 4.5 m petroleum hose with 3″ male swage nipples on both ends. Three-inch is the standard size for many PTO tanker pumps and bulk meters, so this hose links pump, meter and tank without reducers. The layered polypropylene and wire construction keeps it flexible, light and safe on suction.

Run it with a 3″ bulk meter on a tanker, or between a storage tank and a transfer pump at a depot. For smaller trailers the 65 mm composite hose is lighter, and for full-bore gravity drops the 100 mm composite hose with male ends moves more fuel. Lengths of 6 m and 9.5 m are also available, priced on request.

Key features

• 80 mm (3″) bore, 4.5 m long
• 3″ male swage nipple both ends
• 7 bar working pressure, 3:1 safety factor
• 310 mm minimum bend radius
• About 4.5 kg per metre, -30 °C to +80 °C

Where it works

A 3 inch composite hose is the workhorse on rigid tankers delivering diesel to farms across Limpopo and the North West, and on mine service trucks in the Northern Cape. Depots in Gauteng use it between storage and loading pumps. It handles diesel, petrol, paraffin and oils, and works on both the suction and delivery side. Inspect the cover for cuts before each trip and retire the hose if the wire helix shows through. Browse our fuel hose and fittings for clamps and couplings.

What’s in the box

• 80 mm composite hose, 4.5 m, 3″ male swage nipples fitted

Delivery and warranty

Kamano delivers with its own trucks from Polokwane to all nine provinces, normally within 1 to 3 days. The 4.5 m hose ships at 21 kg, which falls in the up-to-30 kg band at R550. It travels coiled and wrapped. Orders of R20,000 or more (VAT incl.) travel free. Ask us for the warranty terms on this model.
