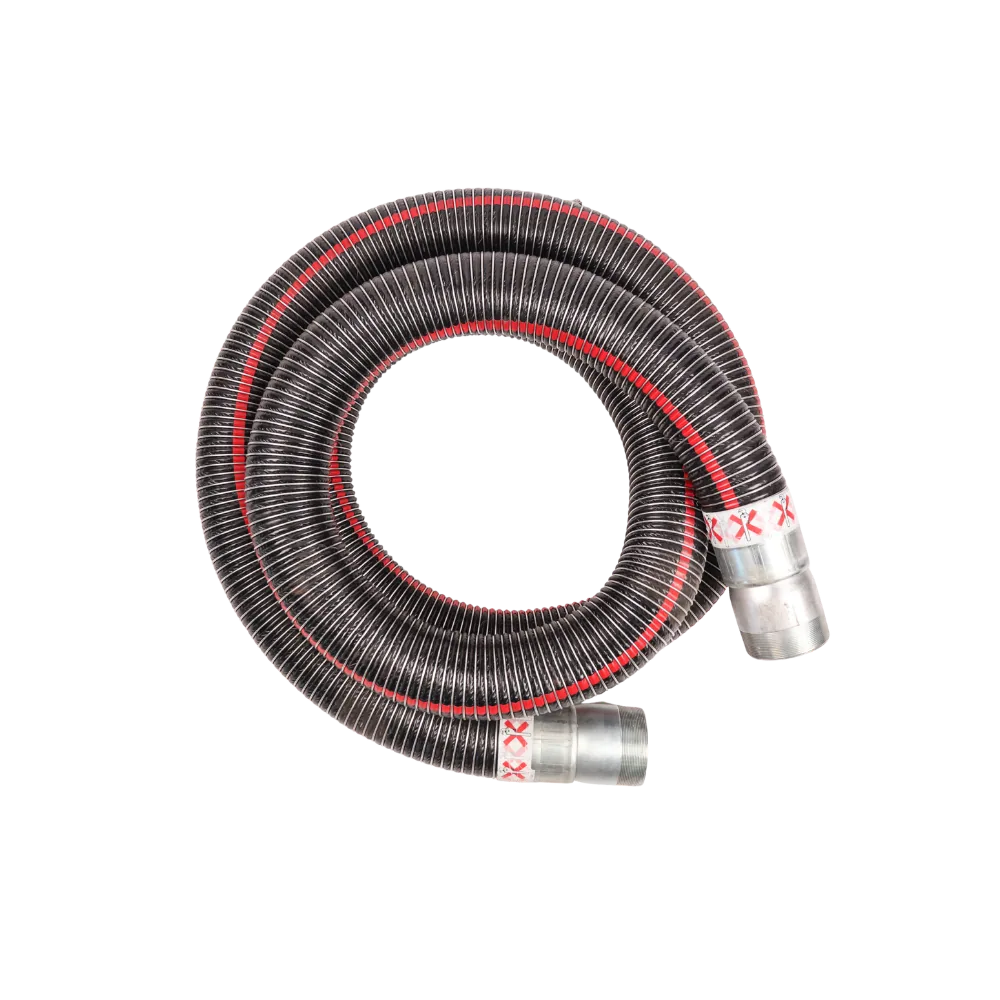

100 mm composite fuel transfer hose, 4.5 m, with 4 inch male threaded ends on both sides

100 mm Composite Fuel Hose, 4.5 m, 4″ Male Both Ends, 7 Bar

Name: 100 mm Composite Fuel Hose, 4.5 m, 4" Male Both Ends, 7 Bar
SKU: KMN-FUEL-0128
Price: 3165.75 ZAR
Availability: InStock

SKU KMN-FUEL-0128

A 4.5 m, 4" composite petroleum hose with male threaded ends on both sides for tanker and depot transfer, delivered from Polokwane in 1 to 3 days.

R3 165,75

Male thread both ends, ready for your own couplings or valves
Light, flexible hose for big-bore tanker and depot transfer
100 mm (4″) bore, 4.5 m, 7 bar
6 m and 8 m lengths on request

Delivered by our own trucks in 1 to 3 days. R550 / R950 / R1,450 by order weight. FREE on orders of R20,000 or more with code KH027. Delivery details

Specifications

Hose type	Composite petroleum hose
Bore	100 mm (4")
Length	4.5 m (6 m and 8 m on request)
Working pressure	7 bar (3:1 safety factor)
Temperature range	-30 °C to +80 °C
Min bend radius	360 mm
Construction	PP lining, galvanised inner wire, aluminium outer wire, PVC-coated polyester cover
End fittings	4" male both ends
Weight per metre	About 5.6 kg/m
Net weight	26 kg
Shipping weight	27 kg
Dimensions	N/A (100 mm bore × 4.5 m, ships coiled)

Description

Overview

This 4 inch composite fuel hose is a 4.5 m petroleum transfer hose with 4″ male ends fitted on both sides. The male threads let you screw on whatever your site uses: camlock adaptors, valves, flanges or a coupling to suit the tanker. It is the flexible link between a tanker, a pump and a storage tank on bulk fuel jobs.

If you offload by gravity from tanker outlets, the 100 mm hose with Barret coupling saves you an adaptor. For drive-off protection on the same line, add a 4″ breakaway coupling. Lengths of 6 m and 8 m are also available, priced on request.

Key features

100 mm (4″) bore, 4.5 m long
4″ male end fittings both sides
7 bar working pressure, 3:1 safety factor
Polypropylene lining with steel and aluminium wire helix
360 mm minimum bend radius, -30 °C to +80 °C

Where it works

Tanker operators in Gauteng and KZN, mine fuel bays in Limpopo, and large farms with bulk storage use a 4 inch composite fuel hose on suction and delivery lines of PTO pumps. It also suits transfer between storage tanks during cleaning or relocation. Keep the threads capped when not in use so grit does not damage the seals. Use thread tape or the correct gaskets on every joint, and pressure-check new connections with the pump at low speed before a full transfer. See the full range of fuel hoses and fittings.

What’s in the box

100 mm composite hose, 4.5 m, with 4″ male ends fitted

Delivery and warranty

Kamano delivers with its own trucks from Polokwane to all nine provinces, normally within 1 to 3 days. The 4.5 m hose ships at 27 kg, which falls in the up-to-30 kg band at R550. It travels coiled and wrapped. Orders of R20,000 or more (VAT incl.) travel free. Ask us for the warranty terms on this model.

Questions about this product

Can I get it longer than 4.5 m?

Yes, 6 m and 8 m versions are also made with the same construction and ends. The 6 m weighs about 34 kg and the 8 m about 45 kg, so both move into the 30 to 60 kg delivery band at R950. Ask us for a price on the longer lengths.

Will it work on the suction side of a pump?

Yes. The wire helix in composite hose keeps the bore open under suction, so it works on both the suction and delivery side of tanker and transfer pumps. Keep bends gentle, at least 360 mm radius, so the hose does not kink and starve the pump.

How much is delivery to East London?

The 4.5 m hose ships at 27 kg, so it falls in the up-to-30 kg band at R550 anywhere in South Africa, East London included. Our own trucks run from Polokwane and usually arrive in 1 to 3 days. Orders of R20,000 or more including VAT are delivered free.
