6-Inch Water-Filled Borehole Motor, 37 kW 525 V Three-Phase

Description

Overview

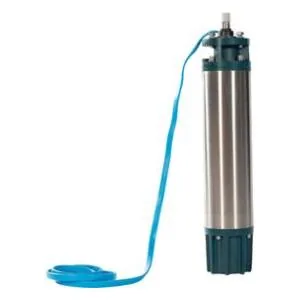

This 37 kW, 525 V water-filled 6-inch borehole motor is the submersible drive unit that sits below a multistage pump end and turns it. It is supplied with 8 m of motor lead and is rated to 35 bar. The borehole water itself fills the motor, so there is no oil to leak into the aquifer. Water-filled motors can usually be rewound if they burn out, which makes the unit a repairable asset rather than a throw-away part.

The 525 V rating draws less current than a 380 V motor of the same power, which eases cable and starter sizing on long drop cables and mine or large-scheme supplies. It suits these pump ends: 8VP 80-11, 8VP 98-09, SP46-24, SP60-18, SP60-20. Always match the motor power (kW) and voltage to your pump end and power supply. Not sure? Contact us with your pump model.

It needs a suitable starter panel, soft starter or VSD fitted by your electrician, and none is included.

Key features

• 37 kW rated output on a 525 V three-phase supply
• Six-inch motor diameter, 8 m of motor lead supplied
• Water-filled construction that can usually be rewound, pressure rating 35 bar
• Matches 5 listed pump end models
• Run it from a starter panel, soft starter or VSD

Where it works

A motor this size belongs on high-volume wellfields, mine dewatering and large irrigation schemes where deep pump settings and high head are normal and the supply is built to carry the load. If you are replacing a failed 37 kW unit or building up a new set, a 6 inch water filled borehole motor 37kw like this one keeps the job simple: pump end, motor, drop cable and starter, all sized together.

What’s in the box

• 6-inch water-filled submersible borehole motor, 37 kW 525 V
• 8 m motor lead

The pump end, starter or controller and drop cable are not included.

Delivery and warranty

Kamano delivers with its own trucks from Polokwane to all nine provinces in 1 to 3 days, including Richards Bay, Welkom, Klerksdorp, Johannesburg, Pretoria and Cape Town. This motor ships at about 141 kg, which means delivery is on quotation. Orders of R20,000 or more are delivered free (VAT incl.). Ask us for the warranty terms on this model.

See more in borehole pumps and motors, or compare the 6-inch water-filled borehole motor, 37 kW 380 V and the 6-inch water-filled borehole motor, 30 kW 525 V.
