4SD8/26 4 inch borehole pump 4kW 164m max head

4SD8/26 4 inch borehole pump 4kW 164m max head, pump end with stainless steel body

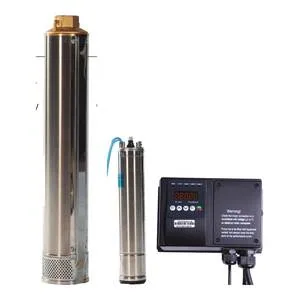

4SD8/26 4 inch borehole pump 4kW 164m max head, set with motor and controller

4SD8/26 4″ Borehole Pump, 4 kW, 164 m Max Head

SKU KMN-BORE-0188

The 4SD8/26 is a 4 kW, 164 m head 4 inch borehole pump for farms and homesteads, supplied as a set or pump end only and delivered across South Africa.

Price range: R2 384,00 through R22 104,00

Lifts water up to 164 m, up to 10.8 m³/h (180 L/min)
4 inch stainless steel multistage pump, 4 kW motor
Complete sets for 380 V three-phase, 525 V three-phase or pump end only
From R 2,384 VAT incl., delivered from Polokwane

Configuration

Clear

Request Bulk Quote Ask on WhatsApp

Delivered by our own trucks in 1 to 3 days. R550 / R950 / R1,450 by order weight. FREE on orders of R20,000 or more with code KH027. Delivery details

Specifications

Model	4SD8/26 (Vega 4SD8 range)
Pump diameter	4 inch, fits boreholes of 100 mm internal diameter or more
Flow rate	Nominal around 8 m³/h, up to 10.8 m³/h (180 L/min)
Max head / pressure	164 m
Duty points	0 L/min at 164 m; 20 L/min at 159 m; 40 L/min at 146 m; 60 L/min at 137 m; 80 L/min at 130 m; 100 L/min at 124 m; 120 L/min at 113 m; 140 L/min at 96 m; 160 L/min at 74 m; 180 L/min at 48 m
Power	4 kW oil-filled motor
Voltage / phase	380 V three-phase, 525 V three-phase, by option
Controller	Y1 digital protection controller, variable speed drive (VSD), by option
Inlet / outlet	On request
Self-priming	N/A (submersible)
Duty cycle	On request
Fluid compatibility	Clean borehole water
Pump body and shaft	Stainless steel
Net weight	40.5 kg
Shipping weight	48 kg
Dimensions	On request

Description

Overview

The 4SD8/26 is a 4 inch stainless steel multistage submersible borehole pump from the Vega 4SD8 range, with a maximum head of 164 m and up to 10.8 m³/h (180 L/min) at lower heads. At 100 L/min it still produces 124 m of head. This 4kw 4 inch borehole pump runs on a 4 kW oil-filled motor and fits boreholes with an internal diameter of 100 mm or more.

To size it, add the depth to the water level, the height up to your tank and about 10% for pipe friction. At 100 L/min this one suits a water level of roughly 100 m with 10 m of lift above ground. Send us your borehole details if you are unsure.

Key features

Stainless steel pump body and shaft, nominal flow around 8 m³/h
4 kW oil-filled motor in every set
Sold as a complete set or pump end only, to swap a worn wet end

Options

Prices include VAT.

380V 3-phase set + Y1 controller, R 9,672: pump end, 4 kW 380 V three-phase motor, digital protection.
525V 3-phase set + VSD, R 22,104: pump end, 4 kW 525 V three-phase motor, variable speed control.
Pump end only (no motor), R 2,384: wet end only, to replace a worn pump end on an existing 4 kW motor.

Where it works

Orchards and vineyards in the Western Cape and Limpopo often run a long delivery line from a deep borehole to a dam. The extra head of this 4 kW pump over the 3 kW size gives you room for that pipe run and the climb to the storage tank. See all borehole pumps, or compare the 4SD8/23 borehole pump and the 4SD8/30 borehole pump.

What’s in the box

The 4SD8/26 pump end
Motor and controller, in the complete-set options

Not included: submersible cable, rope, delivery pipe and base plate.

Delivery and warranty

Kamano delivers with its own trucks from Polokwane to all nine provinces in 1 to 3 days, including Cape Town, Durban, Kimberley, Upington, Gqeberha, Pietermaritzburg and George. Fees follow total order weight: up to 30 kg R550, 30 to 60 kg R950, 60 to 100 kg R1,450, over 100 kg on quotation. The heaviest option ships at about 48 kg, in the R950 band. Orders of R20,000 or more (VAT incl.) ship free. Ask us for the warranty terms on this model.

Questions about this product

Which 4SD8/26 option do I need for my power supply?

Choose the 380 V three-phase set with Y1 controller or the 525 V three-phase set with a VSD for your supply. Only the options listed under Options apply to this model, and the prices shown include VAT. Send us your supply details if you are unsure which set to order.

How deep can I set the 4SD8/26 in my borehole?

Add the depth to your water level, the height up to your tank and about 10% for friction. At 100 L/min this pump gives 124 m, which suits a water level of roughly 100 m with 10 m of lift above ground. Its shut-off head is 164 m. Deeper than that, you need a higher-head pump.

Do the sets come with cable and delivery pipe?

No. Submersible cable, rope, delivery pipe and the base plate are not included in any option, so add those to your order or supply them yourself. Each set includes only the pump end, motor and controller listed under its option, and the pump end option is the wet end alone.

How much is delivery of the 4SD8/26 to Upington?

We deliver to Upington with our own trucks in 1 to 3 days. Fees follow total order weight. The heaviest set ships at about 48 kg, in the R950 band. A pump end on its own is much lighter. Orders of R20,000 or more are delivered free.
