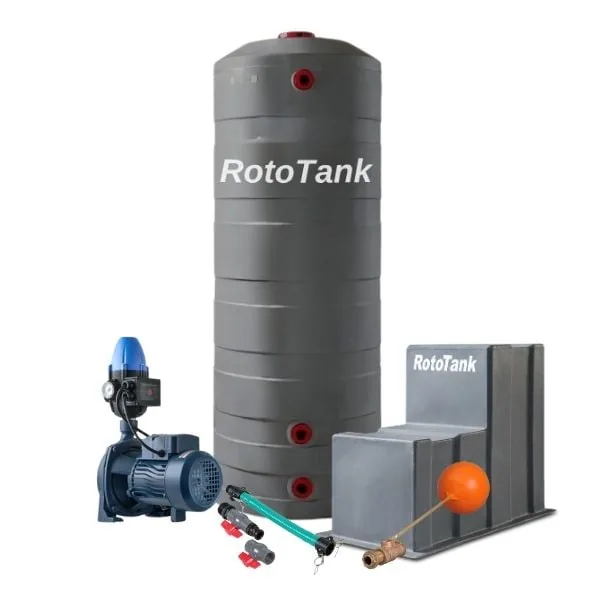

800 L vertical water tank and 0.75 kW end-suction pump combo

0.75 kW end-suction pump with flow controller from the 800 L tank combo

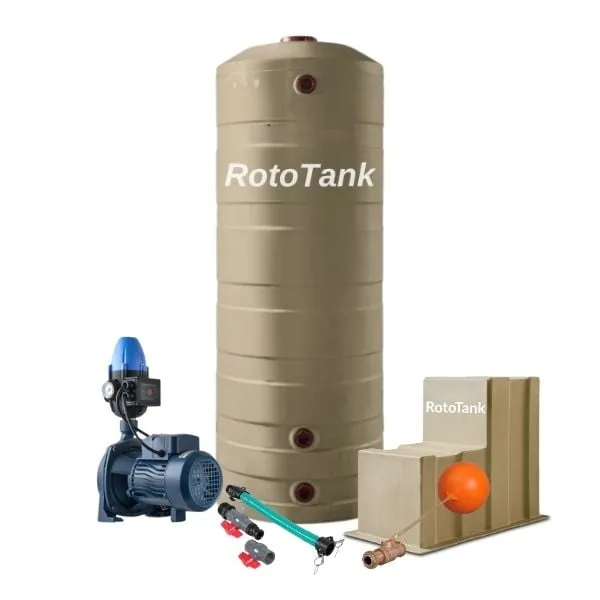

800 L water tank in tan, green and grey colour options

800 L Tank and 0.75 kW End-Suction Pump Combo with Flow Controller

SKU KMN-WATR-0461

An 800 L vertical water tank with a 0.75 kW end-suction pump and flow controller, for small homes and gardens, delivered across South Africa.

R5 428,00

800 L tank and 0.75 kW pump in one package
Up to 120 L/min, 32 m head, 7 m suction lift
Flow controller starts and stops the pump with demand
Narrow tank, 730 mm wide x 1950 mm high
Hose kit, float valve kit and pump cover included

Colour

Clear

Request Bulk Quote Ask on WhatsApp

Delivered by our own trucks in 1 to 3 days. R550 / R950 / R1,450 by order weight. FREE on orders of R20,000 or more with code KH027. Delivery details

Specifications

Tank capacity	800 L
Tank material	Food-grade LLDPE with black inner liner, UV resistant
Tank size	730 mm diameter x 1950 mm high
Tank fittings	40 mm top inlet, 2 x 40 mm base outlets, 180 mm lid
Pump	0.75 kW (1 HP) end-suction centrifugal, model CPM158
Max flow	120 L/min
Max head	32 m (3.2 bar)
Max suction lift	7 m
Control	DSK2 flow controller
Duty cycle	Continuous
Fluid temperature	Up to 60 degrees C (ambient up to 40 degrees C)
Pump materials	Cast iron body, brass impeller, ceramic and graphite seal, copper winding
Suction hose kit	25 mm x 300 mm hose, 2 ball valves, quick couplers, 40 to 25 mm reducing nipple
Float valve kit	150 mm float, 20 mm brass flat valve, fittings and tape
Pump cover	765 x 370 x 700 mm
Colours	Green, Grey or Tan, by option
Installation	Not included
Warranty	Tank: 1 to 2 years, depending on the model
Net weight	41 kg
Shipping weight	44 kg
Dimensions	730 x 730 x 1950 mm

Description

Overview

This 800 L tank and pump combo is the compact way to store water and pressurise it for a small home, a garden or an office. A narrow vertical 800 L tank comes with a 0.75 kW (1 HP) end-suction centrifugal pump, a flow controller, a suction hose kit, a float valve kit and a pump cover. It is a good fit where a wide tank will not go.

The tank is rotationally moulded from food-grade, UV-resistant LLDPE with a black inner liner that limits algae growth. It measures only 730 mm across but stands 1950 mm high, and it weighs 25 kg empty. The pump delivers up to 120 L/min, a maximum pressure of 3.2 bar and a head of 32 m, with a suction lift of up to 7 m. That is enough for a single or double storey house.

Key features

Single impeller centrifugal pump with a cast iron body and brass impeller
100% copper motor winding and a ceramic and graphite mechanical seal
DSK2 flow controller for automatic start and stop
Continuous duty, liquid temperature up to 60 degrees C
One 40 mm top inlet and two 40 mm base outlets on the tank
Brass float valve kit for a municipal inline feed

Options

Choose the tank colour: Green, Grey or Tan. Each is R 5,428 (VAT incl.) with the same pump, controller and kits.

Where it works

The slim tank suits a townhouse yard in Gauteng, a backyard flat in Durban, a holiday cottage in the Waterberg, or a garden shed that needs a water point. Two base outlets let you feed the house and the garden separately. Installation is not included. Look at the 800 L combo with a smart VSD pump, the 800 L combo with an HMS variable speed pump, or the full range of tank and pump combos.

What’s in the box

1 x vertical 800 L water tank
1 x 0.75 kW end-suction pump with DSK2 flow controller
1 x pump cover
1 x suction hose kit
1 x float valve kit

Delivery and warranty

Kamano delivers with its own trucks from Polokwane to all nine provinces in 1 to 3 days, including Johannesburg, Pretoria, Durban, Cape Town, Mbombela and Tzaneen. The combo ships at about 44 kg, which falls in the 30 to 60 kg band at R950. Orders of R20,000 or more are delivered free. Tank warranty: 1 to 2 years, depending on the model. Ask us for the warranty terms on the pump.

Questions about this product

Can this pump feed a double-storey house?

Yes, it is rated for a single or double storey property. It reaches a head of 32 m and 120 L/min. For a long run, several bathrooms or a hilly site, ask us about a larger pump before you order.

How high can the pump lift water from the tank?

The maximum suction lift is 7 m. In this combo the pump sits next to the tank, so the lift is small. The 7 m figure matters if you later use the pump on a lower source.

Is delivery to Tzaneen or Mbombela expensive?

The combo ships at about 44 kg, so it falls in the 30 to 60 kg band at R950. We deliver on our own trucks from Polokwane in 1 to 3 days. Orders of R20,000 or more are delivered free.
