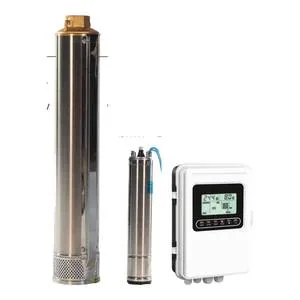

4SD4/8 borehole pump set with controller

4SD4/8 stainless steel pump end close-up

4SD4/8 4-Inch Borehole Pump, 0.55 kW, 60 m Max Head

SKU KMN-BORE-0229

The 4SD4/8 is a 4-inch stainless steel multistage borehole pump, 0.55 kW, lifting up to 60 m, supplied as a set or pump end only and delivered across South Africa.

Price range: R960,00 through R4 896,00

4-inch stainless steel multistage submersible, 0.55 kW, up to 60 m head
Flow up to 100 L/min; 10 L/min at 58 m and 50 L/min at 52 m
Choose a set on 220 V single-phase or 380 V three-phase, or the pump end alone from R 960 (VAT incl.)
Fits boreholes with an internal diameter of 100 mm or more

Configuration

Clear

Request Bulk Quote Ask on WhatsApp

Delivered by our own trucks in 1 to 3 days. R550 / R950 / R1,450 by order weight. FREE on orders of R20,000 or more with code KH027. Delivery details

Specifications

Pump type	4-inch multistage submersible borehole pump
Model	Vega 4SD4/8
Pump diameter	4 inch, fits boreholes of 100 mm internal diameter or more
Motor power	0.55 kW
Motor	0.55 kW 220 V single-phase or 380 V three-phase, oil-filled, by option
Controller	MA analogue control box or 20Y intelligent controller (220 V), Y1 digital protection controller (380 V)
Shut-off head	60 m
Maximum flow	100 L/min (6 m³/h)
Duty points	10 L/min at 58 m, 20 L/min at 57 m, 30 L/min at 56 m, 40 L/min at 54 m, 50 L/min at 52 m, 60 L/min at 48 m, 70 L/min at 44 m, 80 L/min at 39 m, 90 L/min at 33 m, 100 L/min at 25 m
Nominal flow	around 4 m³/h
Material	Stainless steel pump body and shaft
Self-priming	N/A (submersible)
Not included	Submersible cable, rope, delivery pipe and base plate
Net weight	11 kg
Shipping weight	16 kg
Dimensions	730 × 110 × 110 mm

Description

Overview

The 4SD4/8 is a 4-inch stainless steel multistage submersible borehole pump with a 0.55 kW motor rating, a shut-off head of 60 m and a flow of up to 100 L/min. It comes from the Vega 4SD4 range, which has a nominal flow of around 4 m³/h, and it fits boreholes with an internal diameter of 100 mm or more.

On the performance curve it still delivers 50 L/min at 52 m, and 10 L/min at 58 m at the lighter end. It suits shallow boreholes and low-lift jobs such as garden supply, filling a header tank or topping up a small reservoir on a smallholding.

Key features

Stainless steel pump body and shaft for long life in borehole water
Shut-off head of 60 m, with 50 L/min at 52 m at the middle of the curve
20Y intelligent controller option adds dry-run protection for low-yield boreholes
Pump end sold separately to fit an existing 0.55 kW motor

Options

Prices are VAT incl.

220V set with analogue control box, R 2,920: pump end, 0.55 kW 220 V single-phase motor and MA analogue control box.
220V set with 20Y intelligent controller, R 4,464: pump end, 0.55 kW 220 V single-phase motor and 20Y controller with dry-run protection.
380V three-phase set with Y1 controller, R 4,896: pump end, 0.55 kW 380 V three-phase motor and Y1 protection controller.
Pump end only, R 960: wet end only, to replace a worn pump end on an existing 0.55 kW motor.

Where it works

Typical jobs include Gauteng homes and smallholdings that want a borehole supply to run a house or garden through load-shedding. Browse more in our borehole pumps range, or compare the 4SD4/32 borehole pump (3 kW) and the 4SD4/10 borehole pump (0.75 kW).

To size it, add your water level depth, the height up to your tank and about 10% for pipe friction. The pump head at your flow must beat that total.

What’s in the box

4SD4/8 pump end
Motor and controller, per set chosen
Cable, rope, pipe and base plate not included

Delivery and warranty

Kamano delivers with its own trucks from Polokwane to all nine provinces in 1 to 3 days, including Johannesburg, Pretoria, Rustenburg, Polokwane and Mbombela. The heaviest option ships at about 16 kg, which falls in the R550 delivery band. Delivery is free on orders of R20,000 or more (VAT incl.). Ask us for the warranty terms on this model.

Questions about this product

Which 4SD4/8 option should I buy?

Choose the 220 V set if you only have single-phase power. The analogue box is the basic starter, and the 20Y controller adds dry-run protection, which is worth having on a low-yield borehole. The 380 V set suits three-phase supply and comes with the Y1 controller. If you are replacing a worn pump end on an existing 0.55 kW motor, buy the pump end only.

Does the price include cable and delivery pipe?

No. The sets cover the pump end, motor and controller only. Submersible cable, rope, delivery pipe and the base plate are not included, so allow for those when you plan the installation. We can help you work out the lengths if you send us your borehole depth.

Will the 4SD4/8 fit my borehole?

Yes, if the internal diameter is 100 mm or more. It is a 4-inch pump. Check the casing size and the water level first, then add the height to your tank and about 10% for friction, and compare that total head with the curve of 60 m at shut-off.

How much is delivery to Pretoria?

We deliver to Pretoria from Polokwane in 1 to 3 days. The heaviest option ships at about 16 kg, so it falls in the R550 delivery band. Fees go by total order weight: up to 30 kg R550, 30 to 60 kg R950, 60 to 100 kg R1,450, over 100 kg on quotation. Orders of R20,000 or more ship free.

Nationwide delivery from Polokwane

Delivered to all nine provinces in 1 to 3 days

We deliver the 4SD4/8 4-Inch Borehole Pump, 0.55 kW, 60 m Max Head with our own trucks to Johannesburg, Pretoria, Cape Town, Durban, Gqeberha, Bloemfontein, Polokwane, Mbombela, Upington, Stellenbosch, Tzaneen, George, eMalahleni and Klerksdorp, and to farms, mines and sites in between. This item ships in the R550 delivery band (up to 30 kg). Orders of R20,000 or more deliver free with code KH027.
