4SD12/7 4 inch stainless steel borehole pump, 1.5 kW, 47 m head

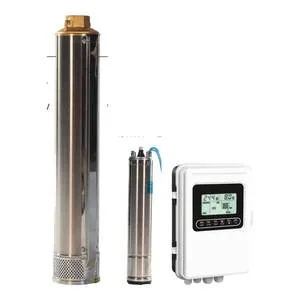

4SD12/7 multistage pump end with discharge outlet, 47 m max head

4SD12/7 borehole pump set with oil-filled 1.5 kW motor

4SD12/7 pump and motor with controller, 1.5 kW borehole set

4SD12/7 4 Inch Borehole Pump, 1.5 kW, 47 m Head

SKU KMN-BORE-0168

A 1.5 kW, 4 inch stainless steel borehole pump lifting to 47 m, sold as a complete set or pump end and delivered across South Africa.

Price range: R1 056,00 through R5 816,00

4 inch stainless steel multistage pump, 1.5 kW, up to 47 m head
Up to 16.2 m³/h; 120 L/min at 37 m
Complete sets or pump end only, from R 1,056 VAT incl.
Fits boreholes of 100 mm or more

Configuration

Clear

Request Bulk Quote Ask on WhatsApp

Delivered by our own trucks in 1 to 3 days. R550 / R950 / R1,450 by order weight. FREE on orders of R20,000 or more with code KH027. Delivery details

Specifications

Model	4SD12/7 (4 inch multistage submersible, 4SD12 range)
Pump diameter	4 inch, fits boreholes of 100 mm internal diameter or more
Pump body and shaft	Stainless steel
Motor power	1.5 kW, oil-filled
Motor voltage	220 V single-phase, 380 V three-phase, by option
Controller	MA analogue control box, 20Y intelligent controller with dry-run protection, Y1 digital protection controller, by option
Nominal flow	Around 12 m³/h
Maximum flow	16.2 m³/h (270 L/min)
Maximum head	47 m at zero flow
Performance curve	0 L/min: 47 m; 30 L/min: 46 m; 60 L/min: 43 m; 90 L/min: 39 m; 120 L/min: 37 m; 150 L/min: 34 m; 180 L/min: 31 m; 210 L/min: 26 m; 240 L/min: 21 m; 270 L/min: 12 m
Self-priming	N/A (submersible)
Not included	Submersible cable, rope, delivery pipe and base plate
Net weight	20 kg
Shipping weight	24 kg
Dimensions	On request

Description

Overview

The 4SD12/7 is a 4 inch stainless steel multistage submersible borehole pump with a 1.5 kW motor, built for small households, garden supply and stock water on shallow boreholes. It lifts to 47 m with the outlet closed and passes up to 16.2 m³/h at the end of its curve. In between it delivers 120 L/min at 37 m.

Buy a complete set for your power supply, or just the pump end to replace a worn wet end on an existing 1.5 kW motor.

To size it, add your water level depth, the climb to the tank and about 10% for pipe friction; the head at your flow must beat that total. Send us your borehole details if unsure. Browse our borehole pumps, or compare the 4SD10/8 pump, 54 m head and the 4SD10/9 pump, 61 m head.

Key features

Stainless steel pump body and shaft.
4 inch diameter, fits boreholes of 100 mm internal diameter or more.
1.5 kW oil-filled motor, 220 V single-phase or 380 V three-phase by option.
20Y controller adds dry-run protection for low-yield boreholes.

Options

220 V set with analogue control box, R 3,952: Pump end, 1.5 kW 220 V single-phase oil-filled motor, MA analogue control box.
220 V set with 20Y intelligent controller, R 5,432: Pump end, 1.5 kW 220 V single-phase motor, 20Y intelligent controller with dry-run protection, our pick for low-yield boreholes.
380 V three-phase set with Y1 controller, R 5,816: Pump end, 1.5 kW 380 V three-phase motor, Y1 digital protection controller.
Pump end only, no motor, R 1,056: Wet end only, to replace a worn pump end on an existing 1.5 kW motor.

Where it works

A light-duty lifter at 47 m of head: homesteads, gardens and stock troughs on shallow boreholes, common with Mpumalanga growers and smallholdings running boreholes beside the coal belt.

What’s in the box

The 4SD12/7 pump end, plus the motor and controller for your chosen set.
Not included: submersible cable, rope, delivery pipe and base plate.

Delivery and warranty

Kamano delivers with its own trucks from Polokwane to all nine provinces in 1 to 3 days, including Johannesburg, Durban, Polokwane, Kimberley, George and Tzaneen. A complete set ships at about 24 kg, so delivery is R 550; orders of R20,000 or more (VAT incl.) go free. Ask us for the warranty terms on this model.

Questions about this product

Which 4SD12/7 option suits my power supply?

Single-phase 220 V supply: take the analogue box set, or the 20Y set if the yield is low, since the 20Y adds dry-run protection. Three-phase 380 V: choose the Y1 set. If only the wet end is worn, buy the pump end for R 1,056 and keep your 1.5 kW motor.

What flow will the 4SD12/7 give at my borehole depth?

It gives 60 L/min at 43 m, 120 L/min at 37 m and 210 L/min at 26 m, with 47 m at zero flow. Add your water level depth, the climb to your tank and about 10% for pipe friction, then pick a point on the curve above that total. Send us your borehole details and we will check the match before you order.

Do you deliver the 4SD12/7 to Durban?

Yes. We deliver with our own trucks from Polokwane to Durban and every other province in 1 to 3 days. A complete set ships at about 24 kg, so the delivery fee is R 550 for that weight band. Orders from R20,000 (VAT incl.) are delivered free, so a set plus cable and pipe can qualify.

What else do I need to install a 1.5 kW borehole pump?

You still need submersible cable, rope, delivery pipe and a base plate, as none are included. The pump fits boreholes of 100 mm internal diameter or more. Get the cable size from your supplier based on the motor current and the depth, and have the installation done by a competent borehole installer.
