4″ Borehole Motor and Control Box, 1.1 kW, 220 V Single-Phase

Description

Overview

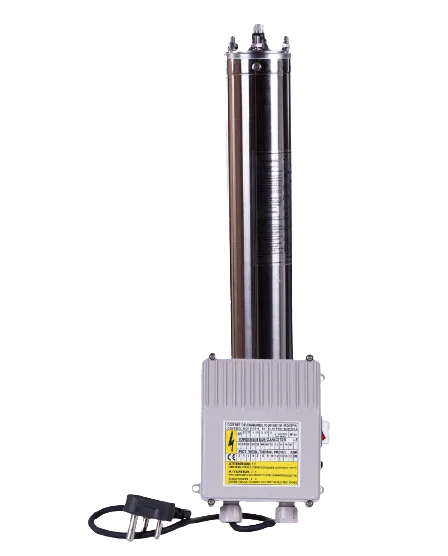

This is a 4 inch single-phase submersible borehole motor rated 1.1 kW (1.5 HP), supplied with a control box. It runs on 220 to 240 V at 50 Hz and draws 5.9 A when running. The stainless steel casing is only 95 mm across at its widest, so it goes down the same 4 inch boreholes as the pump ends it drives.

Use this 4 inch borehole motor 1.1kw to replace a failed motor or to power a new pump end. The motor length is 399 mm and the motor alone weighs 10.6 kg, which helps when you plan the rope and the lifting gear. Match the kW to your pump end, because a motor that is too small will trip and one that is too large wastes money. Ask us if you are not sure which pump end this motor suits.

Key features

• 1.1 kW (1.5 HP) single-phase motor, 2850 rpm, 220 to 240 V at 50 Hz
• IP68 protection grade with insulation class B
• Stainless steel motor casing, maximum diameter 95 mm
• Sand proof cover, pressure balance membrane and mechanical seal
• Handles liquid up to 35 degrees Celsius and up to 40 g/m³ of solids
• Running current 5.9 A, length 399 mm, motor weight 10.6 kg

Where it works

Livestock water and small irrigation blocks in the Free State and the Western Cape often call for this size, and it is a popular replacement when a pump end is kept and only the motor has failed. Browse more borehole pumps, or look at the 4SD8/7 borehole pump and the 4SD8/8 borehole pump if you also need a pump end.

What’s in the box

• 1.1 kW 4 inch single-phase submersible motor
• Control box

Pump end, cable, rope and delivery pipe are not included. Price R 3,036 (VAT incl.).

Delivery and warranty

Kamano delivers with its own trucks from Polokwane to all nine provinces in 1 to 3 days, including Durban, Richards Bay, East London, Johannesburg, Bloemfontein and Polokwane. Fees follow total order weight: up to 30 kg R550, 30 to 60 kg R950, 60 to 100 kg R1,450, over 100 kg on quotation. This unit ships at about 15 kg, in the R550 band. Orders of R20,000 or more (VAT incl.) ship free. Ask us for the warranty terms on this model.
