36 L Pressure Tank, Vertical or Horizontal, 8 Bar, 1″ Port

Description

Overview

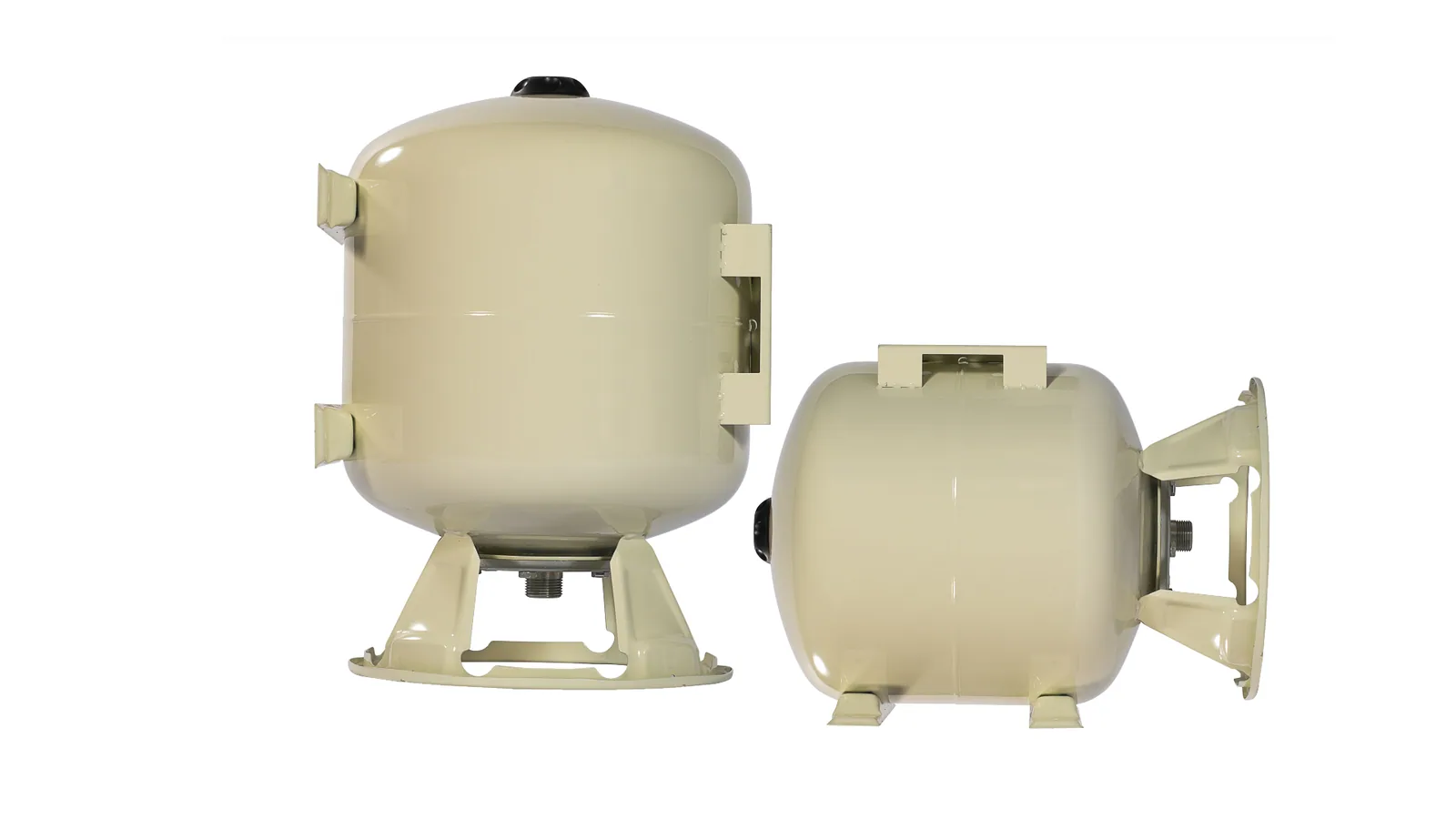

This 36 litre pressure tank mounts either upright or on its side, so it fits tight pump sheds where a tall vessel will not. A carbon steel shell holds an EPDM bladder that separates the water from the air cushion, and the working pressure is 8 bar. It stores pressurised water for a booster pump, which prevents start-ups for demands smaller than its storage volume. See the rest of our pump controllers and VSD accessories for matching controllers.

The 1″ (25 mm) connection takes a standard five-way fitting with a pressure switch and gauge. Orientation is your choice, so you can place it under a bench, against a wall or beside the pump.

Key features

• Capacity: 36 litres
• Vertical or horizontal installation
• Carbon steel tank
• EPDM bladder rated 0 to 99 degrees C
• Working pressure: 8 bar
• Connection: 1″ / 25 mm
• Ambient temperature up to 45 degrees C

Where it works

Thirty-six litres suits a small to medium house, a farm cottage on a Limpopo borehole or a school ablution block running off a booster. Where ceiling height is limited, lay the tank flat beside the pump. Installers regularly pair it with a flexible hose and a five-way fitting, such as our 25 mm brass five-way connector. For more storage see the 50 L vertical or horizontal pressure tank.

What’s in the box

• 1 x 36 L carbon steel pressure tank with EPDM bladder

Delivery and warranty

Kamano delivers with its own trucks from Polokwane to all nine provinces in 1 to 3 days, including Bloemfontein, Welkom, Kimberley, Johannesburg, Polokwane and Klerksdorp. Fees are set by total order weight. At a shipping weight of about 8.5 kg this item falls in the up to 30 kg band (R550), and orders of R20,000 or more (VAT incl.) are delivered free.

Tank warranty: 1 to 2 years, depending on the model.
