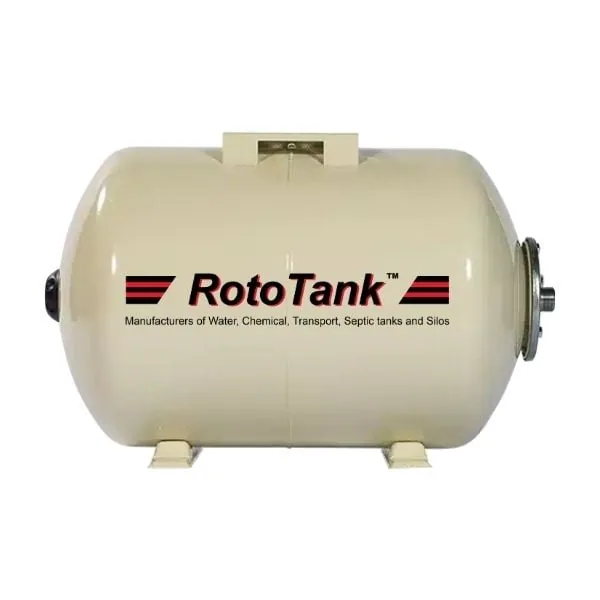

100 L Pressure Vessel, Vertical or Horizontal, 8 Bar, Carbon Steel
SKU KMN-PACC-0007
A 100 litre carbon steel pressure vessel, vertical or horizontal, for booster pump systems, delivered across South Africa.
Price range: R2 011,00 through R2 041,00
- 100 litres of pressurised storage
- Vertical (R 2,011) or horizontal (R 2,041), VAT incl.
- Carbon steel tank, EPDM bladder, 8 bar maximum
- Delivered nationwide from Polokwane
Delivered by our own trucks in 1 to 3 days. R550 / R950 / R1,450 by order weight. FREE on orders of R20,000 or more with code KH027. Delivery details
Specifications
| Capacity | 100 litres |
|---|---|
| Options | Vertical or horizontal |
| Tank material | Carbon steel |
| Bladder | EPDM |
| Working pressure | 8 bar |
| Connections | 1" to 1 1/4" BSP |
| Bladder temperature range | 0 to 99 degrees C |
| Ambient temperature | Up to 45 degrees C |
| Model codes | 20040012 (vertical), 2004116 (horizontal) |
| Net weight | 17 kg |
| Shipping weight | 19 kg |
| Dimensions | 450 x 450 x 800 mm |
Description
Overview
This 100 litre pressure vessel is the big buffer for a booster pump system. It stores pressurised water in an EPDM bladder so the pump does not have to run every time water is drawn, and it keeps pressure steady for taps, showers and irrigation. It comes in vertical and horizontal versions, rated to 8 bar, with a carbon steel tank. You will find the smaller sizes too in our pump spares and accessories.
With 100 litres of storage the pump rests for longer between cycles, which lowers electricity use and wear. The vessel also absorbs pressure surges and reduces water hammer on the pipework.
Key features
- Capacity: 100 litres
- Carbon steel tank
- EPDM bladder, 0 to 99 degrees C
- Vertical and horizontal models
- BSP connections, 1″ to 1 1/4″
- Working pressure: 8 bar
- Ambient temperature up to 45 degrees C
- Suits booster pump systems
Options
Both versions share the same 100 L construction. Choose by how you want to install it.
- Pressure Vessel 100 L Vertical (code 20040012): R 2,011 (VAT incl.)
- Pressure Vessel 100 L Horizontal (code 2004116): R 2,041 (VAT incl.)
The vertical version needs the least floor space. The horizontal one lies on its side and suits low pump sheds.
Where it works
A 100 litre vessel is the right size for a farm homestead with several outlets, a guest lodge, a school ablution block or a small irrigation set. In Limpopo and the Free State, installers use it to cut the starts on borehole boosters. Fit it with a flexible hose and a five-way fitting, such as the 25 mm anti-vibration flexible hose, and see the smaller 36 L and 50 L pressure vessels for lighter demand.
What’s in the box
- 1 x 100 L pressure vessel in the option you choose: vertical or horizontal
Delivery and warranty
Kamano delivers with its own trucks from Polokwane to all nine provinces in 1 to 3 days, including Bloemfontein, Welkom, Kimberley, Johannesburg, Pretoria and Polokwane. Fees are set by total order weight. At a shipping weight of about 19 kg this item falls in the up to 30 kg band (R550), and orders of R20,000 or more (VAT incl.) are delivered free.
Ask us for the warranty terms on this model.
Questions about this product
Is a 100 litre pressure vessel too big for a house?
Not usually. A large vessel gives the pump longer rests and steadier pressure, which suits homes with several bathrooms or a garden line. For a small house with one bathroom, a 36 L or 50 L vessel is enough and cheaper to buy.
Should I buy the vertical or the horizontal version?
Choose vertical if you have the headroom and want the smallest footprint. Choose horizontal for low pump sheds or where a long, low vessel fits better. The construction, capacity and 8 bar rating are the same. The horizontal costs R 30 more.
Do you deliver a 100 L pressure vessel to Bloemfontein?
Yes. Kamano delivers with its own trucks from Polokwane to all nine provinces in 1 to 3 days, and Bloemfontein is covered. At a shipping weight of about 19 kg this item falls in the up to 30 kg band (R550). Orders of R20,000 or more (VAT incl.) are delivered free, so pairing it with your pump or fittings can save the fee. Send us the delivery address for a firm date.
