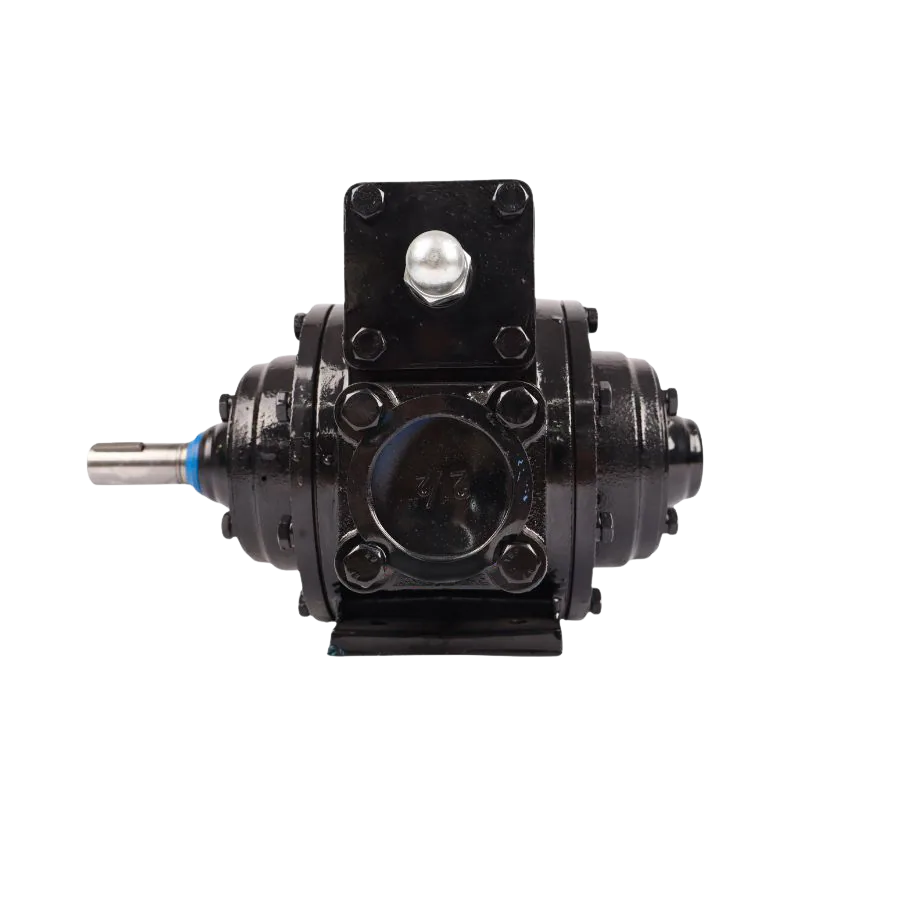

YB-65 2.5 inch cast iron single-shaft PTO vane pump, 300 to 500 L/min

YB-65 2.5″ PTO Vane Pump, 300 to 500 L/min, Single Shaft

Name: YB-65 2.5" PTO Vane Pump, 300 to 500 L/min, Single Shaft
SKU: KMN-FUEL-0333
Price: 16254.00 ZAR
Availability: InStock

SKU KMN-FUEL-0333

A cast iron 2.5" single-shaft YB-65 PTO vane pump moving 300 to 500 L/min, for bulk diesel transfer. Delivered nationwide.

R16 254,00

300 to 500 L/min through 2.5″ ports
Cast iron, single-shaft drive
Self-priming, 3.45 bar working pressure
47 kg shipping weight

Delivered by our own trucks in 1 to 3 days. R550 / R950 / R1,450 by order weight. FREE on orders of R20,000 or more with code KH027. Delivery details

Specifications

Flow rate	300 to 500 L/min
Max head / pressure	3.45 bar
Voltage / phase	N/A (PTO driven)
Power	On request
Speed	400 to 640 rpm
Inlet / outlet	2.5" (65 mm)
Self-priming	Yes
Duty cycle	On request
Fluid compatibility	Diesel and similar fuel oils; ask us about other fluids
Body material	Cast iron
Shaft	Single
Net weight	40 kg
Shipping weight	47 kg
Dimensions	390 × 300 × 280 mm

Description

Overview

The YB-65 single shaft is a cast iron 2.5 inch PTO vane pump delivering 300 to 500 L/min at 400 to 640 rpm, up to 3.45 bar. It is self-priming with one drive shaft, and at 40 kg net it is 7 kg lighter than the double-shaft model. Choose it when you want high flow and a simpler drive line.

Specification summary for the yb-65 pto vane pump: flow rate 300 to 500 L/min; max head / pressure 3.45 bar; speed 400 to 640 rpm; inlet / outlet 2.5″ (65 mm); self-priming Yes; fluid compatibility diesel and similar fuel oils; ask us about other fluids; body material cast iron.

Key features

300 to 500 L/min flow
2.5″ ports for high-volume hose
Cast iron body, single shaft
Self-priming vane design
Working pressure of 3.45 bar

Where it works

For a Free State grain farm filling a bowser, a Limpopo transport depot unloading road tankers or a Mpumalanga mine contractor topping up fuel, this is the high-flow option in the range. Use it when the 300 L/min ceiling of the YB-50 is too slow, but you do not need the 3 inch YB-80. Related kit: YB-65 PTO Vane Pump, Double Shaft and YB-80 3″ PTO Vane Pump. Browse more PTO vane pumps.

What’s in the box

YB-65 single-shaft PTO vane pump

Delivery and warranty

Kamano delivers with its own trucks from Polokwane to all nine provinces in 1 to 3 days. Order the yb-65 pto vane pump online and we ship it from Polokwane. Delivery is charged by total order weight, and free delivery applies on orders of R20,000 or more (VAT incl.). Shipping weight: 47 kg. Ask us for the warranty terms on this model.

Freight is set by the combined weight of your order. This item sits in the 30 to 60 kg band at R950, and extra parts added to the same order only raise the fee if they push the total into the next band. Send us your site address and we will confirm the exact delivery charge before you pay.

Questions about this product

What is the weight of this pump?

It is 40 kg net and 47 kg as shipped. That puts it in the 30 to 60 kg delivery band, so on its own the delivery fee is R950. Two people can lift it onto a frame, but use a hoist or trolley if you are mounting it above waist height.

Single or double shaft, which should I buy?

Buy the single shaft if your tractor's PTO connects straight to one end of the pump, which suits most setups and saves 7 kg. Buy the double shaft if your frame needs a drive connection from either side. Both give the same 300 to 500 L/min.

Do you deliver to Pietermaritzburg and what does it cost?

Yes, we deliver to all nine provinces on our own trucks, normally in 1 to 3 days from Polokwane. This item ships at 47 kg, which is the 30 to 60 kg band: R950 if it is the only item in the order. Orders of R20,000 or more VAT incl. ship free, so adding a hose and couplings can make freight free.

Nationwide delivery from Polokwane

Delivered to all nine provinces in 1 to 3 days

We deliver the YB-65 2.5" PTO Vane Pump, 300 to 500 L/min, Single Shaft with our own trucks to Johannesburg, Pretoria, Cape Town, Durban, Gqeberha, Bloemfontein, Polokwane, Mbombela, eMalahleni, Kimberley, Tzaneen, Welkom, Secunda and Rustenburg, and to farms, mines and sites in between. This item ships in the R950 delivery band (30 to 60 kg). Orders of R20,000 or more deliver free with code KH027.
