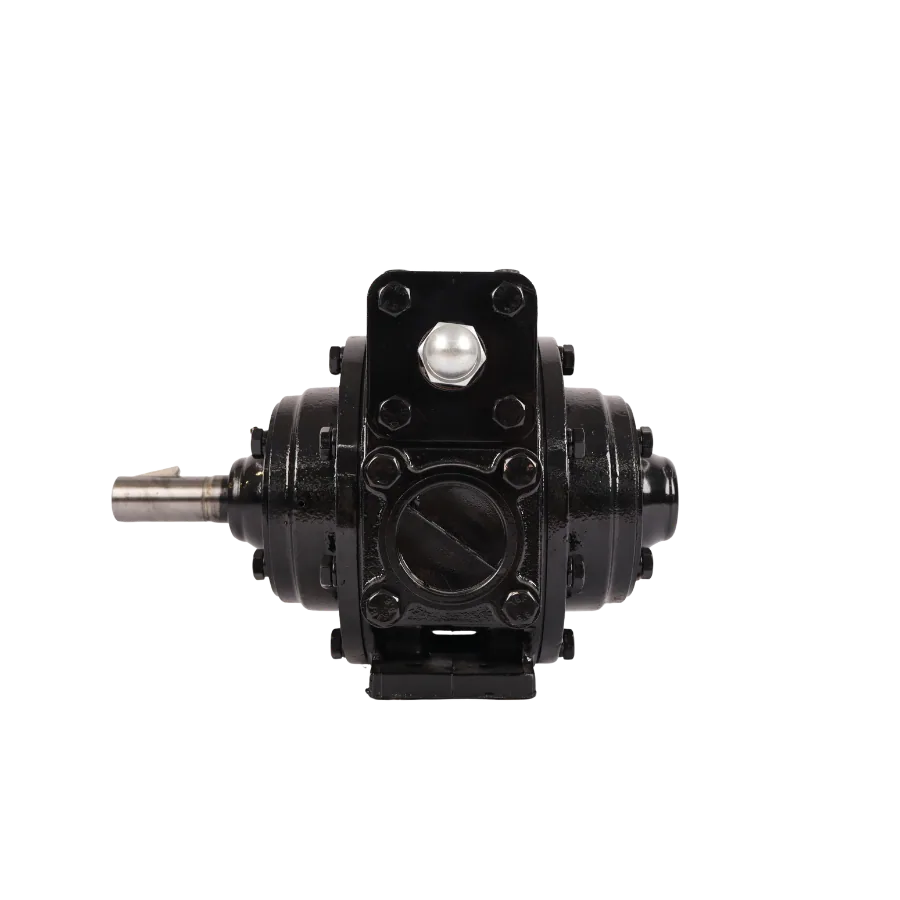

YB-50 2 inch cast iron single-shaft PTO vane pump, 150 to 300 L/min

YB-50 2″ PTO Vane Pump, 150 to 300 L/min, Single Shaft

Name: YB-50 2" PTO Vane Pump, 150 to 300 L/min, Single Shaft
SKU: KMN-FUEL-0331
Price: 12710.25 ZAR
Availability: InStock

SKU KMN-FUEL-0331

A cast iron 2" single-shaft YB-50 PTO vane pump moving 150 to 300 L/min, built for farm and contractor fuel transfer. Delivered nationwide.

R12 710,25

150 to 300 L/min across 400 to 640 rpm
Cast iron body, single shaft
Self-priming, 3.45 bar working pressure
34 kg shipping weight

Delivered by our own trucks in 1 to 3 days. R550 / R950 / R1,450 by order weight. FREE on orders of R20,000 or more with code KH027. Delivery details

Specifications

Flow rate	150 to 300 L/min
Max head / pressure	3.45 bar
Voltage / phase	N/A (PTO driven)
Power	On request
Speed	400 to 640 rpm
Inlet / outlet	2" (50 mm)
Self-priming	Yes
Duty cycle	On request
Fluid compatibility	Diesel and similar fuel oils; ask us about other fluids
Body material	Cast iron
Shaft	Single
Net weight	31 kg
Shipping weight	34 kg
Dimensions	280 × 250 × 250 mm

Description

Overview

The YB-50 single shaft is a cast iron 2 inch PTO vane pump delivering 150 to 300 L/min over 400 to 640 rpm, at up to 3.45 bar. It is self-priming and uses one drive shaft, so it connects to the tractor PTO in the usual way. The cast iron body suits the knocks of daily farm and contractor use.

Specification summary for the yb-50 pto vane pump: flow rate 150 to 300 L/min; max head / pressure 3.45 bar; speed 400 to 640 rpm; inlet / outlet 2″ (50 mm); self-priming Yes; fluid compatibility diesel and similar fuel oils; ask us about other fluids; body material cast iron.

Key features

150 to 300 L/min flow
Cast iron pump body
400 to 640 rpm drive speed
Self-priming design
Working pressure of 3.45 bar

Where it works

Farm bowsers in Limpopo, bulk tanks on Free State grain farms and contractor yards in Mpumalanga all use pumps like this one to turn a tractor into a fuel station. Choose it over the SUB40 when you want more flow, and over the 2.5 inch YB-65 when 300 L/min is plenty. Related kit: YB-50 PTO Vane Pump, Double Shaft and SUB40 PTO Vane Pump 180 L/min. Browse more PTO vane pumps.

What’s in the box

YB-50 single-shaft PTO vane pump

Delivery and warranty

Kamano delivers with its own trucks from Polokwane to all nine provinces in 1 to 3 days. Order the yb-50 pto vane pump online and we ship it from Polokwane. Delivery is charged by total order weight, and free delivery applies on orders of R20,000 or more (VAT incl.). Shipping weight: 34 kg. Ask us for the warranty terms on this model.

Freight is set by the combined weight of your order. This item sits in the 30 to 60 kg band at R950, and extra parts added to the same order only raise the fee if they push the total into the next band. Send us your site address and we will confirm the exact delivery charge before you pay.

Questions about this product

Is the YB-50 single shaft cast iron?

Yes, the single-shaft version has a cast iron body. That makes it heavier than the double-shaft version, which our data lists as aluminium, but it stands up better to the knocks of tractor and bowser work. It weighs 31 kg net and 34 kg shipped.

Will it run diesel from a drum?

Yes. As a self-priming vane pump it lifts diesel from a drum or tank through a suction hose, as long as the hose is airtight and the lift is modest. Use a 50 mm hose with a steel helix so the suction side does not collapse under load.

Do you deliver to Nelspruit and what does it cost?

Yes, we deliver to all nine provinces on our own trucks, normally in 1 to 3 days from Polokwane. This item ships at 34 kg, which is the 30 to 60 kg band: R950 if it is the only item in the order. Orders of R20,000 or more VAT incl. ship free, so adding a hose and fittings can make freight free.

Nationwide delivery from Polokwane

Delivered to all nine provinces in 1 to 3 days

We deliver the YB-50 2" PTO Vane Pump, 150 to 300 L/min, Single Shaft with our own trucks to Johannesburg, Pretoria, Cape Town, Durban, Gqeberha, Bloemfontein, Polokwane, Mbombela, Kimberley, Pietermaritzburg, East London, eMalahleni, Welkom and Thohoyandou, and to farms, mines and sites in between. This item ships in the R950 delivery band (30 to 60 kg). Orders of R20,000 or more deliver free with code KH027.
