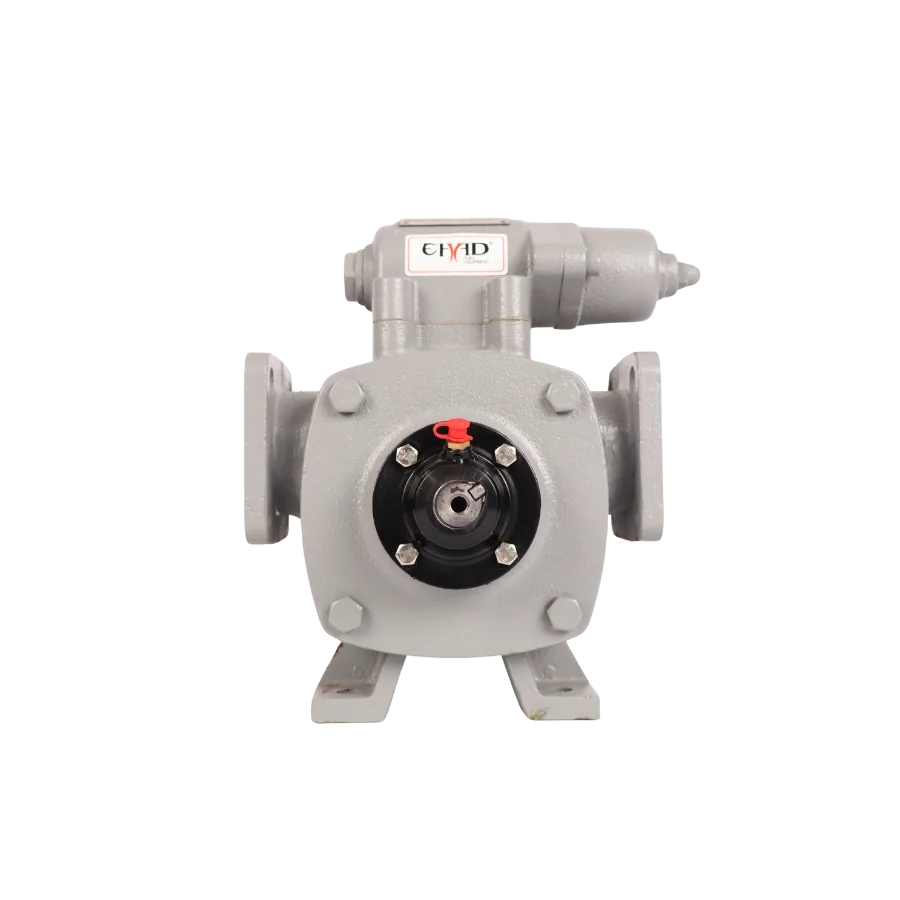

SUB40 cast iron single-shaft PTO vane pump, 1.5 inch ports, 180 L/min

SUB40 1.5″ PTO Vane Pump, 180 L/min, Single Shaft

Name: SUB40 1.5" PTO Vane Pump, 180 L/min, Single Shaft
SKU: KMN-FUEL-0328
Price: 13702.50 ZAR
Availability: InStock

SKU KMN-FUEL-0328

A cast iron 1-1/2" single-shaft PTO vane pump moving 180 L/min of fuel, for farms and contractors. Delivered nationwide.

R13 702,50

180 L/min from a 1-1/2″ (40 mm) pump
Self-priming cast iron vane pump
1050 rpm rated speed, 1.5 kW input
25 kg shipping weight

Delivered by our own trucks in 1 to 3 days. R550 / R950 / R1,450 by order weight. FREE on orders of R20,000 or more with code KH027. Delivery details

Specifications

Flow rate	180 L/min
Max head / pressure	5 bar working; vacuum 0.06 MPa
Voltage / phase	N/A (PTO driven)
Power	1.5 kW input
Speed	1050 rpm
Inlet / outlet	1-1/2" (40 mm)
Self-priming	Yes
Duty cycle	On request
Fluid compatibility	Diesel and similar fuel oils; ask us about other fluids
Body material	Cast iron
Shaft	Single
Net weight	21 kg
Shipping weight	25 kg
Dimensions	270 × 210 × 280 mm

Description

Overview

The SUB40 is a pto vane pump 40mm that delivers 180 L/min through 1-1/2 inch (40 mm) ports. It is a cast iron, self-priming, single-shaft vane pump rated at 1050 rpm, needing about 1.5 kW input. It is the smallest of our SUB and YB PTO vane pumps and a good fit for light farm and contractor duty.

Specification summary for the pto vane pump 40mm: flow rate 180 L/min; max head / pressure 5 bar working; vacuum 0.06 MPa; power 1.5 kW input; speed 1050 rpm; inlet / outlet 1-1/2″ (40 mm); self-priming Yes; fluid compatibility diesel and similar fuel oils; ask us about other fluids.

Key features

180 L/min flow rate
Self-priming vane design
Rated speed of 1050 rpm, 1.5 kW input
Working pressure of 5 bar, vacuum of 0.06 MPa
Cast iron body, single shaft

Where it works

Diesel moves from a tanker into a farm tank, or from a bulk tank into a bowser, and a PTO pump gets it done without electricity. That matters on Limpopo and Free State farms with unreliable power. It also suits contractors on remote sites. For bigger flows, step up to the SUB50 or a YB pump. Related kit: SUB50 PTO Vane Pump 300 L/min and YB-65 PTO Vane Pump, Single Shaft. Browse more PTO vane pumps.

What’s in the box

SUB40 PTO vane pump, cast iron

Delivery and warranty

Kamano delivers with its own trucks from Polokwane to all nine provinces in 1 to 3 days. Order the pto vane pump 40mm online and we ship it from Polokwane. Delivery is charged by total order weight, and free delivery applies on orders of R20,000 or more (VAT incl.). Shipping weight: 25 kg. Ask us for the warranty terms on this model.

Freight is set by the combined weight of your order. This item sits in the up to 30 kg band at R550, and extra parts added to the same order only raise the fee if they push the total into the next band. Send us your site address and we will confirm the exact delivery charge before you pay.

Questions about this product

Do I need electricity to run it?

No. This is a PTO-driven pump, so it runs from a tractor's power take-off and needs no mains power. That is a real advantage during load-shedding or on remote lands. Check your tractor's PTO speed against the pump's 1050 rpm rating, and use the right drive shaft.

What hose should I use with it?

The pump has 1-1/2 inch (40 mm) ports, so a 38 mm hose is the natural match. We stock a double-braided 38 mm hose with a steel helix, sold per metre, which will not collapse on the suction side. Add couplings to suit your tank connections.

Do you deliver to Vryburg and what does it cost?

Yes, we deliver to all nine provinces on our own trucks, normally in 1 to 3 days from Polokwane. This item ships at 25 kg, which is the up to 30 kg band: R550 if it is the only item in the order. Orders of R20,000 or more VAT incl. ship free, so adding a 38 mm hose can make freight free.

Nationwide delivery from Polokwane

Delivered to all nine provinces in 1 to 3 days

We deliver the SUB40 1.5" PTO Vane Pump, 180 L/min, Single Shaft with our own trucks to Johannesburg, Pretoria, Cape Town, Durban, Gqeberha, Bloemfontein, Polokwane, Mbombela, George, Kimberley, Thohoyandou, Secunda, eMalahleni and Welkom, and to farms, mines and sites in between. This item ships in the R550 delivery band (up to 30 kg). Orders of R20,000 or more deliver free with code KH027.
