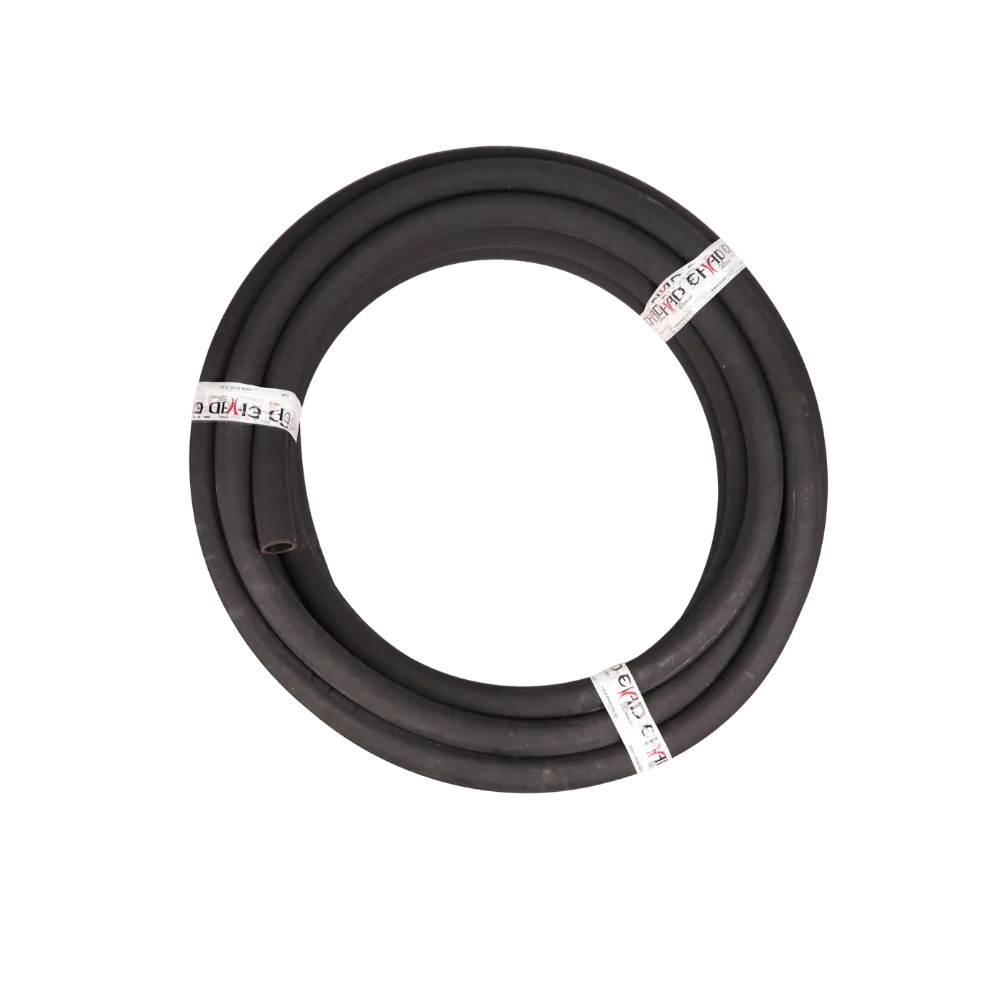

38 mm double braided NBR PTO pump hose with steel helix, sold per metre

38 mm PTO Pump Hose, Double Braided NBR, Sold Per Metre

Name: 38 mm PTO Pump Hose, Double Braided NBR, Sold Per Metre
SKU: KMN-FUEL-0327
Price: 467.78 ZAR
Availability: InStock

SKU KMN-FUEL-0327

A 38 mm (1-1/2") braided, steel-reinforced NBR hose for PTO vane pumps, sold by the metre. Delivered nationwide from Polokwane.

R467,78

38 mm (1-1/2″) bore, 50 mm outside diameter
10 bar working pressure, 30 bar burst
Polyester braid with steel helix and anti-static wire
Sold per metre, 40 m roll available

Delivered by our own trucks in 1 to 3 days. R550 / R950 / R1,450 by order weight. FREE on orders of R20,000 or more with code KH027. Delivery details

Specifications

Inside diameter	38 mm (1-1/2")
Outer diameter	50 mm
Working pressure	10 bar
Burst pressure	30 bar
Material	NBR inner tube, polyester braid, steel helix, anti-static copper wire, synthetic rubber cover
Temperature range	-20 to +60 °C
Unit of sale	Per metre (40 m roll available)
Fluid compatibility	Oil-resistant NBR tube; ask us to confirm your fluid
Net weight	1.21 kg per metre
Shipping weight	1.3 kg per metre
Dimensions	On request (sold per metre, 38 mm bore, 50 mm outside diameter)

Description

Overview

This pto pump hose 38mm is a double-braided NBR hose with a 38 mm (1-1/2 inch) bore and 50 mm outside diameter, sold per metre. It has a steel helix and an anti-static copper wire, works to 10 bar and bursts at 30 bar. Use it on the suction or delivery side of a PTO vane pump.

Specification summary for the pto pump hose 38mm: inside diameter 38 mm (1-1/2″); outer diameter 50 mm; working pressure 10 bar; burst pressure 30 bar; material NBR inner tube, polyester braid, steel helix, anti-static copper wire, synthetic rubber cover; temperature range -20 to +60 °C; unit of sale per metre (40 m roll available).

Key features

38 mm inside diameter, 50 mm outside diameter
10 bar working pressure and 30 bar burst
NBR tube with polyester braid and steel helix
Anti-static copper wire
Temperature range of -20 to +60 °C

Where it works

A PTO vane pump is only as good as its hose. On a farm bowser in the Free State or a tanker unloading in Limpopo, a steel helix stops the hose collapsing under suction. Order the length you need, plus a spare for fittings. Pair it with a YB-50 or SUB40 pump from the range below. Related kit: YB-50 PTO Vane Pump, Single Shaft and YB-50 PTO Vane Pump, Double Shaft. Browse more PTO vane pumps.

What’s in the box

38 mm braided hose, cut to the length ordered

Delivery and warranty

Kamano delivers with its own trucks from Polokwane to all nine provinces in 1 to 3 days. Order the pto pump hose 38mm online and we ship it from Polokwane. Delivery is charged by total order weight, and free delivery applies on orders of R20,000 or more (VAT incl.). Shipping weight: 1.3 kg per metre, so a 10 m length is about 13 kg. Ask us for the warranty terms on this model.

Freight is set by the combined weight of your order. This item sits in the up to 30 kg band at R550, and extra parts added to the same order only raise the fee if they push the total into the next band. Send us your site address and we will confirm the exact delivery charge before you pay.

Questions about this product

How is this hose sold?

It is sold per metre, with a 40 m roll available. Order the exact length you need and tell us about the fittings you plan to use, because couplings are not included. A 40 m roll weighs about 50 kg, so freight is calculated on the full order weight.

Can I use it with diesel?

The inner tube is NBR, a nitrile rubber widely used for fuels and oils, and the hose includes anti-static wire. Confirm the exact fluid and temperature with us before ordering, particularly for petrol or aggressive chemicals, so we can match the hose to your duty.

How much is delivery to Tzaneen for a few metres of hose?

Delivery is priced on total order weight. This hose weighs about 1.3 kg per metre shipped, so a 10 m length is around 13 kg and falls in the up to 30 kg band at R550, bundled with anything else in the order. Orders of R20,000 or more VAT incl. ship free, from Polokwane in 1 to 3 days.

Nationwide delivery from Polokwane

Delivered to all nine provinces in 1 to 3 days

We deliver the 38 mm PTO Pump Hose, Double Braided NBR, Sold Per Metre with our own trucks to Johannesburg, Pretoria, Cape Town, Durban, Gqeberha, Bloemfontein, Polokwane, Mbombela, George, Mahikeng, Mokopane, Klerksdorp, Upington and eMalahleni, and to farms, mines and sites in between. This item ships in the R550 delivery band (up to 30 kg). Orders of R20,000 or more deliver free with code KH027.
