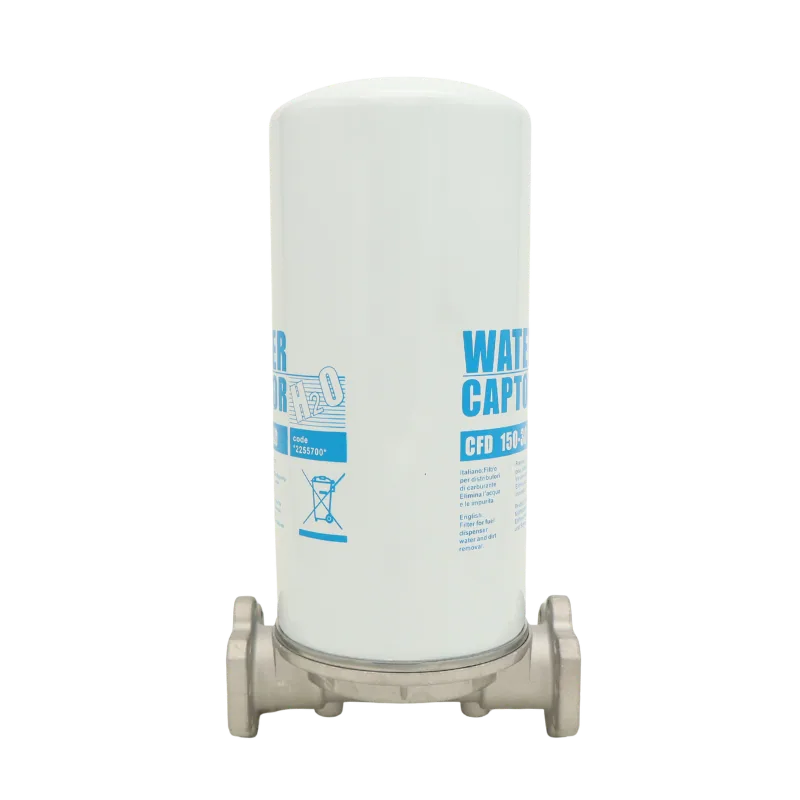

Water captor diesel filter with base and cartridge, 150 L/min, 1 inch inlet and outlet

Water Captor Fuel Filter, 150 L/min, 1″ Ports, 30 Micron

Name: Water Captor Fuel Filter, 150 L/min, 1" Ports, 30 Micron
SKU: KMN-FUEL-0120
Price: 458.33 ZAR
Availability: InStock

SKU KMN-FUEL-0120

A 150 L/min water-absorbing diesel filter with 1" ports for bowsers, depot pumps and farm tanks, delivered nationwide from Polokwane in 1 to 3 days.

R458,33

Pulls free water and dirt out of diesel before it reaches the tank
Sized for fast pumps, up to 150 L/min
1″ inlet and outlet, 30 micron cartridge
Rated to 4 bar, 1.7 bar max pressure drop

Delivered by our own trucks in 1 to 3 days. R550 / R950 / R1,450 by order weight. FREE on orders of R20,000 or more with code KH027. Delivery details

Specifications

Flow rate	Up to 150 L/min
Filtration	30 micron, water-absorbing
Inlet / outlet	1"
Max pressure	4 bar
Max pressure drop	1.7 bar
Fluid compatibility	Diesel, biodiesel, paraffin (not petrol)
Element type	Replaceable spin-on cartridge
Net weight	2.2 kg
Shipping weight	2.3 kg
Dimensions	175 × 130 × 330 mm

Description

Overview

This is a water absorbing diesel filter for high-flow transfer lines, rated at up to 150 L/min with 1″ connections. The cartridge holds a medium that swells when it meets free water, trapping it along with dirt down to 30 micron, so only clean, dry diesel goes into your machines. When the cartridge has soaked up its limit, flow drops sharply, which tells you it is time to replace it.

It is the larger brother of the 70 L/min water captor filter, made for pumps that move more than 70 L/min. For flanged 4″ depot lines, the 4″ fuel filter assembly is the right size.

Key features

Water-absorbing cartridge plus 30 micron particle filtration
Handles up to 150 L/min
1″ inlet and outlet, simple to plumb into a pump outlet
4 bar maximum pressure
Suits diesel, biodiesel and paraffin

Where it works

Water in diesel is a real problem in humid KZN and Lowveld summers, and in old farm tanks that collect condensation. Fit this water absorbing diesel filter on the discharge of a high-flow bowser or depot pump and it guards the injectors on tractors, harvesters, trucks and generators. Mount it upright where you can see it, and keep the cartridge out of direct sun when the bowser stands in the yard. Contractors in Mpumalanga and Limpopo fit one to every service bowser. Browse more fuel filters for smaller pumps and spare cartridges.

What’s in the box

Filter head with mounting base
150 L/min water-absorbing cartridge

Delivery and warranty

Kamano delivers with its own trucks from Polokwane to all nine provinces, normally within 1 to 3 days. The filter set ships at 2.3 kg, which falls in the up-to-30 kg band at R550. Order a spare cartridge with it so a saturated one never stops refuelling. Orders of R20,000 or more (VAT incl.) travel free. Ask us for the warranty terms on this model.

Questions about this product

How do I know when to change the cartridge?

Watch the flow. Once the cartridge has absorbed as much water as it can, the medium swells shut and flow drops hard, and the pressure drop climbs toward 1.7 bar. That is the sign to replace it. On a dirty tank it can happen quickly, so keep a spare on hand.

Can I use it on a 70 L/min pump?

Yes. A filter rated higher than your pump simply runs with less restriction and lasts longer between changes. The reverse is the problem: a small filter on a big pump chokes the flow. So this 150 L/min unit is a sensible upgrade for a 40 or 70 L/min pump too.

Will it filter petrol?

No, it is meant for diesel, biodiesel and paraffin. Petrol needs filters and seals rated for its lower flash point and different chemistry. Tell us what you are pumping, the flow rate and the hose size, and we will suggest a suitable option from our range.

How much is delivery to the Karoo?

The set ships at 2.3 kg, which is in the up-to-30 kg band at R550 anywhere in South Africa, Karoo farms included. Our own trucks run from Polokwane and usually arrive in 1 to 3 days. Orders of R20,000 or more including VAT are delivered free.
