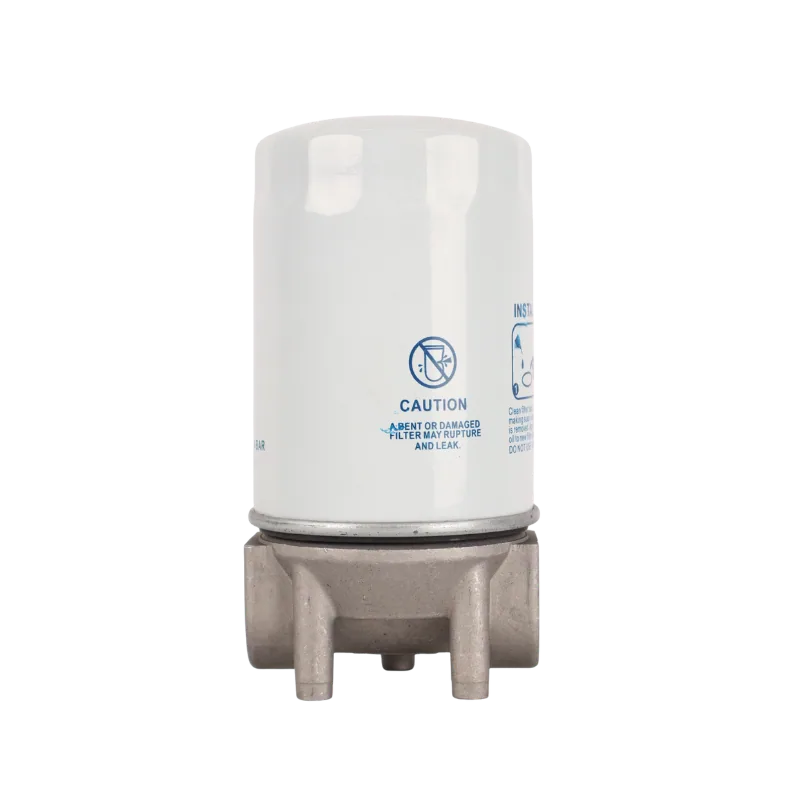

GL3 spin-on diesel filter with aluminium head, 56 L/min, 1 inch inlet and outlet

GL3 Fuel Filter with Head, 56 L/min, 1″ Ports, 30 Micron

Name: GL3 Fuel Filter with Head, 56 L/min, 1" Ports, 30 Micron
SKU: KMN-FUEL-0123
Price: 174.83 ZAR
Availability: InStock

SKU KMN-FUEL-0123

A GL3 spin-on fuel filter with an aluminium head for small diesel transfer pumps up to 56 L/min, delivered nationwide from Polokwane in 1 to 3 days.

R174,83

Low-cost protection for small transfer pumps and bowsers
Spin-on element changes in minutes, no tools needed
Up to 56 L/min, 1″ ports, 30 micron
Aluminium head, 3.4 bar max pressure

Delivered by our own trucks in 1 to 3 days. R550 / R950 / R1,450 by order weight. FREE on orders of R20,000 or more with code KH027. Delivery details

Specifications

Flow rate	Up to 56 L/min
Filtration	30 micron particle element
Inlet / outlet	1"
Max pressure	3.4 bar (50 psi)
Housing material	Aluminium head
Water removal	No (particle filter)
Fluid compatibility	Diesel, biodiesel, paraffin
Net weight	0.8 kg
Shipping weight	1 kg
Dimensions	90 × 90 × 130 mm

Description

Overview

The GL3 fuel filter is a spin-on particle filter with an aluminium head for small diesel transfer pumps up to 56 L/min. Dirt down to 30 micron stays in the element, keeping it out of the nozzle, the meter and the engine you are filling. When the element is dirty, spin it off and fit a new one.

It is the smallest and cheapest filter in our range and suits 12V and 24V pumps running at 40 to 50 L/min. If water in the tank is the bigger worry, choose the 70 L/min water captor filter instead, or a water trap filter with housing for a visible bowl.

Key features

Spin-on element on an aluminium head
Flow up to 56 L/min
1″ inlet and outlet
30 micron particle filtration
Compact enough for a bakkie sakkie frame

Where it works

A GL3 fuel filter is a good fit for workshop drums, small farm tanks in Limpopo and the Eastern Cape, and bakkie bowsers used by contractors and borehole drillers. Anywhere a 12V pump fills tractors, generators or compressors, it stops grit from a dusty tank reaching an expensive injector system. Pair it with regular tank draining for the best result. Write the date on each new element with a paint marker so everyone on the farm knows when it was last changed, and replace it at least once a season. More options are in our fuel filter range.

What’s in the box

Aluminium filter head
GL3 spin-on filter element

Delivery and warranty

Kamano delivers with its own trucks from Polokwane to all nine provinces, normally within 1 to 3 days. The filter ships at 1 kg, which falls in the up-to-30 kg band at R550. Orders of R20,000 or more (VAT incl.) travel free. Ask us for the warranty terms on this model.

Questions about this product

Does the GL3 remove water from diesel?

Not really. The GL3 is a particle filter that catches dirt down to 30 micron. If you suspect water in your tank, use a water captor cartridge, which swells and blocks when it meets water. Draining the tank sump on a regular basis also helps a great deal.

Is it big enough for a 70 L/min pump?

It is rated to 56 L/min, so on a 70 L/min pump it would restrict flow and clog sooner. For faster pumps use the 70 L/min or 150 L/min water captor filters. On a 40 or 50 L/min 12V pump the GL3 is a good match.

How much does delivery cost?

The GL3 ships at 1 kg, so it falls in the up-to-30 kg band at R550 anywhere in South Africa. Our own trucks run from Polokwane and usually arrive in 1 to 3 days. Add spare elements to the same order, as they fit in the same band, and orders of R20,000 or more including VAT are delivered free.
