0.55 kW Vortex Sewage Pump, 220 V, Solids up to 35 mm

Name: 0.55 kW Vortex Sewage Pump, 220 V, Solids up to 35 mm
SKU: KMN-SUBM-0051
Price: 3640.00 ZAR
Availability: InStock

SKU KMN-SUBM-0051

A 0.55 kW, 220 V stainless steel vortex sewage pump that passes solids up to 35 mm, delivered across South Africa.

R3 640,00

Vortex impeller passes solids up to 35 mm without clogging
0.55 kW (0.75 HP), 220 V single-phase, rewindable motor
Stainless steel AISI304 casing and impeller
7.3 m maximum head, up to 18 m3/h

Delivered by our own trucks in 1 to 3 days. R550 / R950 / R1,450 by order weight. FREE on orders of R20,000 or more with code KH027. Delivery details

Specifications

Flow rate	Up to 18 m3/h (300 L/min) at 3.1 m
Max head / pressure	7.3 m
Duty point	9 m3/h (150 L/min) at 5.8 m

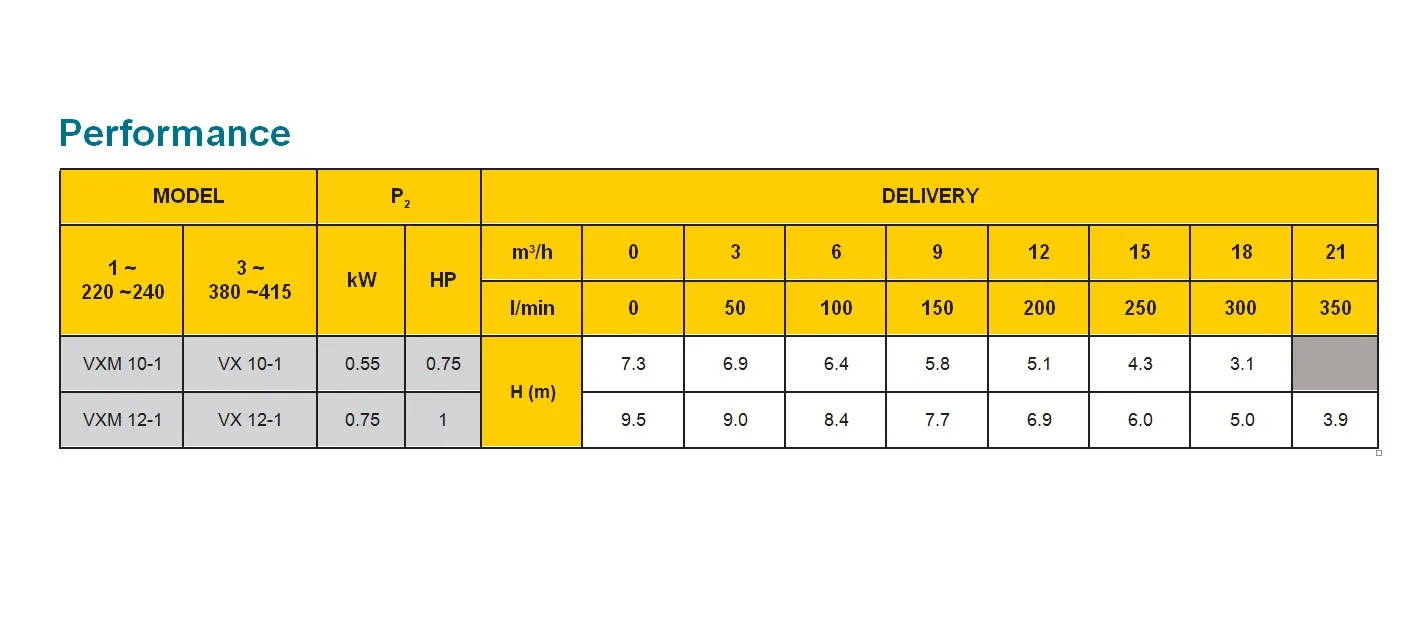

Performance curve	7.3 m at 0 m3/h, 6.9 m at 3 m3/h, 6.4 m at 6 m3/h, 5.8 m at 9 m3/h, 5.1 m at 12 m3/h, 4.3 m at 15 m3/h, 3.1 m at 18 m3/h
Voltage / phase	220 V to 240 V single-phase, 50 Hz
Power	0.55 kW (0.75 HP)
Inlet / outlet	On request
Self-priming	N/A (submersible)
Duty cycle	On request
Fluid compatibility	Sewage, effluent and dirty water with solids up to 35 mm, pH 4 to 10, up to 40 °C
Impeller	Vortex (recessed), liquid does not contact the impeller
Materials	Casing, impeller, cover, casing cover and motor AISI304, shaft AISI316
Mechanical seal	Double, with intermediate oil chamber
Max solids	35 mm
Max immersion depth	10 m
Motor	Rewindable
Range model	VXM 10-1 (single-phase), VX 10-1 (three-phase)
Net weight	11 kg
Shipping weight	12.5 kg
Dimensions	250 x 210 x 400 mm

Description

Overview

This 0.55 kW vortex sewage pump handles sewage and effluent with solids up to 35 mm on a standard 220 V single-phase supply, for sumps and septic transfers where a standard dewatering pump would clog.

The vortex impeller sits back from the flow, so the liquid being pumped does not come into contact with it and solids up to 35 mm pass through without clogging. At 0.55 kW it delivers 18 m3/h (300 L/min) at 3.1 m with a maximum head of 7.3 m, and the casing, impeller, cover and shaft are stainless steel (AISI304 and AISI316). A double mechanical seal with an intermediate oil chamber protects the motor, and the motor is rewindable.

Key features

0.55 kW (0.75 HP) rewindable motor, 220 V to 240 V single-phase, 50 Hz
Vortex impeller passes solids up to 35 mm without clogging
7.3 m maximum head, 18 m3/h (300 L/min) at 3.1 m
Casing, impeller, cover and motor in AISI304 stainless steel, shaft in AISI316
Double mechanical seal with intermediate oil chamber
Maximum immersion 10 m, liquid temperature up to 40 °C, pH 4 to 10

Where it works

Use it to move effluent from a farm conservancy or septic tank, drain a sewage treatment plant sump, or empty an industrial pit in Gauteng or the Free State, and as an irrigation feed from an effluent dam. Choose the 0.55 kW 380 V version for three-phase sites, or the 0.75 kW 220 V vortex pump for more head. See the full submersible pump range.

What’s in the box

0.55 kW vortex sewage pump (VXM 10-1)
Hose and discharge fittings are not included

Delivery and warranty

Kamano delivers with its own trucks from Polokwane to all nine provinces in 1 to 3 days, with regular runs to Johannesburg, Pretoria, Bloemfontein, Polokwane, Kimberley and Welkom. Delivery is charged by total order weight: up to 30 kg R550, 30 to 60 kg R950, 60 to 100 kg R1,450 and over 100 kg on quotation, and orders of R20,000 or more (VAT incl.) go free. At about 12.5 kg shipping weight this item falls in the up to 30 kg (R550) band. Ask us for the warranty terms on this model.

Questions about this product

What solids can the 0.55 kW vortex sewage pump pass?

It passes solids up to 35 mm without clogging, because the vortex impeller keeps the pumped liquid away from the impeller itself. It is rated for pH 4 to 10 and liquid up to 40 °C. Do not use it for rags, stones or fibrous waste in bulk, and screen the pit if you expect those.

Can the 0.55 kW vortex pump run on ordinary 220 V power?

Yes. This is the single-phase version, built for a 220 V to 240 V, 50 Hz supply, which is what most farms, plots and small plants have. Have the supply wired and protected by a qualified electrician. If your site has three-phase power, the 380 V version of the same pump is also available.

Do you deliver a sewage pump to Bloemfontein?

Yes. Kamano delivers with its own trucks from Polokwane to Bloemfontein and all nine provinces in 1 to 3 days. At about 12.5 kg shipping weight this item falls in the up to 30 kg (R550) band, and orders of R20,000 or more (VAT incl.) go free. Add a hose and fittings to the same order.
