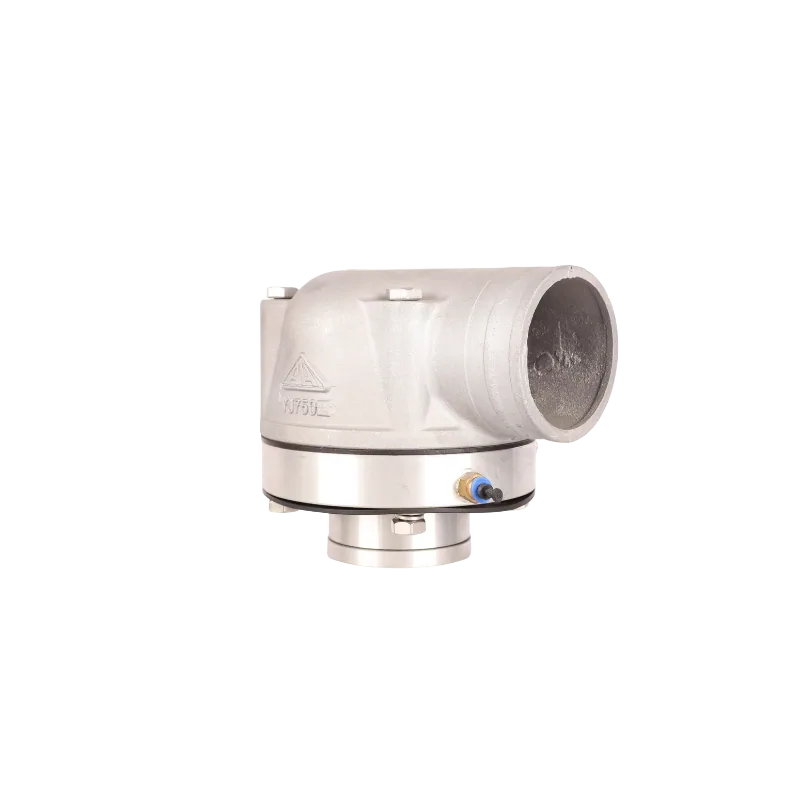

3 inch flanged aluminium vapour recovery valve, YJ750 series

3″ Flanged Vapour Recovery Valve, YJ750 Series

Name: 3" Flanged Vapour Recovery Valve, YJ750 Series
SKU: KMN-VALV-0013
Price: 2504.25 ZAR
Availability: InStock

SKU KMN-VALV-0013

A 3" flanged aluminium vapour recovery valve in the YJ750 series for fuel tanker vapour lines, delivered by Kamano nationwide.

R2 504,25

3″ flanged aluminium vapour recovery valve
Working pressure 0.6 MPa (6 bar)
Operating range -20 to +70 C
YJ750 series, for tanker vapour lines

Delivered by our own trucks in 1 to 3 days. R550 / R950 / R1,450 by order weight. FREE on orders of R20,000 or more with code KH027. Delivery details

Specifications

Valve type	Vapour recovery valve
Size	3"
Body material	Aluminium
Connection	Flanged
Max pressure	0.6 MPa (6 bar) working pressure
Operating temperature	-20 to +70 C
Seals	Not stated by supplier, ask us
Model code	YJ750 series (supplier also lists T-YJ507)
Net weight	3.6 kg
Shipping weight	4 kg
Dimensions	110 × 90 × 180 mm

Description

Overview

This 3 inch vapour recovery valve is a flanged aluminium valve from the YJ750 series that closes and opens the vapour return line on a fuel tanker during loading and unloading.

It has a 3 inch flanged connection, a working pressure of 0.6 MPa (6 bar) and an operating range of -20 to +70 C. The supplier lists the code as T-YJ507 against a YJ750 series title, so confirm the exact model with us before you match it to your tanker. Seal material is not stated.

Key features

3 inch flanged connection, aluminium body
Working pressure 0.6 MPa (6 bar)
Operating range -20 to +70 C
YJ750 series, listed as T-YJ507 by the supplier

Where it works

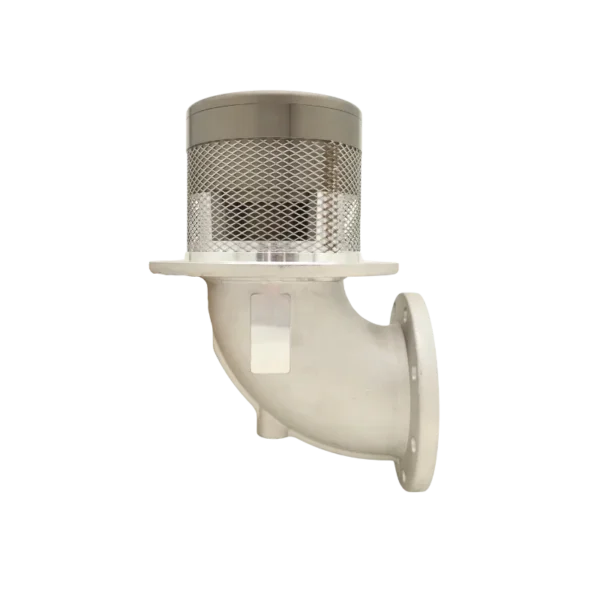

Tanker fleets hauling fuel out of Gauteng and Mpumalanga depots use a vapour recovery line to return vapour to the depot while product is pumped out, and the valve isolates that line. A vapour recovery valve 3 inch is a replacement part when a tanker is refurbished. See our valves and chemical handling equipment, and compare the 4″ emergency bottom valve and the T-type emergency bottom valve.

Before you order, send us the size, thread and liquid you are working with and we will confirm the fit, so you do not wait on a part that does not match. We can also suggest the companion fittings you will need to finish the job.

What’s in the box

1 x 3″ flanged vapour recovery valve

Delivery and warranty

Kamano delivers with its own trucks from Polokwane to all nine provinces in 1 to 3 days, and delivery is free on orders of R20,000 or more (VAT incl.). At 4 kg shipping weight it falls in our up to 30 kg band (R550) of order weight. Order your vapour recovery valve 3 inch online and we confirm the delivery cost before dispatch.

Ask us for the warranty terms on this model.

Questions about this product

What does a vapour recovery valve do on a tanker?

It opens and closes the vapour return line, so vapour displaced as product leaves the tanker can be routed back to the supply point instead of being vented. This keeps the vapour circuit closed during loading and unloading. It is a line isolation valve and does not meter or regulate flow.

What pressure and temperature can it handle?

The supplier gives a working pressure of 0.6 MPa, which is 6 bar, and an operating temperature of -20 to +70 C. Those are the figures we have. Seal material is not stated, so if your vapour circuit has special requirements, tell us the details and we will confirm before you order.

Which model number is it, YJ750 or T-YJ507?

The supplier lists it as the YJ750 series, with the code T-YJ507 in the spec sheet. We cannot see which matches your tanker, so send us the number on your existing valve or a photo and we will confirm it before you order. Flange drilling should also be checked.

Do you deliver a vapour recovery valve to Rustenburg or other towns outside Gauteng?

Yes. Kamano delivers with its own trucks from Polokwane to all nine provinces in 1 to 3 days. At 4 kg shipping weight this item falls in our up to 30 kg band at R550, or free if your order reaches R20,000 (VAT incl.). Fees are charged on total order weight, so combining items can lower the cost per item.

Nationwide delivery from Polokwane

Delivered to all nine provinces in 1 to 3 days

We deliver the 3" Flanged Vapour Recovery Valve, YJ750 Series with our own trucks to Johannesburg, Pretoria, Cape Town, Durban, Gqeberha, Bloemfontein, Polokwane, Mbombela, Rustenburg, Kimberley, Welkom, George, East London and Richards Bay, and to farms, mines and sites in between. This item ships in the R550 delivery band (up to 30 kg). Orders of R20,000 or more deliver free with code KH027.
