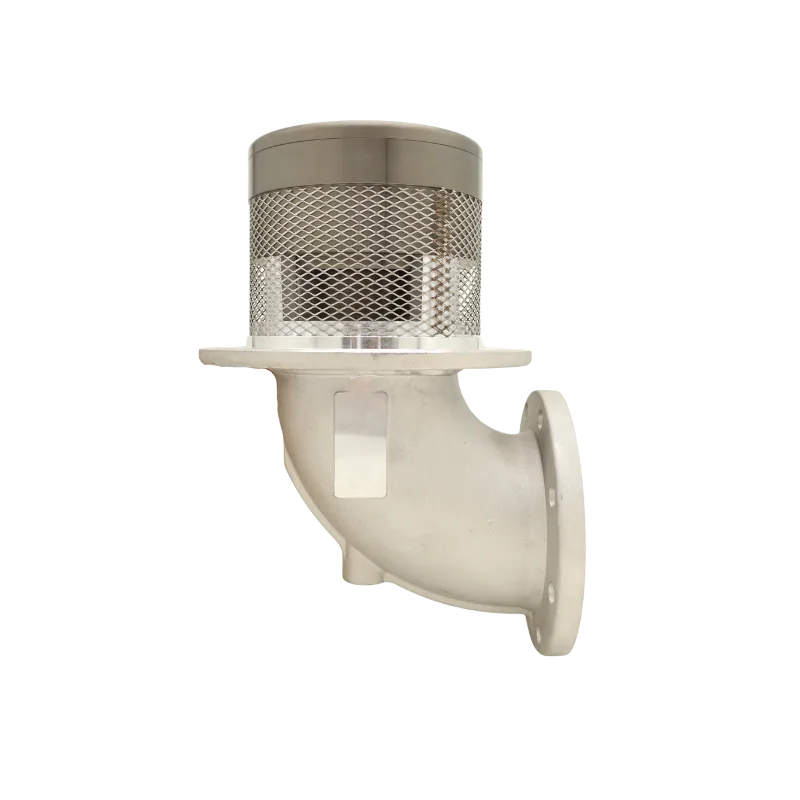

4 inch pneumatic emergency bottom valve with round flange and filter

4″ Pneumatic Emergency Bottom Valve, Round Flange

Name: 4" Pneumatic Emergency Bottom Valve, Round Flange
SKU: KMN-VALV-0007
Price: 7040.25 ZAR
Availability: InStock

SKU KMN-VALV-0007

A 4" pneumatic emergency bottom valve with round flange, filter and internal cylinder for fuel tankers, delivered by Kamano nationwide.

R7 040,25

4″ pneumatic emergency bottom valve, standard body
Round flange with filter and internal cylinder
Operates from 0.25 MPa (2.5 bar) air
Spring closure force 33 N

Delivered by our own trucks in 1 to 3 days. R550 / R950 / R1,450 by order weight. FREE on orders of R20,000 or more with code KH027. Delivery details

Specifications

Valve type	Pneumatic emergency bottom valve
Size	4" inlet and outlet
Actuation	Pneumatic
Min operating pressure	0.25 MPa (2.5 bar)
Spring closure force	33 N
Connection	Round flange
Included parts	Filter and internal cylinder
Max pressure	Not stated by supplier, ask us
Model code	PH400
Net weight	6.2 kg
Shipping weight	6.7 kg
Dimensions	240 × 220 × 360 mm

Description

Overview

This 4 inch emergency pressure valve is a pneumatic tanker bottom valve with a round flange, a filter and an internal cylinder, built for fuel road tankers. It is the outlet valve you close in an emergency to stop product leaving the compartment.

It needs at least 0.25 MPa (2.5 bar) of air to operate, and the spring closure force is 33 N. The model code is PH400. The supplier does not list a product pressure rating or seal material, so ask us for the details your tanker builder needs.

Key features

4 inch round flange suits tanker outlets
Pneumatic operation, minimum 0.25 MPa (2.5 bar)
Filter and internal cylinder built in
Spring closure force 33 N

Where it works

Fuel haulage operators running from Gauteng depots to mines in Limpopo and Mpumalanga fit emergency valves to tanker compartments, and so do bowser builders and tanker workshops. An emergency bottom valve 4 inch is a replacement item when a seat or cylinder wears. See our valves and chemical handling equipment and compare the T-type version and the 1″ lockable ball valve for auxiliary outlets.

Before you order, send us the size, thread and liquid you are working with and we will confirm the fit, so you do not wait on a part that does not match. We can also suggest the companion fittings you will need to finish the job.

What’s in the box

1 x 4″ pneumatic emergency bottom valve

Delivery and warranty

Kamano delivers with its own trucks from Polokwane to all nine provinces in 1 to 3 days, and delivery is free on orders of R20,000 or more (VAT incl.). At 6.7 kg shipping weight it falls in our up to 30 kg band (R550) of order weight. Order your emergency bottom valve 4 inch online and we confirm the delivery cost before dispatch.

Ask us for the warranty terms on this model.

Questions about this product

What air pressure does the valve need?

The minimum operating pressure is 0.25 MPa, which is 2.5 bar, supplied from the tanker air system. Spring closure force is 33 N. The supplier does not state a maximum product pressure or seal material, so confirm those with us against your tanker design before you order or fit it.

Is this a drop-in replacement for my tanker valve?

It is a 4 inch pneumatic valve with a round flange, but flange drilling and body pattern differ between tanker builders. Send us the make of tanker, the flange details or a photo of your current valve, and we will confirm the match before you order. Fitting should be done by a competent tanker workshop.

What is the difference between the standard and T-type versions?

They share the same size, air requirement and flange, but the body pattern differs. This one is the standard pattern, model PH400. Choose the one that matches the pipework on your tanker, and ask us if you are unsure which pattern you have.

Do you deliver a tanker valve to Rustenburg or other towns outside Gauteng?

Yes. Kamano delivers with its own trucks from Polokwane to all nine provinces in 1 to 3 days. At 6.7 kg shipping weight this item falls in our up to 30 kg band at R550, or free if your order reaches R20,000 (VAT incl.). Fees are charged on total order weight, so combining items can lower the cost per item.
