SP46-18 6″ Borehole Pump, 30 kW, 241 m Max Head

Description

Overview

The SP46-18 (also listed as VP48A-18) is an 18-stage stainless steel multistage submersible pump for 6 inch boreholes, built around a 30 kW motor. It lifts water up to 241 m and moves up to 66 m³/h, and it gives 36 m³/h (36 000 litres per hour) at 180 m head. The SP46 range is rated at about 46 m³/h nominal flow and suits deep boreholes and high lifts to elevated reservoirs.

Key features

• Stainless steel multistage pump end, 18 stages
• 30 kW three-phase motor, 380 V or 525 V by option
• Duty points: 221 m at 18 m³/h, 180 m at 36 m³/h, 124 m at 54 m³/h
• 6 inch diameter, needs a borehole of at least 150 mm internal diameter

Options

4 configurations, prices VAT incl.

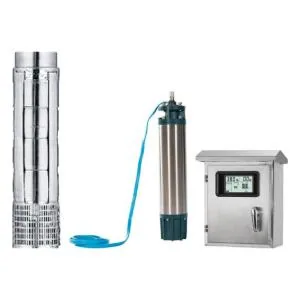

• 380V set + oil-filled motor + 30A controller (R 44,120): SP46-18 pump end + 30kW 380V three-phase oil-filled 6″ motor + 30A intelligent pump controller.
• 380V set + water-filled motor + 30A controller (R 44,120): SP46-18 pump end + 30kW 380V three-phase water-filled 6″ motor + 30A intelligent pump controller.
• 525V set: pump + water-filled motor (no starter) (R 58,800): SP46-18 pump end + 30kW 525V three-phase water-filled 6″ motor (starter panel/VSD not included).
• Pump end only (no motor) (R 15,768): SP46-18 pump end (wet end) only, to replace a worn pump end on an existing 30kW 6″ motor.

Oil-filled motors are sealed, rated 25 bar. Water-filled motors are rated 35 bar and can usually be rewound. 525 V sets have no starter, so fit a suitable panel or VSD.

Where it works

Common for coal-field mine dewatering and potable supply in Mpumalanga, and with municipalities for community supply schemes. Compare the SP46-16 (VP48A-16) 6″ Borehole Pump 26kW – 214m Max Head and the SP46-20 (VP48A-20) 6″ Borehole Pump 30kW – 268m Max Head, or browse all borehole pumps. Send us your water level, yield and delivery height and we will confirm the model.

What’s in the box

• SP46-18 stainless steel pump end
• 30 kW 6 inch three-phase motor, on set options
• 30A intelligent pump controller, on 380 V set options

Not included: cable, rope, delivery pipe, base plate. Often supplied to order, so ask us for lead time.

Delivery and warranty

Kamano delivers with its own trucks from Polokwane to all nine provinces in 1 to 3 days, including Tzaneen, Polokwane, Mbombela, eMalahleni, Pretoria, Mahikeng and Johannesburg. The heaviest set ships at about 208 kg, so delivery is on quotation; the pump end alone ships at about 59 kg (fee R950). Free delivery from R20,000. Ask us for the warranty terms on this model.
