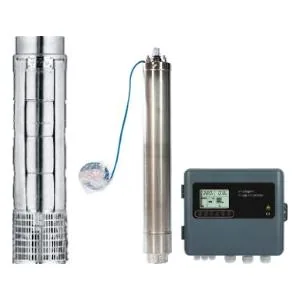

SP46-07 6-inch stainless steel borehole pump, 11 kW, 94 m max head

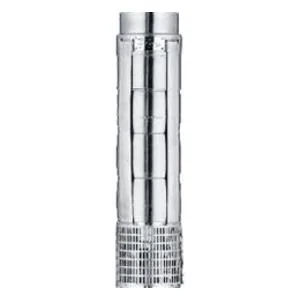

SP46-07 6-inch borehole pump, 11 kW, 94 m max head, view 2

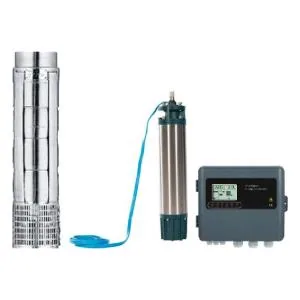

SP46-07 6-inch borehole pump, 11 kW, 94 m max head, view 3

SP46-07 6″ Borehole Pump, 11 kW, 94 m Max Head

SKU KMN-BORE-0063

The SP46-07 is an 11 kW 6-inch multistage borehole pump with 94 m of shut-off head, delivered across South Africa from Polokwane.

Price range: R6 536,00 through R22 160,00

94 m shut-off head and 36 m³/h at 70 m
6-inch stainless steel pump end, 7 stages, three-phase
Complete 380 V set from R 22,160, or pump end only from R 6,536
Fits boreholes of 150 mm internal diameter and up. VAT incl.

Configuration

Clear

Request Bulk Quote Ask on WhatsApp

Delivered by our own trucks in 1 to 3 days. R550 / R950 / R1,450 by order weight. FREE on orders of R20,000 or more with code KH027. Delivery details

Specifications

Flow rate	Up to 66 m³/h (1100 L/min)
Max head / pressure	94 m shut-off head
Duty point	36 m³/h (600 L/min) at 70 m
Performance curve	0 m³/h (0 L/min): 94 m; 6 m³/h (100 L/min): 92 m; 12 m³/h (200 L/min): 90 m; 18 m³/h (300 L/min): 86 m; 24 m³/h (400 L/min): 81 m; 30 m³/h (500 L/min): 76 m; 36 m³/h (600 L/min): 70 m; 42 m³/h (700 L/min): 64 m; 48 m³/h (800 L/min): 57 m; 54 m³/h (900 L/min): 48 m; 60 m³/h (1000 L/min): 38 m; 66 m³/h (1100 L/min): 25 m
Voltage / phase	380 V three-phase
Power	11 kW motor
Pump diameter	6 inch, needs a borehole of 150 mm internal diameter or more
Stages	7
Construction	Stainless steel
Inlet / outlet	On request
Self-priming	N/A (submersible)
Duty cycle	On request
Fluid compatibility	Clean borehole water
Controller	30Y intelligent pump controller on 380 V sets; none on pump end or 525 V options
Also listed as	VP48A-07
Net weight	85 kg
Shipping weight	96 kg
Dimensions	1080 x 250 x 250 mm

Description

Overview

The SP46-07 (VP48A-07) is a 6-inch stainless steel multistage submersible borehole pump with a 11 kW motor rating. At 36 m³/h the SP46-07 still lifts water 70 m, and its shut-off head is 94 m, with flow reaching 66 m³/h at the far end of the curve. It is made for filling reservoirs and farm tanks, running centre-pivot and drip irrigation lands, and supplying villages from boreholes of moderate depth.

Add your pumping water level, the climb to the tank and about 10 percent for friction, and check the borehole yield with your driller. Send us those figures and we will confirm the SP46-07 fits.

Key features

Stainless steel 6-inch pump end, 7 stages, for boreholes of 150 mm internal diameter or more
Three-phase supply, 380 V, with oil-filled or water-filled motors and a pump-end-only option
Head of 70 m at 36 m³/h, and 86 m at 18 m³/h
Sets of this size come with the 30Y controller.

Options

380V set with oil-filled motor, R 22,160: pump end, 11 kW 380 V oil-filled motor (sealed, rated 25 bar) and 30Y controller.
380V set with water-filled motor, R 22,160: pump end, 11 kW 380 V water-filled motor (rated 35 bar, usually rewindable) and 30Y controller.
Pump end only, R 6,536: wet end only, to replace a worn pump end on an existing 11 kW 6-inch motor.

Where it works

Northern Cape and North West farmers use a pump in this head range to keep dams and reservoirs topped up.

Browse the borehole pump range, or compare the SP30-14 borehole pump and the SP30-16 borehole pump.

What’s in the box

SP46-07 pump end (all options)
Motor and 30Y controller (set options only)
Not included: submersible cable, rope, delivery pipe and base plate

Delivery and warranty

Kamano delivers with its own trucks from Polokwane to all nine provinces in 1 to 3 days, including Johannesburg, Durban, Mbombela, East London, Upington and Mahikeng. A boxed set weighs about 96 kg and a pump end alone about 20 kg. Orders of R20,000 or more qualify for free delivery, and items over 100 kg are delivered on quotation. Ask us to confirm the lead time. Ask us for the warranty terms on this model.

Questions about this product

What borehole size does the SP46-07 need?

The SP46-07 is a 6-inch pump, so the borehole needs an internal diameter of at least 150 mm. Check the casing size and any bends or dog-legs with your driller before ordering. If the casing is smaller than 150 mm, this pump will not go down, and we can point you to a 4-inch model from the borehole pump range.

Should I choose an oil-filled or a water-filled motor?

Either works. Oil-filled motors are sealed and rated 25 bar, while water-filled motors are rated 35 bar and can usually be rewound if they burn out, which normally makes repairs cheaper on larger motors. For the SP46-07 the 380 V set prices are the same, so choose on repair preference.

Can I get delivery to Gqeberha and what does it cost?

Yes, we deliver to Gqeberha with our own trucks from Polokwane, normally in 1 to 3 days. A boxed SP46-07 set (96 kg) falls in the R1,450 delivery band. A pump end alone (20 kg) falls in the R550 delivery band. Orders of R20,000 or more qualify for free delivery.

How do I know the SP46-07 is right for my borehole?

Add your pumping water level, the height to the tank and about 10 percent for friction. The SP46-07 must beat that total at your flow, for example 86 m at 18 m³/h or 76 m at 30 m³/h. Also get the yield test from your driller, because the borehole must deliver that flow. Send us your figures and we will confirm.

Does it run on single-phase power?

No, the SP46-07 is a three-phase pump, supplied as 380 V sets with the 30Y controller. If you only have single-phase on site, ask us before you order so we can advise what is practical for an 11 kW motor.
