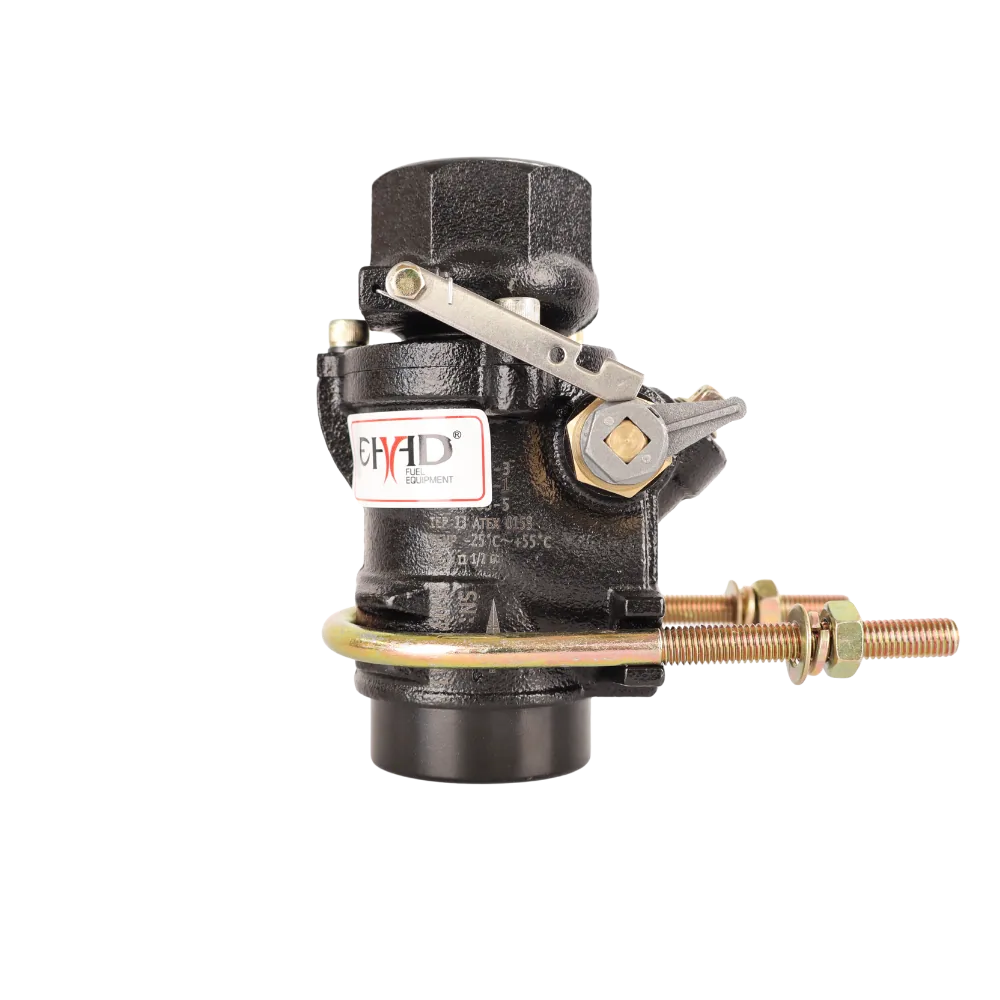

1.5 inch cast iron double poppet shear valve with Buna-N seals

Shear Valve, 1.5″ Double Poppet, Cast Iron

Name: Shear Valve, 1.5" Double Poppet, Cast Iron
SKU: KMN-VALV-0012
Price: 1181.25 ZAR
Availability: InStock

SKU KMN-VALV-0012

A 1.5" cast iron double poppet shear valve with Buna-N seals for fuel bowser and tank outlets, delivered by Kamano to all nine provinces.

R1 181,25

1.5″ double poppet shear (impact) valve
Cast iron body with Buna-N seals
Female 1.5″ ports
Model code SV001

Delivered by our own trucks in 1 to 3 days. R550 / R950 / R1,450 by order weight. FREE on orders of R20,000 or more with code KH027. Delivery details

Specifications

Valve type	Shear (impact) valve, double poppet
Size	1.5" female inlet and outlet
Body material	Cast iron
Seals	Buna-N (nitrile)
Shear force	Not stated by supplier, ask us
Max pressure	Not stated by supplier, ask us
Model code	SV001
Net weight	2.7 kg
Shipping weight	3 kg
Dimensions	120 × 80 × 130 mm

Description

Overview

This 1.5 inch double poppet shear valve is a cast iron impact valve for the outlet of a fuel tank or bowser, built so the poppets close if the valve is sheared, keeping product in the tank.

The body is cast iron with Buna-N seals and female 1.5 inch ports, model code SV001. It is the plain iron alternative to the ATEX marked aluminium shear valve we also list; this one carries no certification claim. The supplier gives no shear force or pressure rating for it, so ask us if your insurer needs figures.

Key features

Double poppet design closes on impact
Cast iron body with Buna-N seals
Female 1.5 inch inlet and outlet
Lower cost than the ATEX marked aluminium version

Where it works

Farm bowsers in the Free State and Limpopo, depot tanks in Gauteng and contractor diesel trailers use this valve to protect the tank outlet against being pulled off. A cast iron shear valve 1.5 inch double poppet suits sites with no certification requirement. See our valves and chemical handling equipment, and compare the ATEX marked shear valve and the 2″ angle check valve.

Before you order, send us the size, thread and liquid you are working with and we will confirm the fit, so you do not wait on a part that does not match. We can also suggest the companion fittings you will need to finish the job.

What’s in the box

1 x 1.5″ double poppet shear valve

Delivery and warranty

Kamano delivers with its own trucks from Polokwane to all nine provinces in 1 to 3 days, and delivery is free on orders of R20,000 or more (VAT incl.). At 3 kg shipping weight it falls in our up to 30 kg band (R550) of order weight. Order your shear valve 1.5 inch double poppet online and we confirm the delivery cost before dispatch.

Ask us for the warranty terms on this model.

Questions about this product

What is the difference between this and the ATEX marked shear valve?

Both are 1.5 inch double poppet shear valves with female ports. This one has a cast iron body and Buna-N seals and carries no certification claim. The other has a cast aluminium body, a stainless steel shaft, a stated shear force of 600 to 880 N and ATEX marking per the supplier. Choose by your site rules.

What does a double poppet shear valve protect against?

It protects a tank outlet from being torn off if a vehicle drives away with the hose still connected. The valve is designed to shear at a set point, and the poppets then close so the product stays in the tank. It is a basic safeguard on bowsers, trailers and depot tanks.

Does it suit diesel and petrol?

The Buna-N seals are the usual choice for diesel and petrol. The supplier does not state a pressure rating, a shear force or a temperature range for this valve, so we do not quote one. If your application is anything other than fuel, send us the liquid and we will advise.
