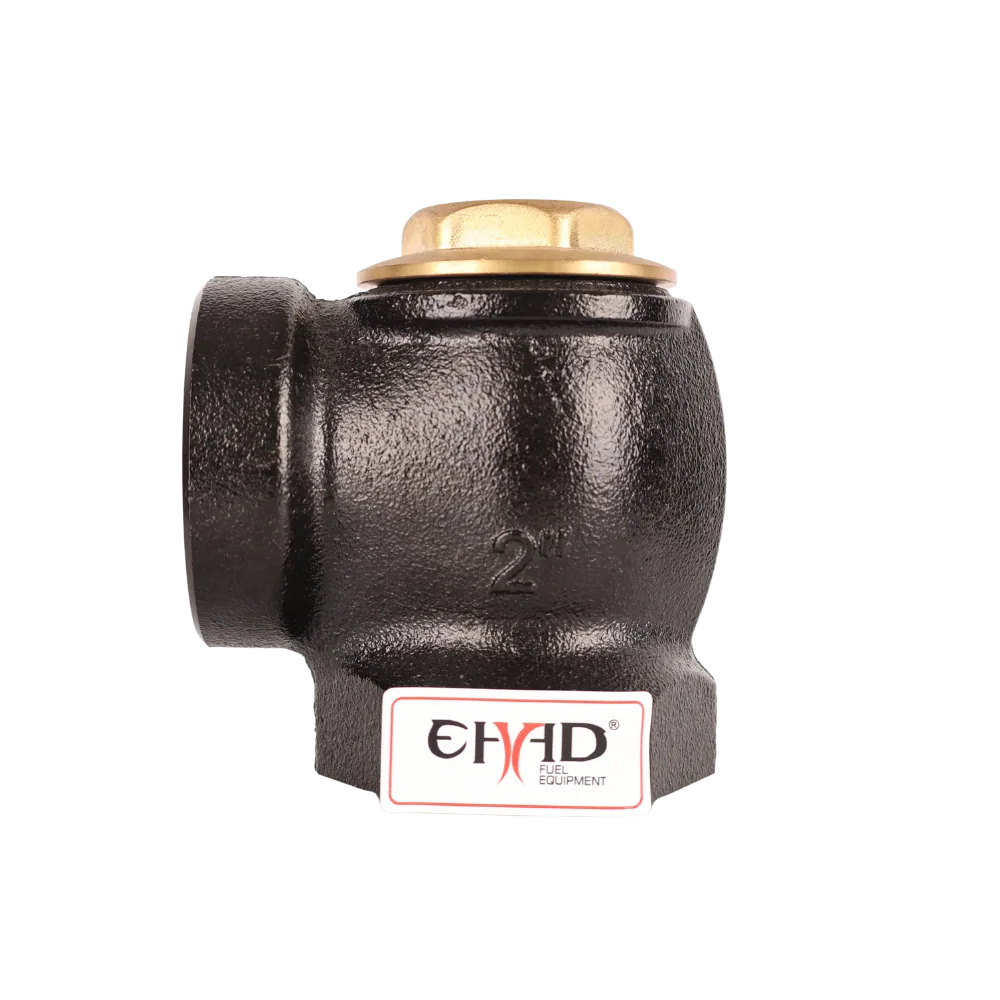

2 inch cast iron angle check valve with brass top and Buna-N seals

Angle Check Valve, 2″ Cast Iron, Buna-N Seals

Name: Angle Check Valve, 2" Cast Iron, Buna-N Seals
SKU: KMN-VALV-0002
Price: 1370.25 ZAR
Availability: InStock

SKU KMN-VALV-0002

A 2" cast iron angle check valve with Buna-N seals for higher-flow fuel suction lines, delivered by Kamano to depots, mines and farms.

R1 370,25

One-way angle check valve for 2″ fuel lines
2″ inlet and outlet, cast iron body
Buna-N (nitrile) seals
Model code CH007

Delivered by our own trucks in 1 to 3 days. R550 / R950 / R1,450 by order weight. FREE on orders of R20,000 or more with code KH027. Delivery details

Specifications

Valve type	Angle check (non-return) valve
Size	2" inlet and outlet
Body material	Cast iron
Seals	Buna-N (nitrile)
Connection / thread	On request
Max pressure	Not stated by supplier, ask us
Fluid compatibility	Fuel suction service, ask us about other liquids
Model code	CH007
Net weight	3.5 kg
Shipping weight	4 kg
Dimensions	110 × 80 × 130 mm

Description

Overview

This 2 inch angle check valve is a one-way valve for larger fuel lines: product flows towards the pump or outlet, and the valve closes against reverse flow so the line stays full.

It is the 2 inch sibling of the 1.5 inch valve, with the same cast iron body, Buna-N (nitrile) seals and angle pattern, and carries model code CH007. The bigger bore suits bulk diesel transfer where a 1.5 inch line would restrict flow. No pressure rating is stated by the supplier, so ask us if your line runs under pressure.

Key features

2″ bore for higher-flow fuel transfer
Cast iron body with Buna-N seals
Angle pattern replaces a separate elbow
Keeps the line full between pumping cycles

Where it works

Mines in Mpumalanga and Limpopo, transport depots and bulk farm diesel stores use 2 inch suction lines to fill trucks and bowsers quickly, and a check valve stops the line draining back between fills. Find the rest of the range in our valves and chemical handling equipment. Good partners are the 3″ vapour recovery valve and the 4″ emergency bottom valve on tanker work. Buyers searching for an angle check valve 2 inch for diesel should check the thread on their pump first.

What’s in the box

1 x 2″ angle check valve

Delivery and warranty

Kamano delivers with its own trucks from Polokwane to all nine provinces in 1 to 3 days, and delivery is free on orders of R20,000 or more (VAT incl.). At 4 kg shipping weight it falls in our up to 30 kg band (R550) of order weight. Order your angle check valve 2 inch online and we confirm the delivery cost before dispatch.

Ask us for the warranty terms on this model.

Questions about this product

When do I need a 2 inch check valve instead of 1.5 inch?

Choose 2 inch when your suction pipe or hose is 2 inch bore, or when you want less restriction on bulk transfers. The valve should match the line size, not be reduced down, because a smaller port slows the pump and can make it cavitate. For 1.5 inch lines use the smaller valve.

Is this check valve suitable for diesel and petrol?

It has a cast iron body and Buna-N (nitrile) seals, which are standard for fuel suction lines. The supplier gives no pressure rating, and we do not claim one. If you plan to use it with another liquid, or on a pressurised line, send us the details and we will confirm.

What thread or connection does the 2 inch valve have?

The supplier does not state the thread type, so we list it as on request. Tell us what is on your pump or pipe, such as BSP or NPT, and we will confirm before you order. The size is 2 inch inlet and outlet, model code CH007.

Do you deliver a 2 inch check valve to Rustenburg or other towns outside Gauteng?

Yes. Kamano delivers with its own trucks from Polokwane to all nine provinces in 1 to 3 days. At 4 kg shipping weight this item falls in our up to 30 kg band at R550, or free if your order reaches R20,000 (VAT incl.). Fees are charged on total order weight, so combining items can lower the cost per item.
