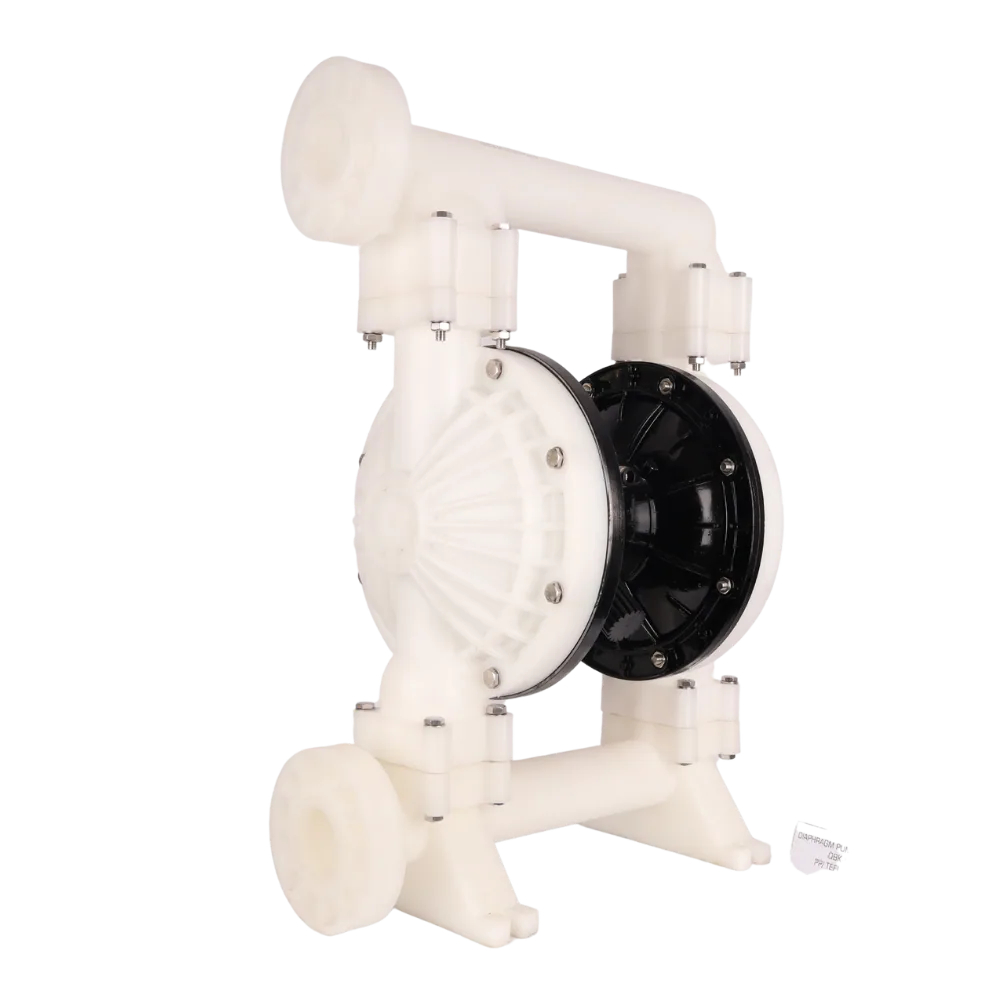

QBK65 Air Diaphragm Pump, Polypropylene Body, 280 L/min, 2.5″ Ports
SKU KMN-VALV-0034
A 2.5" air-operated polypropylene diaphragm pump for high-volume dewatering and bulk transfer, delivered from Polokwane to all nine provinces.
R16 017,75
- Moves up to 280 L/min through 2.5″ ports with compressed air only
- Self-priming to 7 m, with PTFE diaphragms and solids up to 8 mm
- Polypropylene body, maximum discharge pressure 6.9 bar
- Air consumption up to 900 L/min, no electrical supply
Delivered by our own trucks in 1 to 3 days. R550 / R950 / R1,450 by order weight. FREE on orders of R20,000 or more with code KH027. Delivery details
Specifications
| Flow rate | 280 L/min (maximum) |
|---|---|
| Max head / pressure | 6.9 bar discharge, 7 m suction lift |
| Voltage / phase | N/A (air-operated, no electrical supply) |
| Power | Compressed air, up to 900 L/min |
| Inlet / outlet | 2.5" / 2.5" |
| Self-priming | Yes (7 m suction lift) |
| Duty cycle | N/A (air-operated, no motor) |
| Fluid compatibility | Fuels, oils, water-based liquids and compatible chemicals, depending on body material |
| Body / wetted materials | Polypropylene body, PTFE diaphragms |
| Max solids size | 8 mm |
| Viscosity range | 1 to under 10,000 cP |
| Net weight | 29 kg |
| Shipping weight | 45 kg |
| Dimensions | 560 × 360 × 770 mm |
Description
Overview
The QBK65 polypropylene air-operated double diaphragm pump moves up to 280 L/min through 2.5″ ports, powered by compressed air alone. It self-primes to a 7 m suction lift, delivers up to 6.9 bar, passes solids up to 8 mm and carries PTFE (Teflon) diaphragms.
The polypropylene body resists many acids, alkalis and salt solutions that corrode aluminium, and it is lighter than stainless steel. Check the liquid against a compatibility chart, and keep it away from hot liquids and strong solvents. Because there is no electric motor, you can run it wherever you have an air line, and it keeps pumping against a closed outlet. Browse more diaphragm pumps, or compare the QBK65 stainless steel diaphragm pump and the QBK50 and QBK65 seal kit.
Key features
- Flow of up to 280 L/min through 2.5″ inlet and outlet
- Maximum discharge pressure of 6.9 bar, suction lift of 7 m
- Self-priming, with solids up to 8 mm and viscosity up to 10,000 cP
- Air consumption of up to 900 L/min, no electrical supply
- Polypropylene body with PTFE diaphragms
- 2.5″ ports give the highest flow in the QBK range
Where it works
At 2.5″ this is the highest-flow pump in the QBK range, used for dewatering large sumps, bulk tank transfers and moving thick process liquids. Contractors, quarries and treatment works pick it when a 2″ pump is just short of the flow they need. Water works and chemical distributors in Gauteng and KZN pick the plastic body for large acid and caustic transfers.
Fit an air filter and regulator, and match your compressor to the 900 L/min maximum air consumption.
What’s in the box
- QBK65 air diaphragm pump
- Ask us what fittings and accessories are included with your order
Delivery and warranty
Kamano delivers with its own trucks from Polokwane to all nine provinces in 1 to 3 days. Delivery is free on orders of R20,000 or more (VAT incl.). Below that, the fee follows total order weight: this item ships at 45.0 kg, so expect R950 for loads of 30 to 60 kg. Ask us for the warranty terms on this model.
Questions about this product
What compressor do I need for the QBK65?
The QBK65 uses up to 900 L/min of compressed air at full flow, so size your compressor to deliver at least that at working pressure. A smaller compressor still runs the pump but limits its flow. Fit an air filter and a regulator so you can throttle flow and pressure, and keep air pressure at or below 6.9 bar.
Can the polypropylene QBK65 pump handle acids?
Polypropylene resists many acids, alkalis and salt solutions that corrode aluminium, and the PTFE diaphragms add chemical resistance. It is not ideal for hot liquids, strong solvents or heavy knocks. Send us the chemical name and concentration and we will check it against this pump before you order.
Do you deliver this pump to Ladysmith?
Kamano delivers with its own trucks from Polokwane to all nine provinces in 1 to 3 days. At 45.0 kg shipping weight this falls in the 30 to 60 kg band (R950). Delivery is free once your order reaches R20,000 (VAT incl.).
Nationwide delivery from Polokwane
Delivered to all nine provinces in 1 to 3 days
We deliver the QBK65 Air Diaphragm Pump, Polypropylene Body, 280 L/min, 2.5" Ports with our own trucks to Johannesburg, Pretoria, Cape Town, Durban, Gqeberha, Bloemfontein, Polokwane, Mbombela, Thohoyandou, Rustenburg, Upington, Richards Bay, George and Kimberley, and to farms, mines and sites in between. This item ships in the R950 delivery band (30 to 60 kg). Orders of R20,000 or more deliver free with code KH027.
