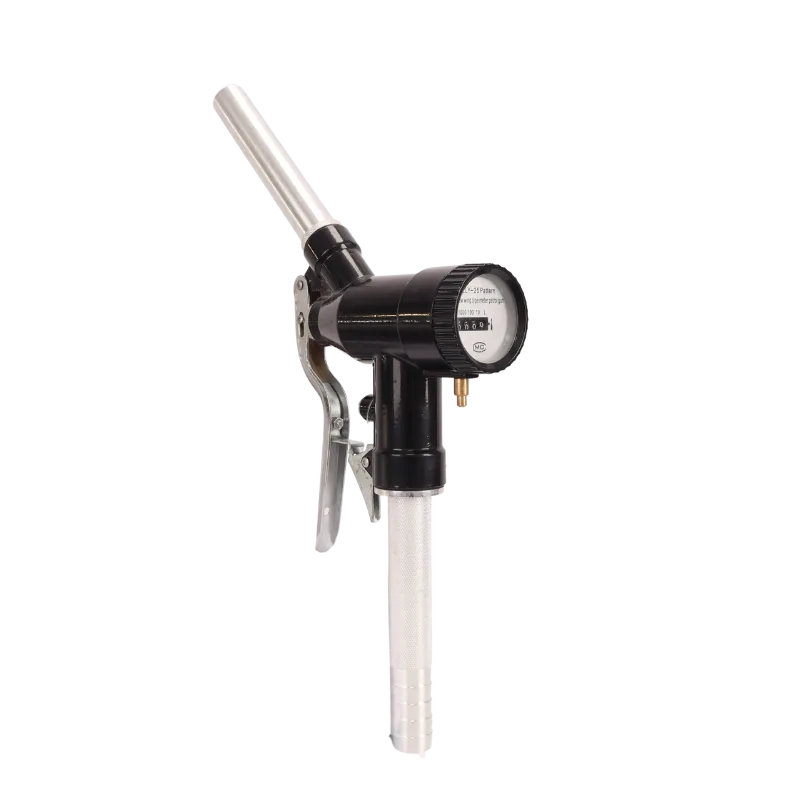

Gravity Metering Nozzle LLY-25, 1-Inch, 25-60 L/min

Description

Overview

The LLY-25 is a metering nozzle: it dispenses fuel and counts the litres in one hand-held unit, with a 4-digit display and a resettable total. It is made for gravity-fed tanks, where the fuel runs down from a raised tank, and it works at 25 to 60 L/min with an accuracy of plus or minus 1%. If you need to know how much each tractor or truck took, this does the job without a separate flowmeter.

Key features

• Built-in 4-digit display with a resettable total
• Accuracy of plus or minus 1%
• Flow range of 25 to 60 L/min
• 1-inch inlet and 1-inch outlet
• Aluminium body, sealed for outdoor use
• Maximum working pressure of 0.3 MPa (3 bar)

Where it works

Gravity tanks on stands are common on Limpopo and Free State farms, where there is no electricity at the tank. The LLY-25 lets the farm manager reconcile fuel by machine or by driver, which helps against shrinkage. It also suits small depots and workshops. Add a standard 19 mm automatic nozzle for vehicle fills, and browse the rest of our fuel nozzles. If you are weighing pump-fed metering instead, the compact 1-inch auto nozzle pairs with a separate flowmeter. Ask us about the fluids this unit suits before using it with anything other than diesel.

What’s in the box

• 1 x LLY-25 gravity metering nozzle with display

Delivery and warranty

Kamano delivers with its own trucks from Polokwane to all nine provinces in 1 to 3 days. Orders of R20,000 or more ship free. At a shipping weight of 1.5 kg this nozzle sits in the lowest delivery band. Ask us for the warranty terms on this model.
