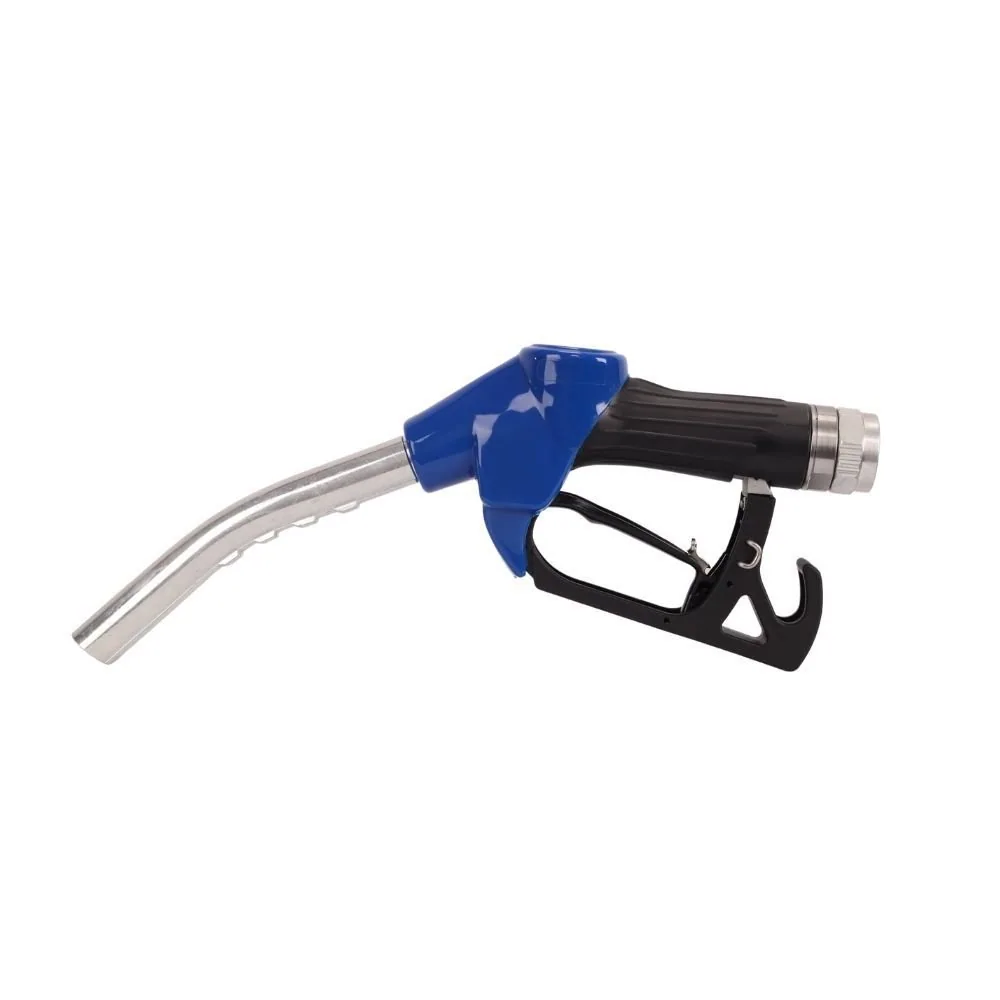

Automatic fuel nozzle with 19 mm spout and 3/4 inch inlet for trucks, 0-60 L/min

Auto Fuel Nozzle 19 mm Spout, 0-60 L/min, 3/4″ Inlet, Aluminium

Name: Auto Fuel Nozzle 19 mm Spout, 0-60 L/min, 3/4" Inlet, Aluminium
SKU: KMN-FUEL-0159
Price: 940.28 ZAR
Availability: InStock

SKU KMN-FUEL-0159

A 19 mm automatic fuel nozzle for trucks, tractors and plant, shutting off when the tank is full, delivered from Polokwane in 1 to 3 days.

R940,28

Wider 19 mm spout for diesel tanks on trucks and plant
Shuts off by itself when the tank is full
Flow 0-60 L/min, 3/4″ inlet
Aluminium body

Delivered by our own trucks in 1 to 3 days. R550 / R950 / R1,450 by order weight. FREE on orders of R20,000 or more with code KH027. Delivery details

Specifications

Flow range	0-60 L/min
Accuracy	N/A (nozzle only, no meter)
Connection size	3/4" inlet
Spout	19 mm
Max pressure	On request
Material	Aluminium
Display type	N/A (no display)
Operation	Automatic (auto-stop)
Fluid compatibility	Diesel, petrol and paraffin (not for AdBlue)
Net weight	1 kg
Shipping weight	1.2 kg
Dimensions	410 × 50 × 160 mm

Description

Overview

This auto fuel nozzle 19mm is an automatic shut-off nozzle with a 19 mm spout and a 3/4″ inlet, rated up to 60 L/min. The wider spout is the usual choice for diesel filler necks on trucks, tractors and earthmoving plant, and the auto-stop closes the valve when the tank is full.

It is the same body as our 16 mm auto fuel nozzle, which suits cars and bakkies. If you prefer a sturdier cast body with a swivel included, look at the 19 mm auto-stop nozzle rated to 70 L/min.

Key features

Automatic shut-off at the spout tip
19 mm spout for truck and plant filler necks
Up to 60 L/min
3/4″ inlet
Aluminium body, diesel and petrol

Where it works

The auto fuel nozzle 19mm is at home on farm diesel tanks filling tractors in the Free State and Mpumalanga, on contractor bowsers fuelling TLBs and graders, and at fleet depots refuelling trucks. Municipal workshops use it on the diesel pump for refuse trucks and water tankers. Push the spout fully into the filler neck before squeezing, so the sensing port at the tip sits inside the tank and the shut-off triggers when it should. A dented or blocked spout is the most common reason an auto nozzle fails to stop. Browse all fuel nozzles to compare spout sizes and flow rates.

What’s in the box

1 × automatic fuel nozzle, 19 mm spout, 3/4″ inlet

Delivery and warranty

Kamano delivers with its own trucks from Polokwane to all nine provinces, normally in 1 to 3 days. This nozzle ships at 1.2 kg, so on its own it sits in the up-to-30 kg band at R550. Fees go by total order weight, so a part this light rarely moves a bigger order into a higher band, and orders of R20,000 or more (VAT incl.) travel free. Tell us your nearest town when you order and we will confirm the delivery day. Ask us for the warranty terms on this model.

Questions about this product

Should I choose a 16 mm or 19 mm spout?

Go by the vehicles you fill. A 16 mm spout fits narrow filler necks on cars and many bakkies. A 19 mm spout suits trucks, tractors and plant with wider diesel necks. If you fuel a mixed fleet from one pump, many sites keep one of each on separate hoses.

Will it fit my existing hose?

It has a 3/4" inlet, the common size on farm and depot transfer pumps. If your hose is 1", use a 3/4" x 1" reducing swivel between hose and nozzle. Check the thread type on your hose end, and send us a photo if you want us to confirm before ordering.

How much is delivery to Middelburg?

The nozzle ships at 1.2 kg, so it falls in the lowest band: R550 for orders up to 30 kg, Middelburg included. Our own trucks run from Polokwane and normally deliver in 1 to 3 days. Orders of R20,000 or more including VAT are delivered free.
