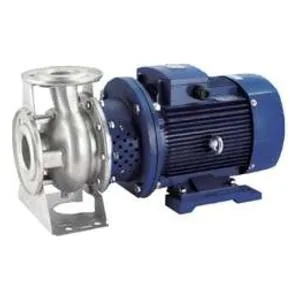

DZA(S) 65-40-160 4 kW stainless steel end-suction pump set with electric motor

DZA(S) 65-40-160 4 kW Stainless End-Suction Pump Set, 380 V or 525 V

SKU KMN-PUMP-0077

A 4 kW stainless-steel end-suction pump set, 42 m³/h and 39 m head, in 380 V or 525 V, delivered across South Africa from Polokwane.

R16 520,00

Complete 4 kW stainless-steel pump and motor set
Up to 39 m head and 42 m³/h (700 L/min)
Choose 380 V or 525 V three-phase motor
65 mm suction, 40 mm delivery flanges

Configuration

Clear

Request Bulk Quote Ask on WhatsApp

Delivered by our own trucks in 1 to 3 days. R550 / R950 / R1,450 by order weight. FREE on orders of R20,000 or more with code KH027. Delivery details

Specifications

Pump type	Flanged end-suction centrifugal, supplied as a pump and motor set
Size code	65-40-160 (65 mm suction, 40 mm delivery, 160 mm nominal impeller)
Pump end material	304 stainless steel (casing and impeller)
Motor	4 kW (5.5 HP), 2-pole, about 2,900 rpm
Voltage / phase	380 V or 525 V three-phase, by option
Max head (shut-off)	39 m (about 3.9 bar)
Max flow	About 42 m³/h (700 L/min)
Best duty point	24 m³/h (400 L/min) at 32.5 m
Head by flow	shut-off (zero flow) 39 m; 12 m³/h (200 L/min) at 35.5 m; 18 m³/h (300 L/min) at 34.5 m; 20 m³/h (333 L/min) at 34 m; 22 m³/h (367 L/min) at 33.5 m; 24 m³/h (400 L/min) at 32.5 m; 27 m³/h (450 L/min) at 32 m; 30 m³/h (500 L/min) at 31 m; 36 m³/h (600 L/min) at 29 m; 42 m³/h (700 L/min) at 26 m
Inlet / outlet	65 mm / 40 mm flanged
Self-priming	No (keep the pump primed)
Duty cycle	Continuous
Fluid compatibility	Clean or slightly aggressive water
Net weight	46 kg
Shipping weight	52 kg
Dimensions	740 x 300 x 380 mm

Description

Overview

The DZA(S) 65-40-160 4 kW end-suction pump set is a flanged centrifugal pump with a 304 stainless-steel pump end, supplied fitted to a 4 kW (5.5 HP) electric motor. It moves up to 42 m³/h (700 L/min) against a shut-off head of 39 m, about 3.9 bar with the valve closed, and it is rated for continuous duty on clean or slightly aggressive water.

Pump and motor arrive as one set, in your choice of 380 V or 525 V three-phase, which makes it a straightforward 4 kW stainless steel end-suction pump for a farm, plant room or cooling circuit.

Key features

304 stainless-steel casing and impeller
Flanged ports: 65 mm suction, 40 mm delivery, 160 mm nominal impeller
4 kW (5.5 HP) two-pole motor at about 2,900 rpm
Continuous-duty build for irrigation, transfer and circulation
Works best around 24 m³/h at 32.5 m

Options

Choose the motor voltage when you order. Both options use the same stainless pump end and 4 kW motor.

With 380 V three-phase motor, R 16,520: for standard three-phase farm and industrial supplies.
With 525 V three-phase motor, R 16,520: for sites running a 525 V supply, common on mines.

Either motor needs a three-phase supply with a suitable starter and overload. Prefer your own motor? See the DZA(S) 65-40-160 4 kW bareshaft pump.

Where it works

Typical jobs are farm and orchard irrigation (think KZN sugar and timber estates), dam and reservoir transfer, building water supply, HVAC and cooling-water circulation, and general industrial water. Add the lift from the water level to the highest outlet to about 1 m per 10 m of pipe and fittings, then check the head at your flow. Compare the DZA(S) 65-40-160 3 kW pump set or browse the pump range.

What’s in the box

DZA(S) 65-40-160 stainless-steel pump end, fitted to its motor
4 kW (5.5 HP) three-phase motor, 380 V or 525 V as ordered

Delivery and warranty

Kamano delivers with its own trucks from Polokwane to all nine provinces in 1 to 3 days, including Cape Town, George, Upington, Kimberley and Gqeberha. Shipping weight is 52 kg, so on its own it falls in the 30 to 60 kg delivery band (R950). Delivery is charged on total order weight and is free on orders of R20,000 or more (VAT incl.). Ask us for the warranty terms on this model.

Questions about this product

Can I run the 4 kW 65-40-160 pump on single-phase power?

No. Both motor options are three-phase, 380 V or 525 V, so you need a three-phase supply with a suitable starter and overload. If you only have single-phase power, send us your flow, lift and pipe length and we will suggest a pump that suits your supply instead.

How do I know if this pump suits my job?

Add the height the water must be lifted, from the water level to the highest outlet, to about 1 m for every 10 m of pipe and fittings. That is your total head. This set works best around 24 m³/h at 32.5 m, so it is a good match when the head at your flow is at or just above your total. Send us your flow, lift and pipe length and we will size it.

Do you deliver to George?

Yes. Kamano delivers with its own trucks from Polokwane to all nine provinces in 1 to 3 days, including George. This set ships at 52 kg, so on its own it falls in the 30 to 60 kg delivery band (R950). Orders of R20,000 or more (VAT incl.) get free delivery.

Can I buy the pump end without the motor?

Yes, a bareshaft pump end of the same family is available for customers who supply their own motor or engine. Look at the linked bareshaft listing in the options above, or ask us and we will confirm the right pump end for your duty point before you order.
