Aluminium Diesel Flow Meter, 4-Digit Mechanical, 30 to 120 L/min, 1″ BSP

Description

Overview

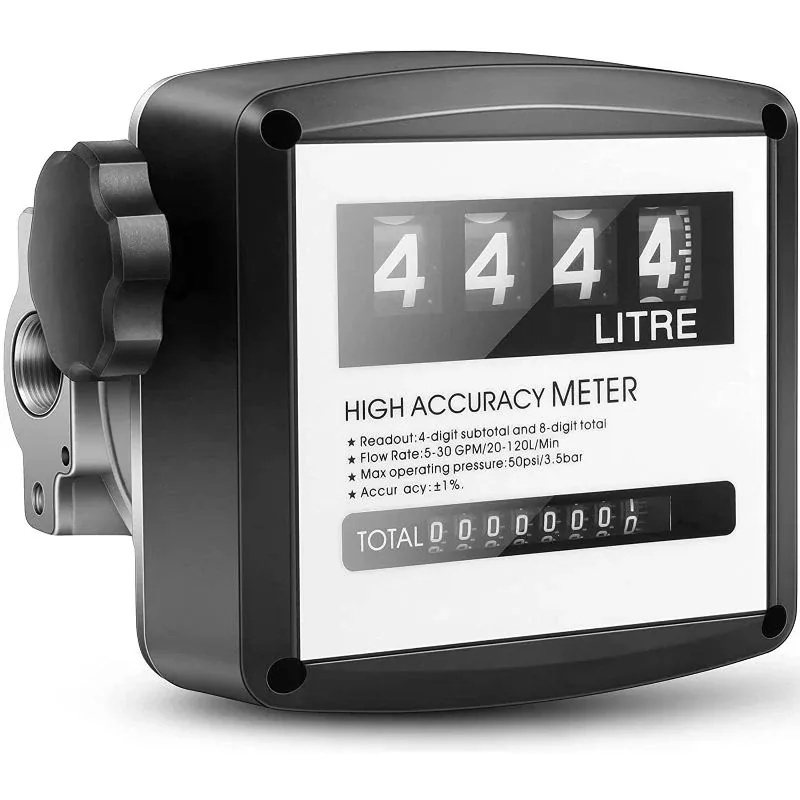

This diesel flow meter is a die-cast aluminium mechanical meter with a resettable 4-digit counter and a master totaliser. It fits inline on a 1 inch BSP delivery line and measures diesel flowing between 30 and 120 L/min to within about 1 percent.

Being fully mechanical, it needs no batteries and no power supply, so it keeps counting in dust, heat and rain. The resettable counter shows each fill, while the totaliser keeps the lifetime figure for your monthly reconciliation. Compare that total with your fuel supplier invoices and you will quickly see whether every litre bought is being accounted for on site.

Key features

• Resettable 4-digit counter, reading up to 9,999 L per fill
• Master totaliser that cannot be reset by the operator
• Flow range 30 to 120 L/min, suits most 12V and 220V pumps
• Accuracy of about plus or minus 1 percent
• Die-cast aluminium body, 1 inch BSP, rated to 3.5 bar

Where it works

Fit a diesel flow meter wherever fuel leaves a tank and nobody is counting: on bakkie bowsers that fuel tractors across Free State farms, on site tanks for construction crews in Gauteng, and on fuel points at Limpopo game lodges. Fleet managers use the totals to spot theft or a vehicle burning too much fuel. It pairs well with the 12V 40 L/min pump box, and a 20 m roll of 20 mm diesel hose completes the delivery side. See all diesel pumps and accessories.

What’s in the box

• 4-digit mechanical diesel flow meter

Delivery and warranty

Kamano delivers with its own trucks from Polokwane to all nine provinces, normally in 1 to 3 days. This item ships at 2.3 kg, which puts it in the up to 30 kg band at R550. Orders of R20,000 or more (VAT incl.) travel free. Ask us for the warranty terms on this model.
