12V diesel pump box with 40 L/min pump, 4 m delivery hose and nozzle

12V Diesel Pump Box, 40 L/min, with 4 m Hose and Nozzle

Name: 12V Diesel Pump Box, 40 L/min, with 4 m Hose and Nozzle
SKU: KMN-FUEL-0015
Price: 2219.70 ZAR
Availability: InStock

SKU KMN-FUEL-0015

A boxed 12V diesel pump at 40 L/min with hose, nozzle and filtered suction line, for farms and sites, delivered from Polokwane in 1 to 3 days.

R2 219,70

Carry it to the drum or bolt it down on the bakkie
Clips onto any 12V battery, no generator needed
40 L/min, 155 W, 13 A draw
4 m x 25 mm delivery hose with nozzle and filtered suction hose

Delivered by our own trucks in 1 to 3 days. R550 / R950 / R1,450 by order weight. FREE on orders of R20,000 or more with code KH027. Delivery details

Specifications

Flow rate	Up to 40 L/min
Max head / pressure	On request
Voltage / phase	12V DC
Power	155 W (about 13 A)
Inlet / outlet	20 mm pump ports
Self-priming	Yes (rotary-vane type)
Duty cycle	15 min on, then let it cool
Fluid compatibility	Diesel and paraffin only, not petrol
Delivery hose	4 m x 25 mm with nozzle
Suction	Suction hose with inlet filter
Net weight	11.6 kg
Shipping weight	12.5 kg
Dimensions	On request

Description

Overview

This diesel pump box is a 12V transfer pump housed in a protective carry and mounting box, supplied with a 4 m delivery hose, a nozzle and a suction hose with an inlet filter. It moves diesel out of a drum, IBC or tank at about 40 L/min, so a 200 L drum is empty in roughly five minutes.

The box keeps the pump, cable and hoses together in one place instead of loose in the load bin. Lift it off the bakkie at the drum, connect the clamps to the battery, drop the suction line in and start filling. When you are done, everything packs back inside.

Key features

12V DC motor rated at 155 W, drawing about 13 A from the battery
Delivery of up to 40 L/min for tractors, generators and light plant
Suction hose with filter to keep drum sludge out of the pump
4 m by 25 mm delivery hose with nozzle for reaching filler necks
Box protects the pump on rough farm roads and keeps the kit tidy

Where it works

Farmers use this diesel pump box to refuel tractors in the land from a drum on the back of the bakkie, which saves a trip to the yard during Free State planting or Limpopo harvest. Contractors keep one in the site container to top up compactors and plate generators, and it is a handy backup when load-shedding means the standby genset needs filling at night. For a fixed fuel point, compare our 40 L/min pump kit on a wall plate, and if you need a longer reach add a 24 m length of 20 mm diesel hose. See the rest of our diesel pumps and accessories.

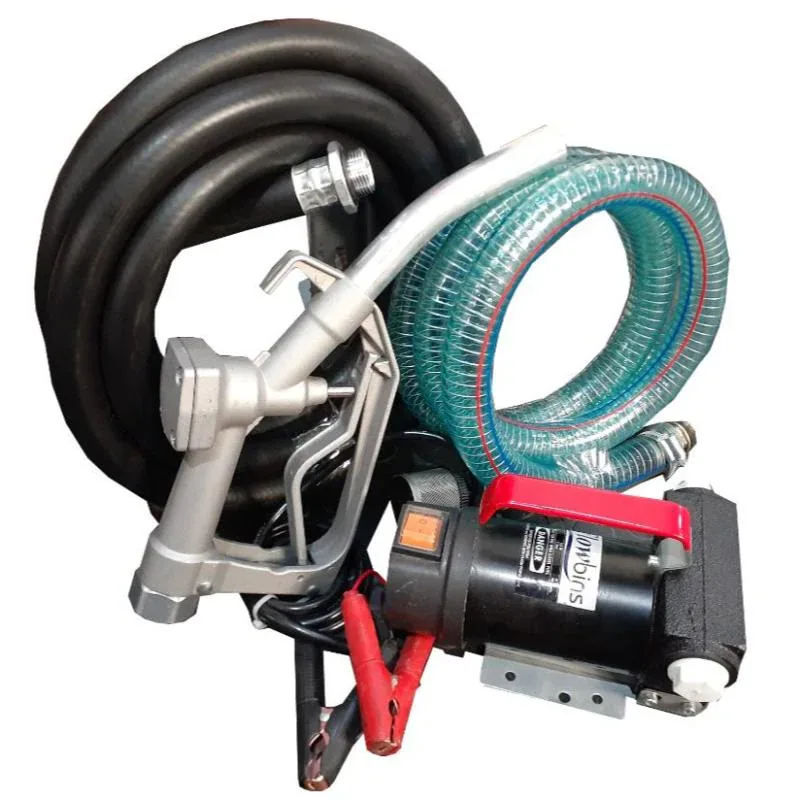

What’s in the box

12V 40 L/min diesel pump fitted in a carry and mount box
4 m x 25 mm delivery hose
Diesel nozzle
Suction hose with inlet filter

Delivery and warranty

Kamano delivers with its own trucks from Polokwane to all nine provinces, normally in 1 to 3 days. This item ships at 12.5 kg, which puts it in the up to 30 kg band at R550. Orders of R20,000 or more (VAT incl.) travel free. Ask us for the warranty terms on this model.

Questions about this product

Can I run this pump box off my bakkie battery?

Yes. The pump runs on 12V DC and draws about 13 A, so it clips straight onto a bakkie, tractor or deep-cycle battery. Keep the engine idling during longer transfers so the battery stays charged. Stick to runs of about 15 minutes, then give the motor a rest before carrying on.

Will it pump petrol?

No. This pump is built for diesel and paraffin only. Petrol vapour can ignite inside a standard brush motor and the seals are not rated for it, so never use it on petrol, avgas or solvents. For petrol you need a pump that is specifically certified for flammable fuels.

How much is delivery to a farm in the Karoo?

The pump box ships at 12.5 kg, which falls in the up to 30 kg band at R550 anywhere in South Africa, Karoo farms included. Our own trucks leave Polokwane and usually arrive in 1 to 3 days. If your order adds up to R20,000 or more including VAT, delivery is free.
