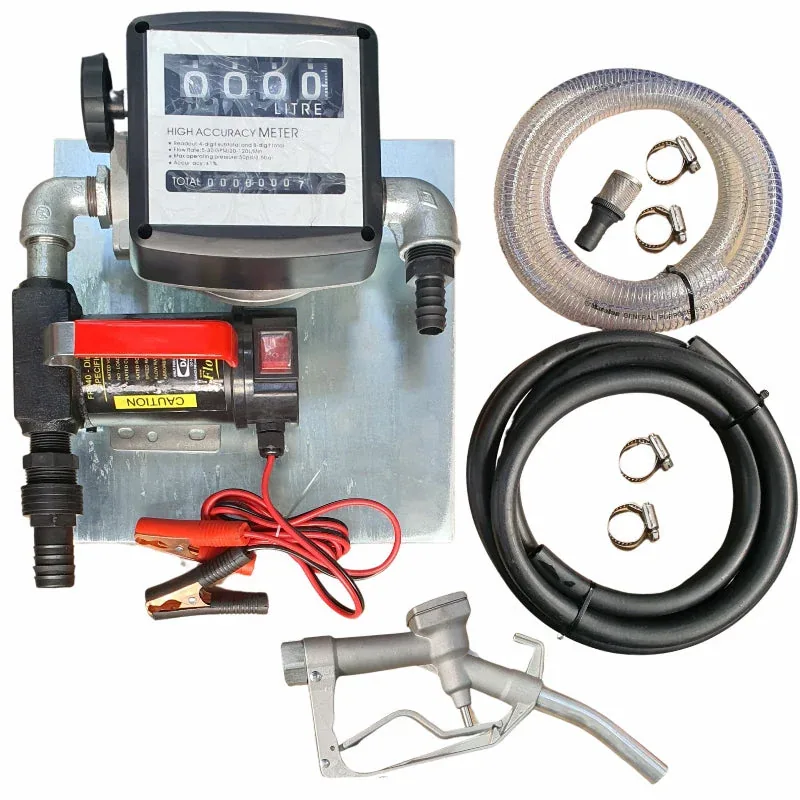

12V diesel pump kit, 40 L/min, assembled on a wall-mount plate with 4 m hose and nozzle

12V Diesel Pump Kit on Wall Plate, 40 L/min, 4 m x 20 mm Hose

Name: 12V Diesel Pump Kit on Wall Plate, 40 L/min, 4 m x 20 mm Hose
SKU: KMN-FUEL-0016
Price: 4522.35 ZAR
Availability: InStock

SKU KMN-FUEL-0016

A 12V 40 L/min diesel pump kit, built up on a wall-mount plate, for workshops and farm fuel points, delivered from Polokwane in 1 to 3 days.

R4 522,35

Arrives assembled: bolt the plate up, connect and pump
Runs on 12V solar or battery power at remote sites
40 L/min, 155 W, 30 min duty cycle
4 m x 20 mm delivery hose with nozzle

Delivered by our own trucks in 1 to 3 days. R550 / R950 / R1,450 by order weight. FREE on orders of R20,000 or more with code KH027. Delivery details

Specifications

Flow rate	Up to 40 L/min
Max head / pressure	On request
Voltage / phase	12V DC
Power	155 W (about 13 A)
Inlet / outlet	On request
Self-priming	Yes (rotary-vane type)
Duty cycle	30 min
Fluid compatibility	Diesel only, not petrol
Mounting	Steel wall plate
Delivery hose	4 m x 20 mm with nozzle
Filter	Not included
Net weight	9.1 kg
Shipping weight	9.8 kg
Dimensions	On request

Description

Overview

This 12v diesel pump kit is a 40 L/min transfer pump already mounted and plumbed on a steel wall plate, with a 4 m by 20 mm delivery hose and nozzle. You fix the plate to a wall, post or tank stand, run the suction line into your tank and it is ready to dispense.

Because the kit comes pre-assembled, there is no hunting for fittings or thread tape on the day. It suits a small fixed fuel point where a full bowser would be overkill, and it keeps every fill in one known spot so you can see who is drawing fuel and when.

Key features

12V DC motor, 155 W, about 13 A current draw
Up to 40 L/min delivery for bakkies, tractors and generators
Rated for 30 minutes of continuous running before a cool-down
Wall plate keeps the pump off the ground and away from water
4 m by 20 mm hose with nozzle hangs neatly on the plate

Where it works

A 12v diesel pump kit like this one is a common sight beside a farm diesel tank in Mpumalanga or a game lodge store in Limpopo, where there is no mains power but there is a battery and a solar panel. Small contractors fit one in the yard to fuel their own bakkies and TLBs. If dirty fuel is a worry, the same kit with a clear dirt filter is the next step up, and a 30 m roll of 25 mm diesel hose covers longer runs. Browse all diesel pumps and accessories.

What’s in the box

Wall-mount plate with 12V 40 L/min pump fitted
4 m x 20 mm delivery hose
Diesel nozzle

Delivery and warranty

Kamano delivers with its own trucks from Polokwane to all nine provinces, normally in 1 to 3 days. This item ships at 9.8 kg, which puts it in the up to 30 kg band at R550. Orders of R20,000 or more (VAT incl.) travel free. Ask us for the warranty terms on this model.

Questions about this product

Can I power this kit from a solar battery?

Yes. The pump needs 12V DC and draws about 13 A, so a deep-cycle battery charged by a small solar panel will run it. Use a fused cable of the right thickness and keep runs under 30 minutes. Many farm fuel points in Limpopo work exactly like this, with no Eskom supply at the tank.

Does the kit come with a suction hose?

The kit ships with the pump assembled on its plate, a 4 m delivery hose and a nozzle. Suction arrangements depend on your tank, so tell us the tank type and outlet size when you order and we will confirm which suction parts you need before the truck leaves Polokwane.

How much is delivery to Rustenburg?

This kit ships at 9.8 kg, which places it in the up to 30 kg band at R550 to Rustenburg or anywhere else in South Africa. We use our own trucks from Polokwane and normally arrive in 1 to 3 days. Orders totalling R20,000 or more including VAT are delivered free.
