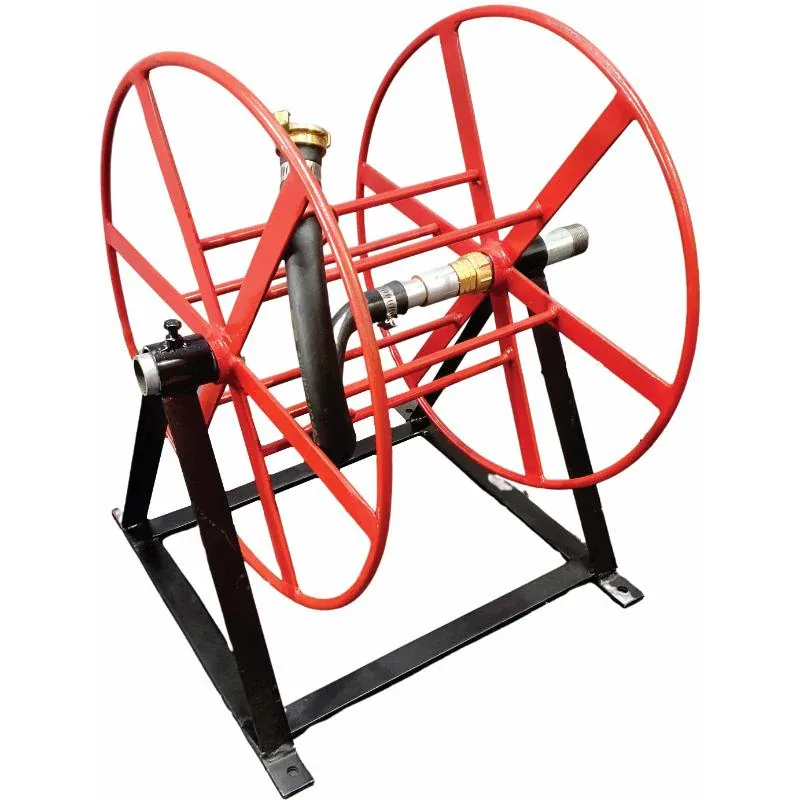

Medium red painted steel diesel hose reel with crank handle, holds up to 40 m of 20 mm hose

Medium Painted Steel Diesel Hose Reel, 40 m × 20 mm Capacity

Name: Medium Painted Steel Diesel Hose Reel, 40 m × 20 mm Capacity
SKU: KMN-FUEL-0041
Price: 2631.30 ZAR
Availability: InStock

SKU KMN-FUEL-0041

A medium painted steel diesel hose reel for workshops and covered fuel points, holding up to 40 m of hose, delivered from Polokwane in 1 to 3 days.

R2 631,30

Keeps a long delivery hose coiled and off the workshop floor
Lower price than the galvanised version for indoor use
Takes 40 m × 20 mm or 25 m × 25 mm hose
Painted steel, manual crank, hose not included

Delivered by our own trucks in 1 to 3 days. R550 / R950 / R1,450 by order weight. FREE on orders of R20,000 or more with code KH027. Delivery details

Specifications

Type	Manual-wind hose reel, medium size
Hose capacity	40 m × 20 mm or 25 m × 25 mm
Hose included	No, sold separately
Finish	Painted steel (standard)
Operation	Manual crank (no spring rewind)
Inlet / outlet	On request
Max pressure	On request
Fluid compatibility	Diesel, paraffin, water
Net weight	25 kg
Shipping weight	26.3 kg
Dimensions	On request

Description

Overview

This medium diesel hose reel is a painted steel drum with a hand crank that stores up to 40 m of 20 mm hose, or 25 m of 25 mm hose, between refuelling jobs. It is the standard-finish version of our medium reel, built for fuel points that sit under a roof or inside a workshop where weather is not the main enemy.

Long hoses left on the floor get driven over, kinked and dragged through grit. Winding them onto a diesel hose reel keeps them clean and protects the fittings. For a reel that lives in the open, the medium galvanised hose reel is the better buy.

Key features

Medium drum: 40 m × 20 mm or 25 m × 25 mm hose
Painted steel body for covered and indoor installations
Simple crank wind, no spring to fatigue or snap
Mounting frame bolts to a wall, plinth or skid
Mounting frame supplied

Where it works

Typical homes for this reel are transport depot workshops in Gauteng, mine plant yards where the fuel point has a canopy, and farm sheds in Limpopo where the bakkie, tractor and generator all fill from one tank. Pair it with a mains pump such as our 60 L/min 220V diesel pump for a fixed fuel station. See all our diesel pumps and accessories for the rest of the kit.

What’s in the box

1 × medium painted steel hose reel with crank
Mounting frame (hose and fittings sold separately)

Delivery and warranty

Kamano delivers with its own trucks from Polokwane to all nine provinces, normally in 1 to 3 days. This item ships at 26.3 kg, which puts it in the up-to-30 kg band at R550. Orders of R20,000 or more (VAT incl.) travel free, so it pays to combine it with a bigger order. Ask us for the warranty terms on this model.

Questions about this product

What is the difference between the standard and galvanised reel?

Only the finish. Both medium reels hold the same 40 m of 20 mm hose or 25 m of 25 mm hose and wind by hand. The standard reel is painted steel and costs less, which suits workshops and covered fuel points. The galvanised reel resists rust far better on open trailers, coastal sites and wash bays.

Will a 25 mm hose fit on this reel?

Yes. With 25 mm bore hose the drum takes about 25 m, because the thicker hose fills the drum faster. If you need more reach than that, drop to 20 mm hose and you can wind on up to 40 m. Check that your hose fittings match the reel inlet before ordering.

Do you deliver to Rustenburg?

Yes, we deliver to Rustenburg and every other town in the nine provinces with our own trucks from Polokwane, normally in 1 to 3 days. This reel ships at 26.3 kg, so it falls in the up-to-30 kg band at R550. Orders of R20,000 or more including VAT ship free.

Nationwide delivery from Polokwane

Delivered to all nine provinces in 1 to 3 days

We deliver the Medium Painted Steel Diesel Hose Reel, 40 m × 20 mm Capacity with our own trucks to Johannesburg, Pretoria, Cape Town, Durban, Gqeberha, Bloemfontein, Polokwane, Mbombela, Pietermaritzburg, Welkom, Richards Bay, Upington, Rustenburg and Thohoyandou, and to farms, mines and sites in between. This item ships in the R550 delivery band (up to 30 kg). Orders of R20,000 or more deliver free with code KH027.
