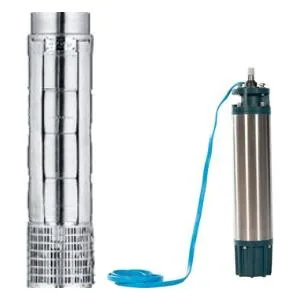

6-inch SP60-12 stainless steel multistage borehole pump, 22 kW, 168 m max head, complete set with motor

6″ Borehole Pump SP60-12, 22 kW, 168 m Max Head

SKU KMN-BORE-0041

SP60-12 6-inch stainless steel multistage borehole pump, 22 kW, 168 m head, for irrigation, water schemes and mines, delivered across South Africa.

Price range: R10 392,00 through R51 424,00

6-inch stainless steel multistage submersible pump, 168 m maximum head
124 m of head at 42 m³/h (700 L/min), flows up to 78 m³/h
Three-phase 22 kW: complete 380 V set, 525 V set or pump end only
Needs a borehole of at least 150 mm internal diameter
Delivered by Kamano trucks from Polokwane in 1 to 3 days

Configuration

Clear

Request Bulk Quote Ask on WhatsApp

Delivered by our own trucks in 1 to 3 days. R550 / R950 / R1,450 by order weight. FREE on orders of R20,000 or more with code KH027. Delivery details

Specifications

Pump range	SP60 (VP62A-12), 6-inch multistage submersible
Flow rate	Up to 78 m³/h (1,300 L/min); duty point 700 L/min (42 m³/h) at 124 m
Max head / pressure	168 m at closed valve
Voltage / phase	380 V or 525 V three-phase, by option
Power	22 kW
Motor type	Oil-filled (25 bar) or water-filled (35 bar) on 380 V sets; water-filled on 525 V
Inlet / outlet	On request
Self-priming	N/A (submersible)
Duty cycle	On request
Fluid compatibility	Clean borehole water
Construction	Stainless steel pump end, 6-inch body
Minimum borehole	150 mm internal diameter
Performance curve	0 L/min: 168 m; 100 L/min: 167 m; 200 L/min: 167 m; 300 L/min: 164 m; 400 L/min: 155 m; 500 L/min: 144 m; 600 L/min: 133 m; 700 L/min: 124 m; 800 L/min: 116 m; 900 L/min: 106 m; 1000 L/min: 94 m; 1100 L/min: 80 m; 1200 L/min: 62 m; 1300 L/min: 44 m
Net weight	160 kg
Shipping weight	180 kg
Dimensions	2450 x 150 x 150 mm

Description

Overview

The SP60-12 (also listed as VP62A-12) is a 6-inch stainless steel multistage submersible borehole pump with a maximum head of 168 m and flows up to 78 m³/h. It is the 22 kW size in the SP60 range (nominal flow around 60 m³/h). At 42 m³/h (42,000 litres an hour) it still delivers 124 m of head. This 6 inch borehole pump is three-phase only.

Key features

Stainless steel pump construction in a 6-inch body, for boreholes of 150 mm internal diameter or more
Maximum head of 168 m, with 124 m available at 42 m³/h (700 L/min)
Oil-filled motors are sealed units rated 25 bar; water-filled motors are rated 35 bar and can usually be rewound if they burn out

Options

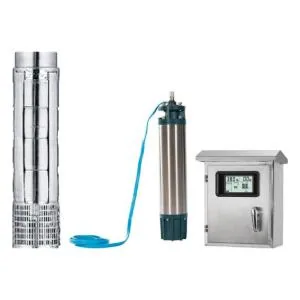

380 V set, oil-filled motor, 30A controller, R 34,944: SP60-12 pump end, 22 kW 380 V three-phase oil-filled 6-inch motor and 30A intelligent pump controller.
380 V set, water-filled motor, 30A controller, R 35,096: SP60-12 pump end, 22 kW 380 V three-phase water-filled 6-inch motor and 30A intelligent pump controller.
525 V set, water-filled motor, no starter, R 51,424: SP60-12 pump end and a 22 kW 525 V three-phase water-filled 6-inch motor. A starter panel or VSD is not included.
Pump end only, R 10,392: the SP60-12 wet end without a motor, to replace a worn pump end on an existing 22 kW 6-inch motor.

Where it works

It is a fit for Free State grain and pivot irrigation, Northern Cape schemes and mine water supply where the borehole yield is high and the water level is deep. Add your pumping water level, the lift to your tank and about 10% for pipe friction, then pick a pump whose head at your flow beats that total. Check the driller’s yield test first, or the pump can run the borehole dry. Browse all borehole pumps or compare the SP60-11 pump, 22 kW with the SP60-14 pump, 26 kW.

What’s in the box

SP60-12 6-inch pump end
Motor and controller, as per the option chosen
Not included: submersible cable, rope, delivery pipe and base plate

Delivery and warranty

Kamano delivers with its own trucks from Polokwane to all nine provinces in 1 to 3 days, including Bloemfontein, Welkom, Kimberley, Johannesburg, Klerksdorp and Pretoria. A complete set ships at about 180 kg, so delivery is quoted for your address, and orders of R20,000 or more (VAT incl.) are delivered free. Contact us to confirm stock and lead time. Ask us for the warranty terms on this model.

Questions about this product

What size borehole does the SP60-12 need?

Your borehole needs an internal diameter of at least 150 mm, because the pump body is 6 inches. Check the casing size on your driller's report before ordering. If you are unsure, send us the borehole depth, water level and yield and we will confirm whether this model fits before you pay.

Does the SP60-12 set include cable, rope and pipe?

No. Submersible cable, rope, delivery pipe and the base plate are not included in any option. The 380 V sets include a 30A controller; the 525 V set has no starter. The pump end comes on its own. Your installer must supply the cable and delivery pipe, and fit a starter where none is included.

Do you deliver the SP60-12 to Bloemfontein?

Yes. Kamano delivers from Polokwane to Bloemfontein and the rest of the country in 1 to 3 days. A complete set ships at about 180 kg, which is over 100 kg, so delivery is quoted for your address. Orders of R20,000 or more (VAT incl.) are delivered free.

Is 168 m of head enough for my borehole?

Add the depth to your pumping water level, the height to your tank and about 10% for pipe friction. At 42 m³/h this pump gives 124 m, so keep your total head below that for full flow. The 168 m figure is the closed-valve maximum, not a working figure.
