5000 L Tank and 0.75 kW Intelli VSD Booster Pump Combo
SKU KMN-WATR-0333
A 5000 L tank with a 0.75 kW self-priming Intelli VSD booster pump, filter and UV steriliser, delivered across South Africa.
R16 312,59
- 5000 L tank with 0.75 kW Intelli VSD booster pump, filter and UV steriliser in one kit
- Self-priming pump with variable speed control for steady pressure
- Includes pump house cover, pipe set with ball valves and float valve
- Ships at 111 kg, delivered nationwide from Polokwane
Delivered by our own trucks in 1 to 3 days. R550 / R950 / R1,450 by order weight. FREE on orders of R20,000 or more with code KH027. Delivery details
Specifications
| Tank capacity | 5000 L nominal, 5325 L maximum |
|---|---|
| Tank material | Rotomoulded virgin LLDPE with black inner liner |
| Tank diameter × height | 1800 mm × 2200 mm, 450 mm manhole |
| Pump type | Intelli VSD booster pump, 0.75 kW |
| Flow rate | Up to 83.3 L/min |
| Max head / pressure | Up to 35 m head |
| Voltage / phase | On request |
| Inlet / outlet | On request |
| Self-priming | Yes |
| Duty cycle | On request |
| Fluid compatibility | Clean water up to 40 °C |
| UV steriliser | 55 W, 304 stainless steel casing, 2700 L/h, 1 in inlet and outlet |
| Filter | 3-stage wall mount, 20 inch cartridges (5 micron PP, GAC, nano silver CTO), 5 bar, 50 °C max |
| Float valve | Brass, 15 mm, 6 bar max |
| Pump house | Grey plastic cover included |
| Warranty | Tank: 1 to 2 years, depending on the model |
| Net weight | 108 kg |
| Shipping weight | 111 kg |
| Dimensions | 1800 × 1800 × 2200 mm |
Description
Overview
This is a 5000 L tank kit with a 0.75 kW Intelli VSD booster pump, the smallest variable-speed option in the 5000 L range. It is self-priming, so it pulls water up from the tank or a well without a manual fill every time.
Flow reaches 83.3 L/min at up to a 35 m head, and the variable speed control keeps the pressure even as demand changes. The housing is light, which makes transport and installation easier on a remote site where you have no lifting gear.
Shopping for a 5000l tank with vsd booster pump? Browse more in our tank and pump combo kits, or compare it with the related tank and booster pump combo or the 5000 L combo with a 1.5 kW Intelli VSD booster pump.
Key features
- Self-priming pump with variable speed control for steady pressure
- Up to 83.3 L/min at a 35 m head
- Light enough to carry and install without a crane
- Can empty a well and still supply enough pressure for an irrigation system
- UV steriliser and 3-stage filter included
- Black inner liner on the tank helps keep algae down
- Pump house cover, ball-valve pipe set and float valve supplied
Where it works
It suits a Karoo farmhouse running off a borehole, a Mpumalanga smallholding, a rural clinic in the Eastern Cape or a KZN homestead. The self-priming feature helps where the pump sits a little above the water level, and the VSD saves power on small loads.

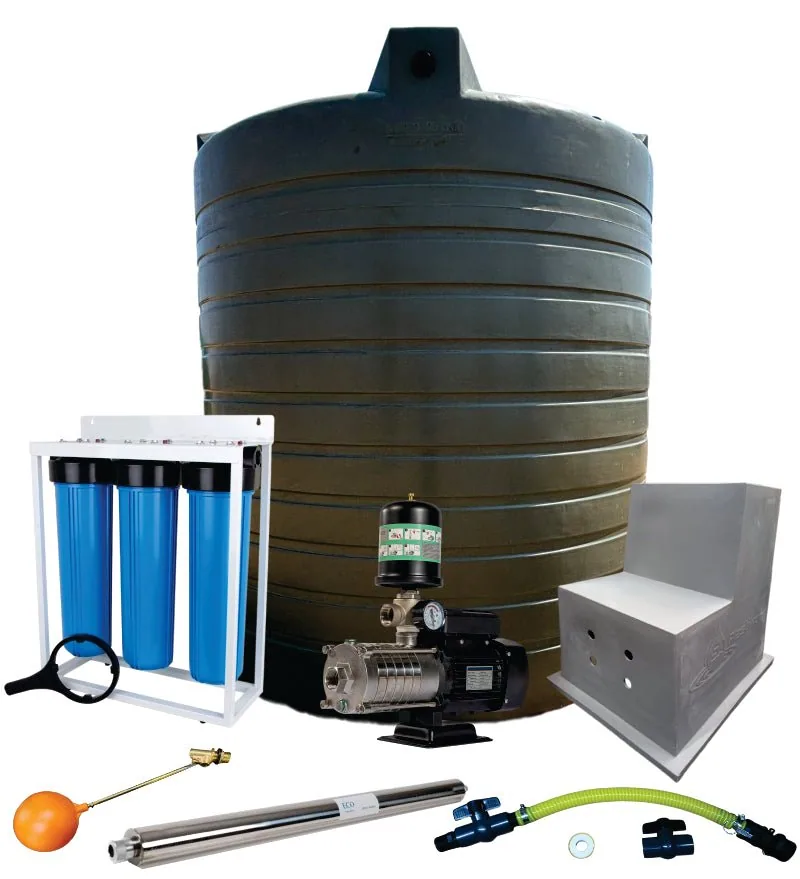

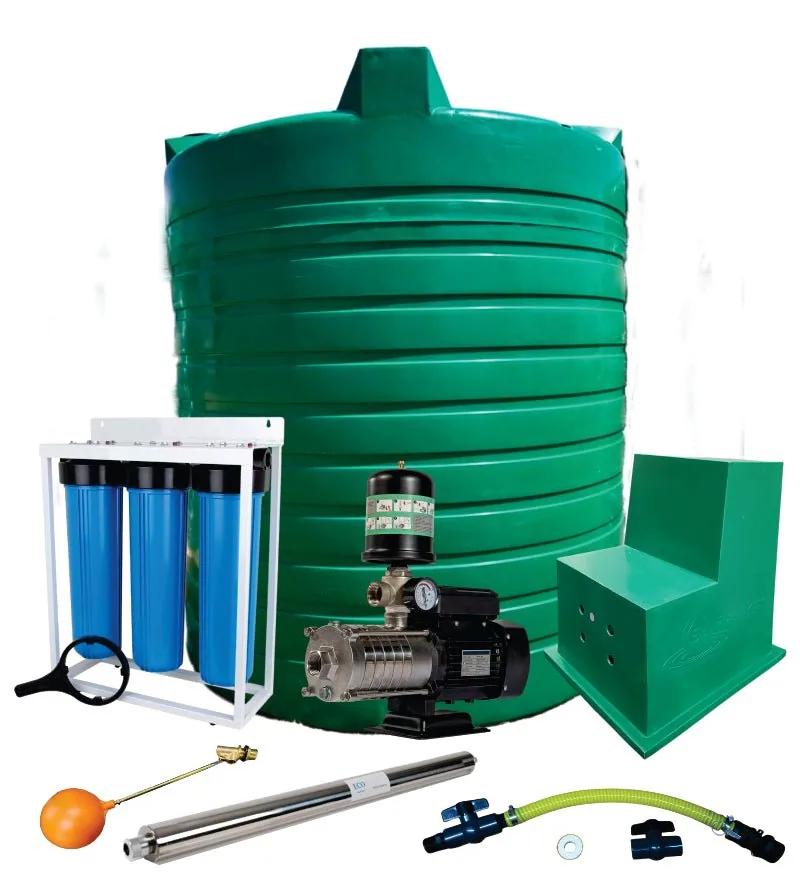

What’s in the box
- 5000 L vertical LLDPE water tank
- 0.75 kW Intelli VSD booster pump
- 3-stage wall-mount filter (5 micron PP, GAC and nano silver CTO cartridges) with spanner
- 55 W UV steriliser, 304 stainless steel casing
- Grey plastic pump house cover
- Tank-to-pump pipe set with ball valves
- 15 mm brass float valve kit with ball
Delivery and warranty
Kamano delivers with its own trucks from Polokwane to all nine provinces in 1 to 3 days, and delivery is free on orders of R20,000 or more (VAT incl.). This combo ships at 111 kg, so delivery is quoted for your site. The tank carries a warranty of 1 to 2 years, depending on the model, confirmed on your quote. Ask us for the pump warranty terms.
Questions about this product
Does this pump prime itself?
Yes, the Intelli VSD pump is self-priming, so it draws water up without you hand-filling the suction line each time. It still needs water in it before the very first start, and a sound foot valve and airtight suction joints. Do not let it run dry for long.
Is the tank really 5000 litres and how big is it?
The tank is a 5000 L nominal vertical rotomoulded LLDPE tank that holds up to 5325 L when filled to the brim. It stands about 2200 mm high on a 1800 mm diameter footprint, with a 450 mm manhole. Prepare a level, firm base before delivery, because a full tank weighs over five tonnes.
Is 83 L/min enough for a house?
For most homes, yes. A shower uses roughly 8 to 12 L/min and a garden tap a little more, so 83.3 L/min covers several outlets at the same time. If you add irrigation or a big washdown point, look at the 1.5 kW Intelli VSD combo instead, which gives about 133 L/min.
How much is delivery on this tank combo, and do you deliver to my farm?
We deliver with our own trucks from Polokwane to all nine provinces in 1 to 3 days. This combo ships at 111 kg, which is over 100 kg, so the delivery fee is on quotation. Send us your town or farm address and we will quote you. Orders from R20,000 VAT incl. get free delivery.
Nationwide delivery from Polokwane
Delivered to all nine provinces in 1 to 3 days
We deliver the 5000 L Tank and 0.75 kW Intelli VSD Booster Pump Combo with our own trucks to Johannesburg, Pretoria, Cape Town, Durban, Gqeberha, Bloemfontein, Polokwane, Mbombela, Kimberley, Secunda, Klerksdorp, Richards Bay, Upington and East London, and to farms, mines and sites in between. This item ships in the delivery on quotation (over 100 kg). Orders of R20,000 or more deliver free with code KH027.
Pairs well with
-
KMN-WATR-0325

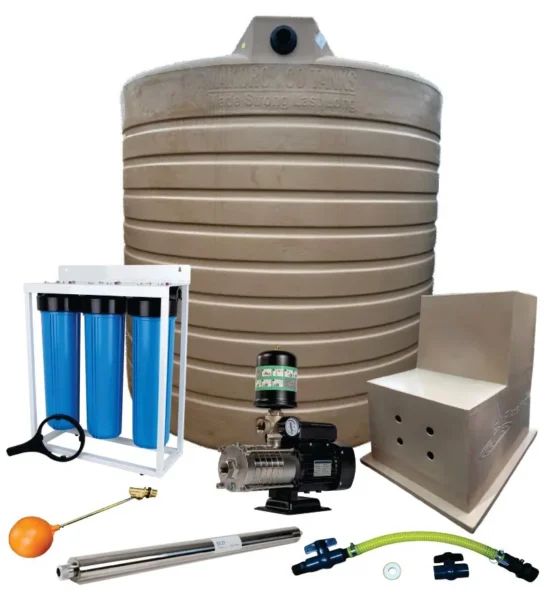

2,500 L Tank Combo, 1.5 kW VSD Booster Pump (133.3 L/min), Filter and UV
