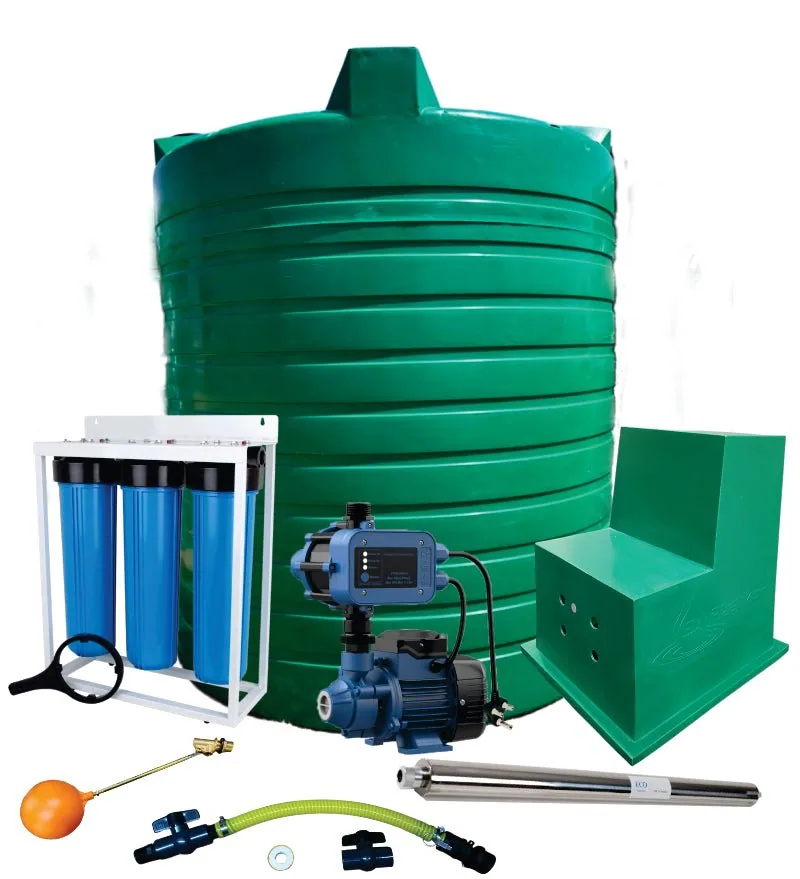

10 000 L Full House Tank Combo, 0.37 kW Econo Pump
SKU KMN-WATR-0274
A 10 000 L tank with a 0.37 kW Econo peripheral pump, 3-stage filter and UV light for farms, homes and sites, delivered across South Africa by Kamano.
R17 957,16
- Tank, pump, pipe set and float valve in one kit, plus filter and UV light
- 10 000 L LLDPE tank, 0.37 kW Econo peripheral pump
- Up to 23 L/min, head up to 30 m
- Ships at 210.0 kg from Polokwane
Delivered by our own trucks in 1 to 3 days. R550 / R950 / R1,450 by order weight. FREE on orders of R20,000 or more with code KH027. Delivery details
Specifications
| Tank capacity | 10 000 L |
|---|---|
| Maximum tank capacity | 10 300 L |
| Tank material | Rotomoulded LLDPE, black inner liner |
| Tank empty weight | 170 kg |
| Pump type | Peripheral (Econo) |
| Pump power | 0.37 kW |
| Flow rate | Up to 23 L/min |
| Max head | Up to 30 m |
| Voltage / phase | Single-phase mains |
| Max operating pressure | 8 bar |
| Inlet / outlet | On request |
| Self-priming | Yes (suction lift up to 6 m with foot valve) |
| Duty cycle | On request |
| Fluid compatibility | Clean water up to 40 °C |
| Float valve | 15 mm brass, 6 bar max |
| Pump house | Grey plastic cover |
| Filter | 3-stage wall mount, 20 inch: 5 micron PP, GAC, nano silver CTO; max 50 °C, 5 bar |
| UV light | 55 W, 304 stainless steel casing, 2700 L/h, 1 inch ports |
| Warranty | Tank: 1 to 2 years, depending on the model |
| Net weight | 207.0 kg |
| Shipping weight | 210.0 kg |
| Dimensions | 2330 × 2330 × 2700 mm (tank) |
Description
Overview
This 10 000 L full house kit is a rotomoulded water tank sold with a 0.37 kW Econo peripheral pump, a 3-stage wall-mount filter and a 55 W UV light, so stored water is pumped, filtered and sterilised in one line. The 0.37 kW Econo peripheral pump gives up to 23 L/min at heads up to 30 m. That covers household taps, a garden hose and light stock watering, but not several outlets running at once.
Browse more in our tank and pump combo kits, or compare the 10 000 L Full House Tank Combo 0.37 kW peripheral pump and the tank and pump kit in another size.
Key features
- 10 000 L vertical LLDPE tank, rotomoulded, 10 300 L brim capacity
- 0.37 kW Econo peripheral pump: up to 23 L/min, head up to 30 m
- Grey plastic pump house cover keeps sun and rain off the pump
- Tank-to-pump pipe set with ball valves, so you can isolate the pump for service
- 15 mm brass float valve with orange ball, rated 6 bar maximum, for the fill line
- 3-stage wall-mount filter: 5 micron PP, GAC and nano silver CTO cartridges, 20 inch, with spanner
- 55 W UV light in a 304 stainless steel casing, 2700 L/h, 1 inch ports
Where it works
A 10 000 L tank suits Free State grain farms, Western Cape vineyards and orchards, mine villages in the Mpumalanga coal belt and municipal standby points. Pair it with a borehole header, a rainwater feed or a municipal supply for taps and a garden. Borehole and rainwater are the usual sources, and the filter and UV stage polishes them before the tap. We suggest a lab water test on any borehole supply before you treat it as drinking water.
What’s in the box
- Vertical LLDPE water tank (ships bare, no wrapping)
- 0.37 kW Econo peripheral pump
- 3-stage wall-mount filter with cartridges and spanner
- 55 W UV light, 304 stainless steel casing
- Grey plastic pump house cover
- Tank-to-pump pipe set with ball valves
- 15 mm brass float valve kit with orange ball
Delivery and warranty
Kamano delivers with its own trucks from Polokwane to all nine provinces in 1 to 3 days, and orders of R20,000 or more (VAT incl.) ship free. The 10000l water tank with pump filter and uv ships at 210.0 kg, and tanks travel unwrapped and may arrive in more than one piece. The tank carries a warranty of 1 to 2 years, depending on the model, confirmed on your quote. Ask us for the pump warranty terms.
Questions about this product
Is the 0.37 kW Econo pump enough for a house?
It is enough for a small house or cottage: up to 23 L/min at heads up to 30 m runs a couple of taps and a garden hose. It struggles when several outlets run together or with sprinklers. If you need more flow, step up to the monoblock versions of this 10 000 L kit.
How much is delivery to Graaff-Reinet for this tank kit?
Delivery is priced by total order weight. At 210.0 kg shipping weight it is over 100 kg, so delivery is quoted for your site. Orders of R20,000 or more (VAT incl.) ship free. Our own trucks run from Polokwane and normally reach Graaff-Reinet within 1 to 3 days. The tank travels bare, so tell us if access to your site is tight.
What base does a 10 000 L tank need?
A full 10 000 L tank holds about 10,000 kg of water, so it needs a level, compacted base, ideally a concrete slab or a built stand, with no sharp stones under it. Fill it only once it is in its final position. Do not move it when full.
Will the filter and UV light make borehole water drinkable?
The 5 micron, carbon and nano silver cartridges take out sediment, chlorine, taste and odour, and the 55 W UV light targets bacteria. Water quality varies by borehole, so have a sample tested first. Ask us about replacement cartridges and UV lamps for this kit.
Nationwide delivery from Polokwane
Delivered to all nine provinces in 1 to 3 days
We deliver the 10 000 L Full House Tank Combo, 0.37 kW Econo Pump with our own trucks to Johannesburg, Pretoria, Cape Town, Durban, Gqeberha, Bloemfontein, Polokwane, Mbombela, Mokopane, Stellenbosch, Mahikeng, Rustenburg, Welkom and Thohoyandou, and to farms, mines and sites in between. This item ships in the delivery on quotation (over 100 kg). Orders of R20,000 or more deliver free with code KH027.
Pairs well with
-
KMN-WATR-0332
5000 L Tank and 1.5 kW VSP Booster Pump System with VSD
- 5000 L
- 1.5 kW VSD
- 108 L/min
-
KMN-WATR-0275

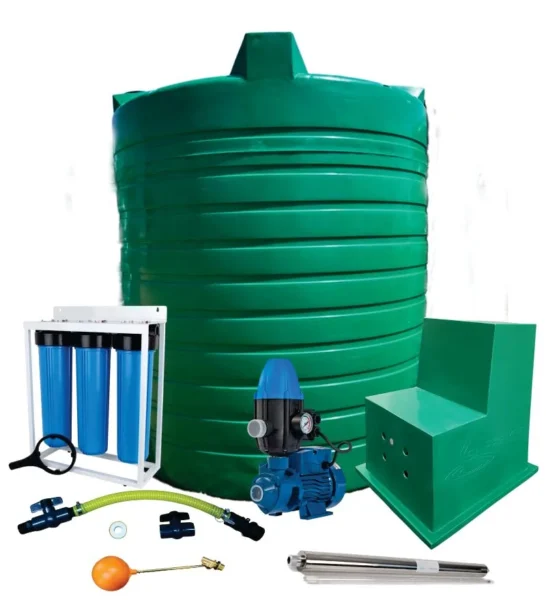

10 000 L Full House Tank Combo, 0.37 kW Peripheral Pump
- 10 000 L tank
- 0.37 kW
- 34 L/min
-
KMN-WATR-0333

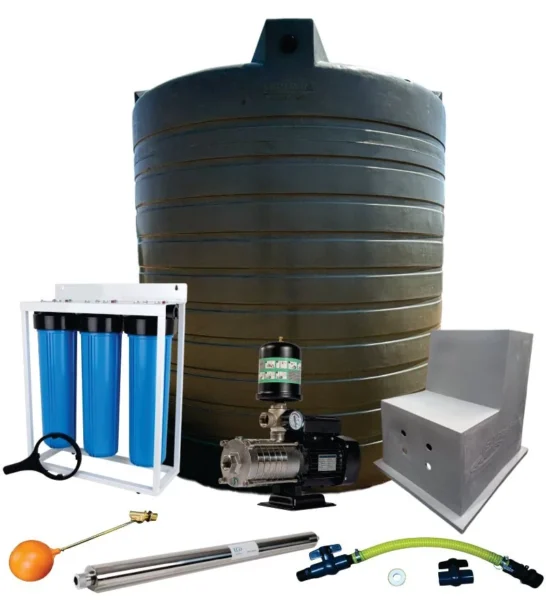

5000 L Tank and 0.75 kW Intelli VSD Booster Pump Combo
- 5000 L
- 0.75 kW VSD
- 83 L/min
-
KMN-WATR-0334

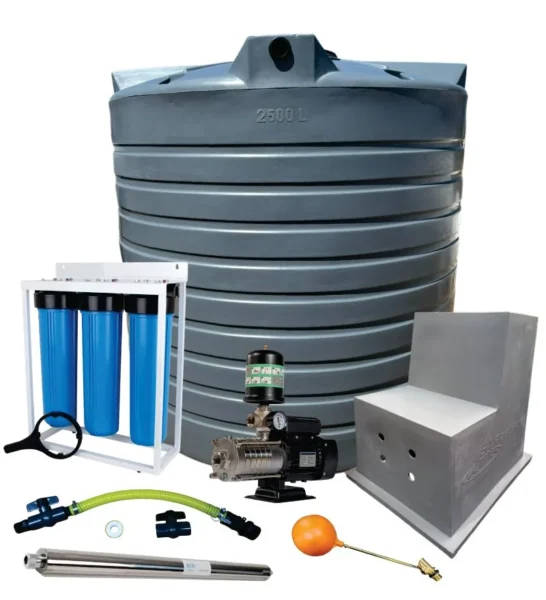

5000 L Tank and 1.5 kW Intelli VSD Booster Pump Combo
