5000 L Tank Combo, RUC-1100 1.1 kW Smart VSD Pump, UV and Filters

SKU KMN-WATR-0452

A 5000 L vertical tank with the RUC-1100 smart VSD pump at 10.5 m3/h and 60 m head, plus 55 W in-tank UV light and a triple 20-inch filter.

R20 158,00

RUC-1100 smart VSD pump: 1.1 kW, 10.5 m³/h, 60 m head
Solar compatible, automatic speed adjustment, WiFi app control
55 W submersible UV-C light and triple 20-inch filter frame
5000 L tank with cover, suction hose and float valve kits

Colours

Clear

Request Bulk Quote Ask on WhatsApp

Delivered by our own trucks in 1 to 3 days. R550 / R950 / R1,450 by order weight. FREE on orders of R20,000 or more with code KH027. Delivery details

Specifications

Tank capacity	5000 L
Tank material	Food-grade LLDPE, rotationally moulded, black inner liner
Tank size	Ø 1800 mm x 2150 mm high
Tank connections	40 mm inlet at top, 40 mm outlet at base
Tank colour	Green, Grey or Tan, by option
Pump model	RUC-1100 smart VSD booster
Power	1.1 kW
Voltage / phase	220 V single-phase
Max flow	10.5 m³/h
Max head	60 m
Control	Constant pressure, automatic speed adjustment, WiFi app
Pump protection	Dry run, over-current, overload, over and under voltage, abnormal pressure
Solar	Solar compatible
UV treatment	55 W submersible UV-C, in tank
Filtration	Triple 20-inch frame, 3 stage
Fluid compatibility	Clean water
Warranty	Tank: 1 to 2 years, depending on the model
Net weight	106 kg
Shipping weight	110 kg
Dimensions	1800 x 1800 x 2150 mm

Description

Overview

This 5000 L combo has the most powerful smart pump in the range. The RUC-1100 is a 1.1 kW variable-speed booster giving up to 10.5 m³/h and 60 m of head, with constant-pressure control and WiFi monitoring. It sits beside a vertical LLDPE tank 1800 mm across and 2150 mm high, a 55 W submersible UV-C light and a triple 20-inch filter frame. The pump speeds up and slows down with demand, so taps, irrigation zones and troughs can run together. It is the top 5000l tank with 1.1kw smart VSD pump, UV light and filters we list.

Key features

Maximum flow 10.5 m³/h, maximum head 60 m
Automatic speed adjustment based on water demand
Solar compatible, with WiFi control in the Smart Life app
Dry run, over-current, overload, voltage and abnormal pressure protection
55 W UV-C light inside the tank with fitting kit and safety glasses
Triple 20-inch filter frame removes sand, rust, mud and chlorine
Pump cover, suction hose kit and float valve kit supplied

Options

The tank comes in Green, Grey or Tan. The pump, UV light and filters do not change, and each colour is R 20,158 (VAT incl.).

Where it works

With 60 m of head and 175 L/min peak flow this suits livestock watering systems, garden and landscape irrigation, commercial buildings and farm houses. A Western Cape wine farm can run a dripper block and the cellar tap from it; a Free State dairy can serve the parlour. UV works best behind filtration, and heavy daily use may need extra UV capacity. For lower pressure, see the 1.1 kW UV and filter combo or the 1.5 kW Intelli VSD tank combo. Browse tank and pump combo kits.

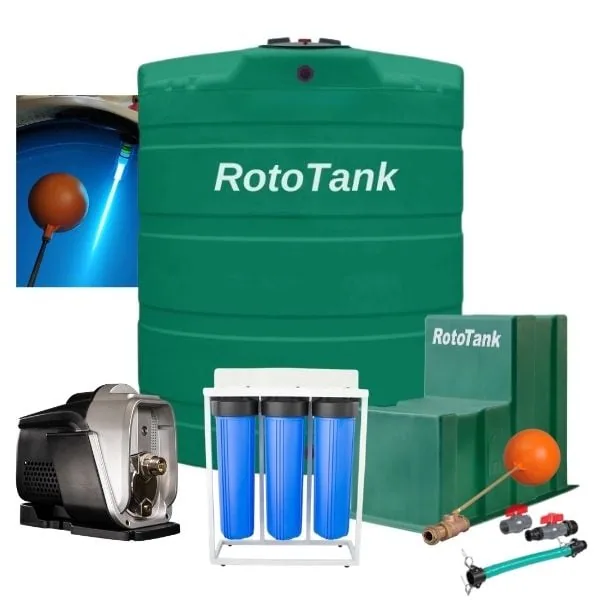

What’s in the box

1 x vertical 5000 L tank with 40 mm sealed connectors
1 x RUC-1100 smart VSD booster pump with cover
1 x 55 W submersible UV-C light with fitting kit
1 x triple 20-inch filter frame
1 x suction hose kit and 1 x float valve kit

Delivery and warranty

Kamano delivers with its own trucks from Polokwane to all nine provinces in 1 to 3 days, including Cape Town, Bloemfontein, Kimberley, Upington, Gqeberha and George. The kit ships at about 110 kg, which is over 100 kg, so delivery is on quotation. Orders of R20,000 or more (VAT incl.) are delivered free, and this kit qualifies. Tank warranty: 1 to 2 years, depending on the model. Ask us for the warranty terms on the pump, UV light and filters. Installation is not included.

Questions about this product

Can this pump run an irrigation system and the house together?

Yes. At up to 10.5 m³/h, about 175 L/min, and 60 m of head, with automatic speed adjustment, it can serve taps and irrigation zones at the same time. Add up the flow of your emitters and fixtures first, and keep the total under the pump's maximum.

Does it need a special electrical supply?

It runs on 220 V single-phase, but 1.1 kW draws more current than the smaller pumps, so check your supply and cable. The pump is solar compatible, though a solar setup must cover its peak load. Tell us your system and we will advise before you order.

How long to deliver to Bloemfontein?

Our own trucks reach Bloemfontein in 1 to 3 days from Polokwane. The kit ships at about 110 kg, which is over 100 kg, so the delivery cost is on quotation. Orders of R20,000 or more (VAT incl.) are delivered free, and this kit is above that.
