4SD2/47 4″ Borehole Pump, 3 kW, 333 m Max Head

Description

Overview

The 4SD2/47 is a 4-inch stainless steel multistage submersible pump that lifts water up to 333 m, with flows up to 3.3 m³/h (55 L/min), on a 3 kW motor. Buy this 3kw borehole pump as a complete set for your power supply or as a pump end only. It fits boreholes with an internal diameter of 100 mm or more.

To size it, add water depth, height to your tank and about 10% for pipe friction. The pump’s head at your flow must exceed that total. Browse the whole range in our borehole pumps category.

Key features

• Stainless steel pump body and shaft
• Shut-off head 333 m, 25 L/min at 302 m
• Pump end only option for replacing a worn wet end

Options

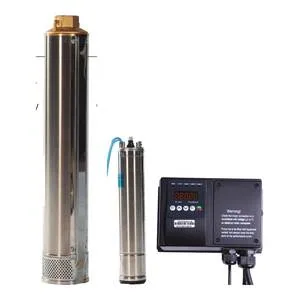

• 380V 3-phase set + Y1 controller: pump end, 3 kW 380 V three-phase oil-filled motor, Y1 digital protection controller. R 8,400.
• 525V 3-phase set + VSD: pump end, 3 kW 525 V three-phase oil-filled motor, variable speed drive (VSD). R 18,952.

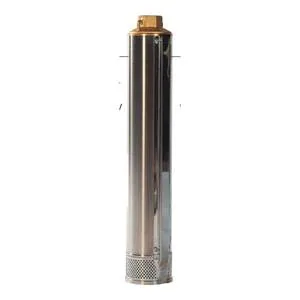

• Pump end only (no motor): wet end only, to replace a worn pump end on an existing 3 kW motor. R 2,344.

Prices include VAT. Cable, rope, delivery pipe and base plate are not included.

Where it works

A deep-borehole specialist for low-yield holes on Limpopo and North West farms, game lodges and remote mine camps where the water level is very deep. At 25 L/min it still delivers 302 m. See also the 4SD2/12 0.55 kW borehole pump, 85 m head or the 4SD2/21 1.1 kW borehole pump, 149 m head.

What’s in the box

• 4SD2/47 pump end
• Motor and controller as per your option

Delivery and warranty

Kamano delivers with its own trucks from Polokwane to all nine provinces in 1 to 3 days, including Pietermaritzburg, George, Upington, eMalahleni, Tzaneen and Mahikeng. Delivery is free on orders of R20,000 or more (VAT incl.). The heaviest option of this model ships at about 40 kg. A load this heavy falls in the R950 delivery band (VAT incl.). Ask us for the warranty terms on this model.
