4SD16/6 4 inch stainless steel borehole pump, 1.5 kW, 38 m head

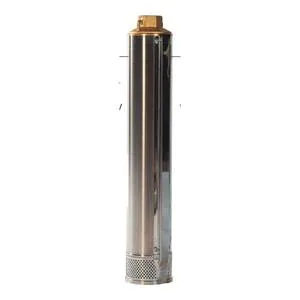

4SD16/6 multistage pump end, stainless steel body, up to 350 L/min

4SD16/6 borehole pump set with 1.5 kW motor and controller

4SD16/6 borehole pump side view showing stages and motor connection

4SD16/6 4″ Borehole Pump, 1.5 kW, 38 m Max Head

SKU KMN-BORE-0156

4SD16/6 4-inch stainless steel borehole pump, 1.5 kW, up to 38 m head, as a full set or pump end, delivered across South Africa.

Price range: R1 224,00 through R5 992,00

Lifts up to 38 m, up to 350 L/min
1.5 kW motor sets or pump end only
Stainless steel body and shaft, fits 100 mm boreholes and up
Sets from R 4,128, pump end R 1,224 (VAT incl.)

Configuration

Clear

Request Bulk Quote Ask on WhatsApp

Delivered by our own trucks in 1 to 3 days. R550 / R950 / R1,450 by order weight. FREE on orders of R20,000 or more with code KH027. Delivery details

Specifications

Model	4SD16/6, 4-inch stainless steel multistage
Flow rate	Up to 21 m³/h (350 L/min)
Max head / pressure	38 m shut-off head
Duty points	0 L/min at 38 m; 50 L/min at 36 m; 100 L/min at 33 m; 150 L/min at 30 m; 200 L/min at 26 m; 250 L/min at 22 m; 300 L/min at 18 m; 350 L/min at 13 m
Voltage / phase	220 V single-phase; 380 V three-phase, by option
Power	1.5 kW oil-filled motor on set options
Inlet / outlet	On request
Self-priming	N/A (submersible)
Duty cycle	On request
Fluid compatibility	Water from boreholes
Material	Stainless steel pump body and shaft
Minimum borehole diameter	100 mm internal
Controller	By option: MA analogue box, 20Y intelligent controller or Y1 digital protection controller
Net weight	19 kg
Shipping weight	23 kg
Dimensions	On request

Description

Overview

The 4SD16/6 is a 4-inch stainless steel multistage submersible pump that lifts water up to 38 m, with flows up to 21 m³/h (350 L/min), on a 1.5 kW motor. Buy this 1.5kw borehole pump as a complete set for your power supply or as a pump end only. It fits boreholes with an internal diameter of 100 mm or more.

To size it, add water depth, height to your tank and about 10% for pipe friction. The pump’s head at your flow must exceed that total. Browse the whole range in our borehole pumps category.

Key features

Stainless steel pump body and shaft
Shut-off head 38 m, 150 L/min at 30 m
Pump end only option for replacing a worn wet end

Options

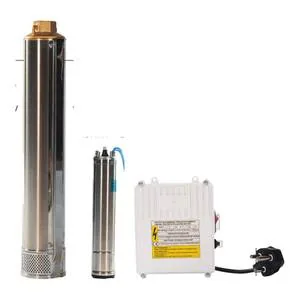

220V set + analogue control box: pump end, 1.5 kW 220 V single-phase oil-filled motor, MA analogue control box. R 4,128.

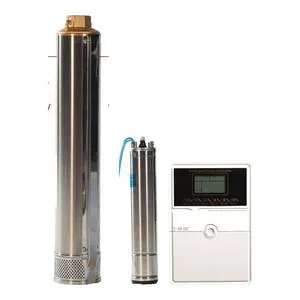

220V set + 20Y intelligent controller: pump end, 1.5 kW 220 V single-phase oil-filled motor, 20Y intelligent controller with dry-run protection. R 5,600.

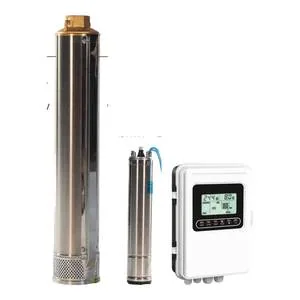

380V 3-phase set + Y1 controller: pump end, 1.5 kW 380 V three-phase oil-filled motor, Y1 digital protection controller. R 5,992.
Pump end only (no motor): wet end only, to replace a worn pump end on an existing 1.5 kW motor. R 1,224.

Prices include VAT. The 20Y adds dry-run protection, which we recommend for low-yield boreholes. Cable, rope, delivery pipe and base plate are not included.

Where it works

This is a low-lift, high-volume pump: topping up farm dams and reservoirs, filling tanks on Limpopo and Mpumalanga farms, and stock watering from shallow boreholes. At 150 L/min it still lifts 30 m. See also the 4SD16/7 1.5 kW borehole pump, 44 m head or the 4SD16/8 2.2 kW borehole pump, 51 m head.

What’s in the box

4SD16/6 pump end
Motor and controller as per your option

Delivery and warranty

Kamano delivers with its own trucks from Polokwane to all nine provinces in 1 to 3 days, including Mahikeng, Richards Bay, Welkom, Klerksdorp, Johannesburg and Pretoria. Delivery is free on orders of R20,000 or more (VAT incl.). The heaviest option of this model ships at about 23 kg. A load this heavy falls in the R550 delivery band (VAT incl.). Ask us for the warranty terms on this model.

Questions about this product

Which 4SD16/6 set suits my power supply?

The 4SD16/6 comes as a set for 220 V single-phase or 380 V three-phase, plus a pump end only for an existing 1.5 kW motor. Match the set to the power you have on site, single-phase or three-phase. Tell us your supply and we will confirm the right set before you pay.

How deep can I run the 4SD16/6 at 150 L/min?

At 150 L/min it delivers 30 m of head, and 38 m at zero flow. Add the depth to your water level, the height to your tank and about 10% for pipe friction, then make sure the head at your flow is higher than that. Send us your borehole details if you want us to check it.

Do you deliver the 4SD16/6 to Mahikeng and Richards Bay?

Yes. We deliver with our own trucks from Polokwane to Mahikeng, Richards Bay and every other province in 1 to 3 days. The heaviest option ships at about 23 kg, which falls in the R550 band. Orders of R20,000 or more (VAT incl.) ship free. Cable, rope, pipe and base plate are not included.
