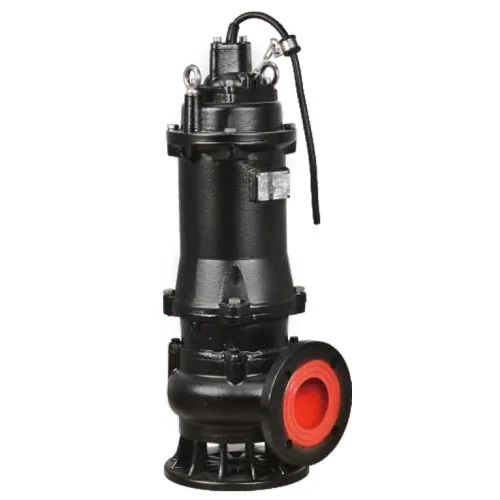

45 kW 380 V cast iron submersible raw sewage pump, channel impeller, 200B445

45 kW Raw Sewage Pump, 380 V, Cast Iron, Channel Impeller, 200B445

Name: 45 kW Raw Sewage Pump, 380 V, Cast Iron, Channel Impeller, 200B445
SKU: KMN-SUBM-0012
Price: 136792.00 ZAR
Availability: InStock

SKU KMN-SUBM-0012

A 45 kW cast iron submersible raw sewage pump with channel impeller and 43 m head, model 200B445, delivered by Kamano nationwide.

R136 792,00

45 kW, 380 V to 415 V three-phase
Maximum head 43 m
Up to 8000 L/min (480 m3/h) at 22 m
Cast iron channel impeller passes solids

Delivered by our own trucks in 1 to 3 days. R550 / R950 / R1,450 by order weight. FREE on orders of R20,000 or more with code KH027. Delivery details

Specifications

Model	200B445
Flow rate	Up to 8000 L/min (480 m3/h) at 22 m
Duty points	3000 L/min (180 m3/h) at 34 m, 5000 L/min at 30 m, 7000 L/min at 25 m
Max head / pressure	43 m
Voltage / phase	380 V to 415 V, three-phase
Power	45 kW
Inlet / outlet	On request
Self-priming	N/A (submersible)
Duty cycle	On request
Fluid compatibility	Raw sewage, effluent and liquids containing solids
Impeller	Cast iron, channel
Material	Cast iron
Starter panel	Not included, ask us for the right panel for your installation
Net weight	520 kg
Shipping weight	560 kg
Dimensions	1100 x 780 x 1250 mm

Description

Overview

The 200B445 is the biggest pump in this heavy-duty sewage series: a 45 kW cast iron submersible with a channel impeller that passes solids, for municipal and industrial sewage pump stations, large septic systems and effluent handling. It lifts to 43 m at shut-off and delivers 3,000 L/min (180 m3/h) at 34 m, 5,000 L/min (300 m3/h) at 30 m and 8,000 L/min (480 m3/h) at 22 m, on 380 V to 415 V three-phase power. Pumps of this size are often supplied to order, so contact us to confirm stock, delivery time and the right starter panel.

Key features

Highest head in the 200B range, 43 m
Heavy-duty cast iron construction
Channel impeller that passes solids
45 kW three-phase motor, 380 V to 415 V
Published duty points up to 8000 L/min
Suited to pump stations, large septic systems and effluent handling

Where it works

Specify it for long rising mains and high-lift pump stations in Johannesburg, Tshwane and Cape Town, for mine and quarry effluent in Mpumalanga and Limpopo, and for large food-processing and abattoir plants in the Free State. A 45 kW motor needs a proper starter panel, and we can advise on one. Compare the 37 kW raw sewage pump and the 18.5 kW raw sewage pump. Browse our submersible pumps.

What’s in the box

45 kW submersible raw sewage pump, model 200B445

Delivery and warranty

Kamano delivers with its own trucks from Polokwane to all nine provinces in 1 to 3 days, with regular runs to Cape Town, Johannesburg, Pretoria, Durban, Polokwane, Kimberley and eMalahleni. Fees are set by total order weight: up to 30 kg R550, 30 to 60 kg R950, 60 to 100 kg R1,450, and over 100 kg on quotation. At 560 kg shipping weight, delivery of this pump is on quotation. Orders of R20,000 or more (VAT incl.) ship free. Ask us for the warranty terms on this model.

Questions about this product

Is this pump in stock?

Large sewage pumps like the 200B445 are often supplied to order. Contact us before you buy to confirm stock and delivery time, and to choose the right starter panel for your installation.

How much head does it give at 5000 L/min?

About 30 m at 5,000 L/min (300 m3/h), and 25 m at 7,000 L/min. Maximum head is 43 m at zero flow. Send us your flow and total head including friction, and we will check the pump sits well on the curve.

Do you deliver this pump to Cape Town?

Yes. Kamano delivers with its own trucks from Polokwane to Cape Town and the rest of South Africa in 1 to 3 days. This pump ships at 560 kg, so delivery is on quotation. Orders of R20,000 or more (VAT incl.) ship free.
