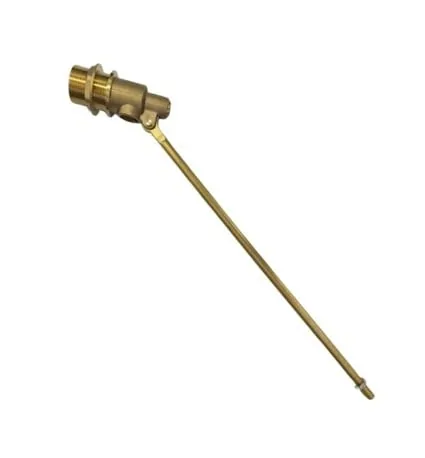

40 mm Brass Float Valve with Arm, 200 to 1600 kPa

Description

Overview

The 40 mm brass float valve with arm (code 33700/040) automatically controls the water level in storage tanks, reservoirs and livestock troughs. As the level rises the float closes the valve, and when it drops the valve reopens, so the tank stays topped up without overflowing.

Brass gives it the strength to cope with high-pressure supply lines, with a recommended operating range of 200 kPa to 1600 kPa and a nominal pressure of 1.6 MPa. That makes it a sound choice for farm reservoirs fed from a pump. Pair it with barrel insert nipples on poly pipe, or see the wider pipe fittings range.

Key features

• Brass construction, corrosion resistant and durable
• 40 mm size
• Recommended operating pressure 200 to 1600 kPa
• Nominal pressure 1.6 MPa
• Automatic open and close as the water level changes
• Low-maintenance and reliable

Where it works

Fit it in the header tank of a Limpopo farm, on livestock drinking troughs in the Free State, in irrigation storage dams in the Western Cape or in commercial and industrial water tanks in Gauteng. It stops overflow and wasted water, particularly where a pump keeps feeding the tank, for example through hose lines joined with camlock couplings.

What’s in the box

• 1 x 40 mm brass float valve with arm

Delivery and warranty

Kamano delivers with its own trucks from Polokwane to all nine provinces in 1 to 3 days, including Johannesburg, Pretoria, Polokwane, Upington, Tzaneen and Pietermaritzburg. Shipping weight is about 1.1 kg. Delivery is charged by total order weight: up to 30 kg R550, 30 to 60 kg R950, 60 to 100 kg R1,450, and over 100 kg on quotation. Orders of R20,000 or more (VAT incl.) ship free. Ask us for the warranty terms on this model.
