360° Nozzle Hose Swivel, 3/4″ BSP Male x Female, Viton Seals

Description

Overview

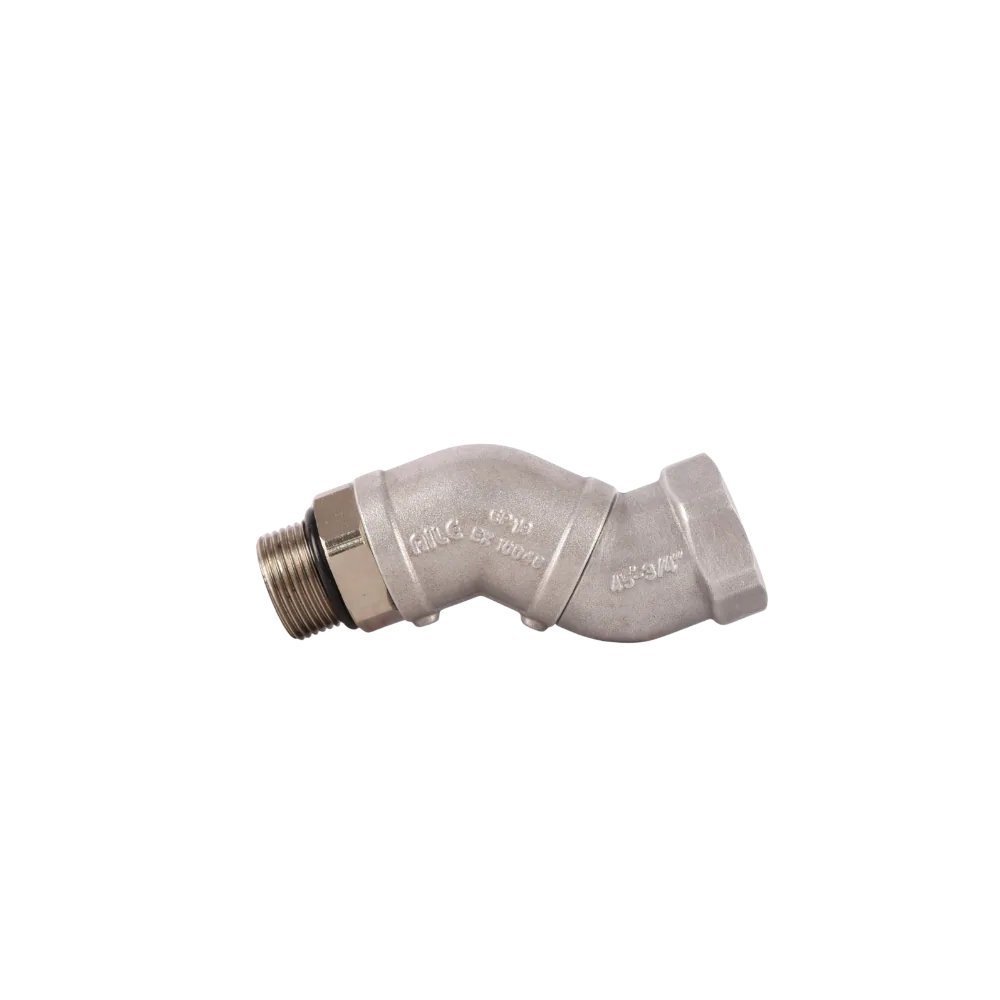

This 360 nozzle swivel is a fully rotating joint that fits between a 3/4″ delivery hose and a fuel nozzle. The body turns through a full circle, so the nozzle can be pointed any way without the hose twisting or kinking. Its flow path is shaped for smooth, laminar flow, which keeps pressure loss low.

It has 3/4″ BSP threads, the common local standard, with male on one end and female on the other. A 1″ BSP version is also available; ask us for it. For a simpler fixed-axis swivel, see the full-size 3/4″ x 3/4″ swivel or the full-size 3/4″ x 1″ reducing swivel.

Key features

• Full 360° rotation
• Laminar flow path for low pressure loss
• Aluminium-zinc alloy body
• Viton O-ring seals
• 3/4″ BSP male x female, 1″ on request

Where it works

Fit a 360 nozzle swivel on busy forecourt dispensers, fleet depot pumps and farm tanks where nozzles are used dozens of times a shift. It is especially useful where vehicles pull up on either side of a pump island, common at transport yards in Gauteng and at sugar mills in KZN. Because the hose no longer winds up, it also lasts longer before the cover cracks near the nozzle. Find seals, spouts and other fuel nozzle spares in the same range.

What’s in the box

• 1 × 360° nozzle hose swivel, 3/4″ BSP

Delivery and warranty

Kamano delivers with its own trucks from Polokwane to all nine provinces, normally in 1 to 3 days. This swivel ships at 0.5 kg, so on its own it sits in the up-to-30 kg band at R550. Fees go by total order weight, so a part this light rarely moves a bigger order into a higher band, and orders of R20,000 or more (VAT incl.) travel free. Tell us your nearest town when you order and we will confirm the delivery day. Ask us for the warranty terms on this model.
